Gewiss at LED Controls
LED Controls is proud to supply robust, standards-compliant enclosure systems and switchgear from Gewiss. We stock Gewiss enclosures, isolators and interlocked sockets with fast UK delivery and technical support to make even the most demanding applications run smoothly.
Why buy Gewiss from LED Controls
- Authorised UK supplier with genuine stock and competitive pricing
- Enclosures and isolators designed for reliable protection and quick installation
- Accessories to complete builds, from mounting plates to gland entry covers
- Datasheets on request and responsive after sales support
- Next day delivery available on many lines
Build safe, serviceable panels with IP rated enclosures, lockable isolators and proven accessories.
Gewiss product categories
Electrical enclosures: panel boxes
Thermoplastic and metal boxes in multiple sizes, IP56 and IP66 options for reliable protection and easy installation.
Polyester IP66 enclosures
Rugged polyester cabinets with IP66, multiple cable entry options and corrosion resistance for outdoor or industrial use.
Enclosed isolator switches
GW70 series 4-pole isolators in 16 A to 160 A, lockable with IK08 impact resistance and IP66. IP69 protection.
Switched interlocked sockets
2P+E, 3P+E, 3P+N+E variants in 16 A and 32 A. IP44 or IP55 protection for safe, easy power distribution.
Back plates: mounting accessories
Steel back plates, mounting plates and entry covers to finish installs neatly and securely inside Gewiss enclosures.
Popular Gewiss Products
A brief history of Gewiss
- 1970s: Origins: Early focus on modular electrical systems and robust installation products in Italy.
- 1980s–1990s: Expansion: Broader enclosure families, distribution accessories and industrial plugs & sockets.
- 2000s: Protection first: IP66/IP67 cabinets, enclosed isolators and interlocked outlets for demanding environments.
- 2010s: Standards & approvals: Wider compliance across IEC/EN markets and industrial applications.
- 2020s: Local availability: UK stock and technical support via authorised partners for rapid delivery (LED Controls).
Gewiss has developed enclosure systems, industrial power and protection equipment for decades, supporting electricians, panel builders and OEMs worldwide.
Today, Gewiss products help deliver safe, serviceable installations across manufacturing, utilities and building services.
See Gewiss in action
Learn more about Gewiss' mission of innovation, excellence, and sustainability in this video.
Gewiss Frequently Asked Questions
What is the difference between Gewiss thermoplastic and polyester IP66 enclosures
Thermoplastic boxes are a lightweight general purpose choice for indoor or sheltered sites. Polyester IP66 enclosures add higher mechanical strength and environmental resistance for harsher or outdoor locations. Always check the datasheet for exact ratings.

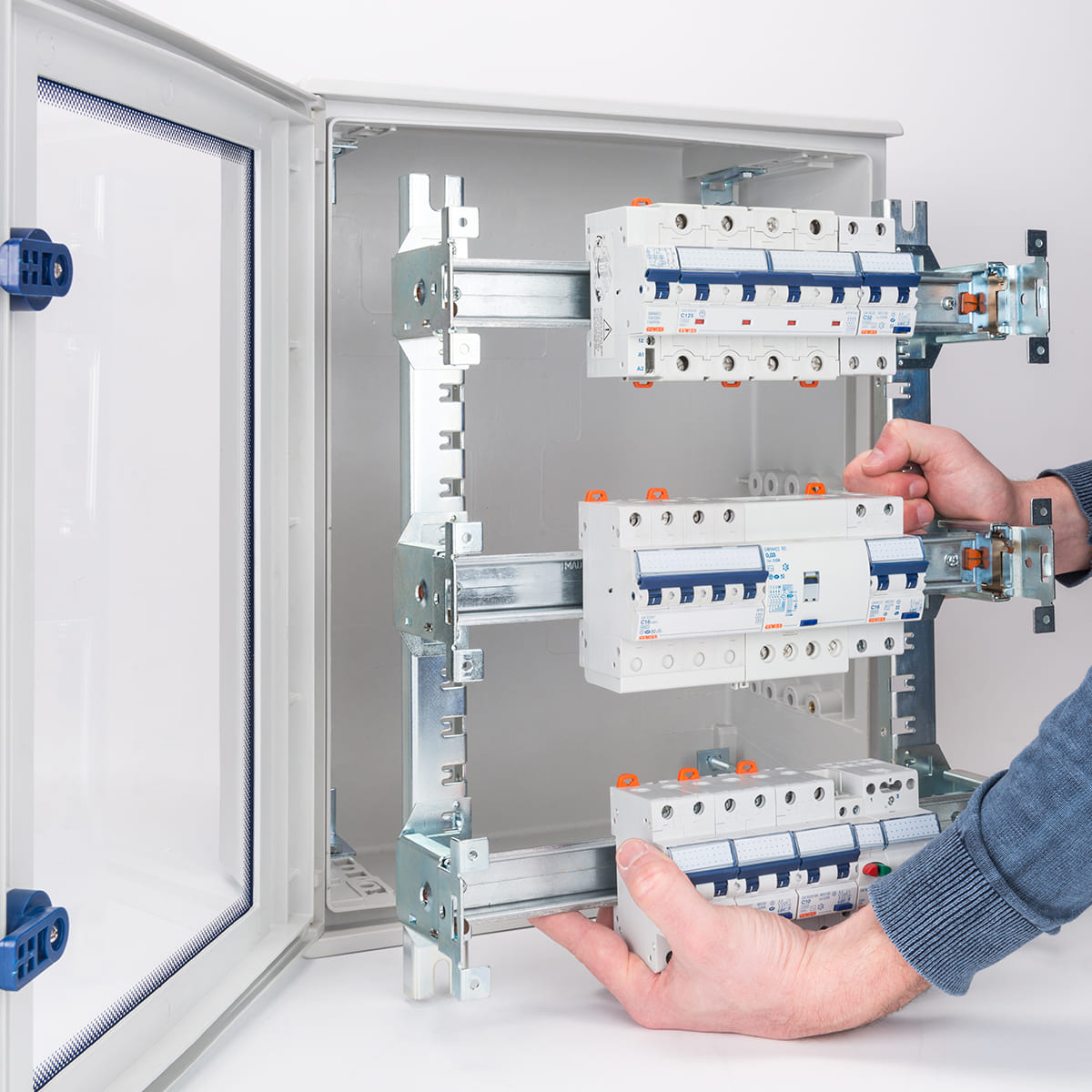

Which Gewiss enclosure size fits my DIN rail and back plate layout
Measure device widths, wiring bend radius and gland space, then select an enclosure with sufficient internal clearance and a compatible back plate. Leave room for heat dissipation and future expansion.
Are Gewiss GW46001F polyester enclosures suitable for outdoor use in the UK
GW46001F is IP66 and designed for demanding environments. For outdoor use confirm UV stability, temperature limits and mounting guidance in the product datasheet.
What IP rating do I need for a Gewiss enclosure in a washdown area
IP66 is a common minimum for washdown. In high pressure or direct jet areas you may need higher protection. Validate against your hygiene and site standards.
How do I choose a Gewiss enclosed isolator switch rating from 16 A to 160 A
Base the choice on load current, utilisation category and number of poles. Allow headroom for duty and ambient conditions. The GW70 series covers common ratings with four pole options.
What is the duty rating of Gewiss GW70 enclosed isolators for motor isolation
Check the utilisation category and kW tables in the datasheet for direct on line motor isolation. Select a rating that meets or exceeds the motor duty and site rules.
Can Gewiss GW70436P 32 A isolators be padlocked in the OFF position
Yes. GW70 enclosed isolators include a lockable handle so you can secure the switch in the OFF position during maintenance. See the product page for lock details.
What is the difference between 3 pole and 4 pole Gewiss enclosed isolators
Three pole models isolate three phase circuits. Four pole models isolate three phase plus neutral. Choose four pole where neutral isolation is required by design or standard.
Do Gewiss switched interlocked sockets meet UK industrial plug standards
Models are designed to the relevant IEC and EN standards. Check each product page for exact approvals and ratings before specification.
Which Gewiss interlocked socket should I use for a 32 A 230 V circuit
Choose a 32 A 2P+E interlocked model rated 230 V with an IP rating suitable for the location. Confirm pin configuration and mounting style to match your install.
What does IP55 vs IP44 mean on Gewiss interlocked sockets like GW66437
Both provide protection against dust and water. IP55 offers higher protection against water jets compared to IP44 splash protection. Select according to the environment.
Do Gewiss enclosures include back plates or do I need to order GW4461 series plates
Some enclosures require a separate steel back plate. If not included, select a compatible GW4461 series plate or the accessory listed on the product page.
How do I add cable entries and gland plates to Gewiss panel boxes
Use the enclosure knockouts or dedicated entry covers and gland plates. Match gland sizes to cable diameters and maintain the stated IP rating during installation.
Are Gewiss enclosures compliant with IEC and EN standards for export panels
Yes. Ranges are designed to the relevant IEC and EN standards. Always verify the specific approvals for your chosen model in the datasheet.
Can I replace a damaged door or hinge on a Gewiss enclosure
Replacement parts may be available. Share the MPN and enclosure size so we can advise on compatible spares or a complete enclosure swap if required.
What accessories are available for Gewiss enclosures such as mounting plates and entry covers
Typical accessories include steel back plates, mounting plates, DIN rail kits, entry covers and gland plates. See the accessory list on each enclosure page.
What is the impact rating on Gewiss enclosed isolators and why does IK08 matter
IK08 indicates resistance to 5 joule impacts. It helps ensure durability in industrial areas. Confirm the IK rating for the exact model you select.
Do Gewiss enclosures have UV resistance for outdoor installations
Polyester options generally offer better UV performance. For thermoplastic models confirm UV stability and outdoor suitability in the datasheet.
How quickly can LED Controls deliver Gewiss enclosures and isolators in the UK
Many items are available for next working day delivery subject to stock. Lead times are confirmed at checkout or on enquiry.
Do you provide datasheets and wiring notes for GW44221, GW70436P and GW66437
Yes. Share the MPN and we will send the matching datasheet and any installation notes. We can also help with selection.
Can Gewiss isolators be used as emergency stop isolators if labelled correctly
Some isolators can function as local isolation for emergency use when applied and labelled correctly. Verify the standard and device suitability for your application.
What clearances should I allow inside a Gewiss enclosure for heat dissipation
Leave space around heat generating devices, follow manufacturer spacing guidance and consider ventilation or heat management where needed.
Which cable gland sizes match common Gewiss enclosure knockouts
Match gland thread size and cable diameter to the knockout details in the datasheet. Use approved glands to maintain the IP rating.
Do you offer bulk pricing on Gewiss back plates and mounting accessories
Yes. Share quantities and MPNs and we will provide a quotation with pricing and availability.
