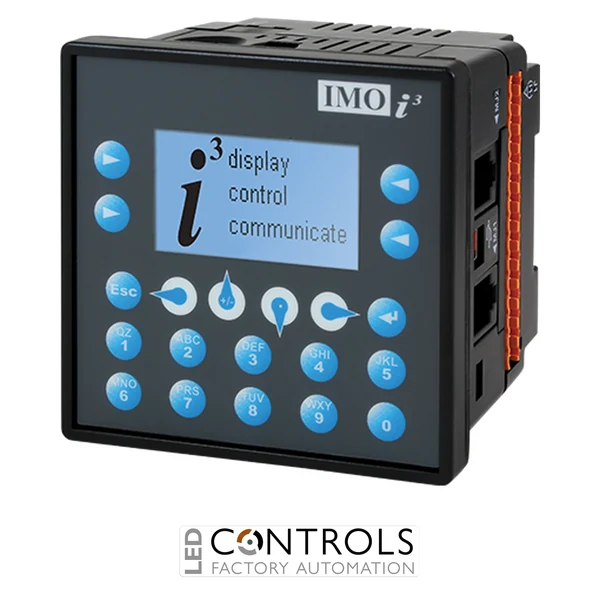

Why Choose the IMO I3AX12X/10D03-SEHF i3AX Intelligent Control Station?
The IMO I3AX12X/10D03-SEHF is a compact and versatile all-in-one PLC, HMI and I/O controller designed for industrial machinery, process control and automation applications. As part of the IMO i3AX Intelligent Control Station series, it integrates programmable logic control, operator interface, onboard I/O and industrial communications into a single unit, helping reduce panel space, wiring and overall system complexity.
The controller features a 2.2-inch 128 × 64 monochrome LCD display with addressable function keys for local machine operation and status monitoring. Integrated Ethernet, CAN and dual configurable RS-232 / RS-485 serial communications provide flexible connectivity with automation equipment, while MicroSD™ storage, a real-time clock and support for remote I/O communication extend its capabilities for modern machine control applications.
With 12 digital inputs, 6 relay outputs and 4 analogue inputs, the I3AX12X/10D03-SEHF provides substantial onboard I/O for compact automation systems without requiring separate I/O modules for many applications. It operates from a 10–30 V DC supply and provides IP65 (NEMA 4X) front protection, making it suitable for installation in industrial control panels and machinery.
Key Advantages
- Combines PLC, HMI and integrated I/O functionality in one compact industrial controller.
- 12 digital inputs provide connectivity for sensors, switches and machine signals.
- 6 relay outputs provide flexible switching for industrial loads and control circuits.
- 4 analogue inputs enable monitoring of analogue process and instrumentation signals.
- Integrated Ethernet, CAN and dual serial communications simplify connection to industrial automation networks.
- MicroSD™ data storage supports application and data management requirements.
- Integrated real-time clock enables time-based control and logging functions.
- IP65 (NEMA 4X) front protection supports operation in demanding industrial environments.
Key Features
- IMO i3AX Intelligent Control Station series.
- 2.2-inch monochrome LCD display.
- 128 × 64 pixel display resolution.
- Addressable function keys for local operator control.
- 12 digital inputs.
- 6 relay digital outputs.
- 4 analogue inputs with 12-bit resolution.
- 4 high-speed counter inputs.
- 1 integrated Ethernet port.
- 1 CAN communication port.
- 2 configurable RS-232 / RS-485 serial ports.
- Integrated MicroSD™ data storage.
- Integrated real-time clock.
- 256 kB program RAM and 16 MB graphical memory.
- Remote I/O communication capability.
- Supports i3RMI webserver functionality.
- 10–30 V DC power supply.
- IP65 (NEMA 4X) front protection.
- Free IMO configuration software for programming and commissioning.
Integrated PLC and HMI Control for Industrial Automation
All-in-one controllers such as the IMO i3AX combine functions traditionally provided by separate PLC, operator interface and I/O devices. Integrating these functions within one control station can reduce component count, simplify machine wiring and provide operators with direct access to machine status, process information and control functions.
The I3AX12X/10D03-SEHF combines discrete and analogue I/O with relay outputs and extensive communication capabilities. Its integrated Ethernet, CAN and serial interfaces make it suitable for connecting drives, remote I/O, instrumentation and other compatible industrial equipment, while MicroSD™ storage and the real-time clock support data handling and time-dependent automation functions.
Typical Applications
- Industrial machinery and machine control systems.
- Packaging and production equipment.
- Conveyors and material handling systems.
- Pumps, fans and process equipment.
- Automated production cells.
- OEM machinery and control panels.
- Process monitoring and control applications.
- Remote I/O and networked automation systems.
