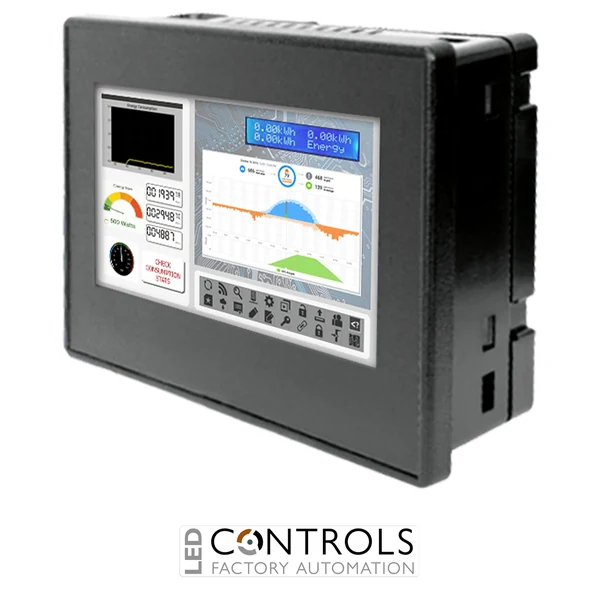

Why Choose the IMO I3CL12Y/10D12-SEHF i3C Lite PLC/HMI Controller?
The IMO I3CL12Y/10D12-SEHF is an all-in-one PLC/HMI/I/O controller from the IMO i3C Lite series. It combines programmable machine control with a colour operator interface, bringing automation logic and local interaction together in one device.
An integrated controller helps simplify applications that would otherwise require separate logic and display hardware. Engineers can coordinate machine sequences with operator screens, allowing users to monitor conditions, enter settings and respond to programmed status messages.
This model features 12 digital inputs, 6 relay outputs, 4 analogue inputs supporting mA/RTD signals and 2 analogue current outputs. A 4.3 inch colour LCD provides the local interface, and the controller uses a 24 V DC supply.
Key Advantages
- Combines PLC logic, operator interaction and integrated I/O.
- Colour screens help distinguish operating states and process information.
- Relay outputs provide switching interfaces for compatible control circuits.
- Analogue measurement supports applications involving process transmitters and temperature sensors.
- Current outputs provide adjustable references to compatible receiving equipment.
- Integrated hardware can reduce connections between separate control and display devices.
Key Features
- IMO i3C Lite controller platform.
- 4.3 inch colour touchscreen.
- 480 × 272 pixel display resolution.
- Four virtual addressable function keys.
- Integrated digital inputs and relay outputs.
- Analogue input capability for current signals and compatible RTDs.
- Analogue current outputs for process interfacing.
- Programmable control and operator visualisation in one unit.
Integrated Control for Machinery and Process Monitoring
A PLC/HMI controller reads connected signals, executes the application programme and updates its outputs while presenting information to the operator. For example, a programmed process can compare a measured value with an operator-entered setting and command an appropriate response through connected equipment.
Application design must match each sensor and receiving device to the relevant input or output. Relay circuits require suitable load ratings, while analogue connections require matching signal configuration. The model’s I/O arrangement is identified in the IMO product specification, with display features described in the i3C Lite series information.
Typical Applications
- Small machine sequencing with local operator controls.
- Temperature monitoring using compatible RTD sensors.
- Pump and tank systems with suitable process transmitters.
- Packaging equipment requiring sensor-based control.
- Process equipment using analogue current references.
- OEM machinery combining control logic and visualisation.
