Why Choose the IMO I3CL12Y/10D14-SEHF i3C Lite PLC/HMI Controller?

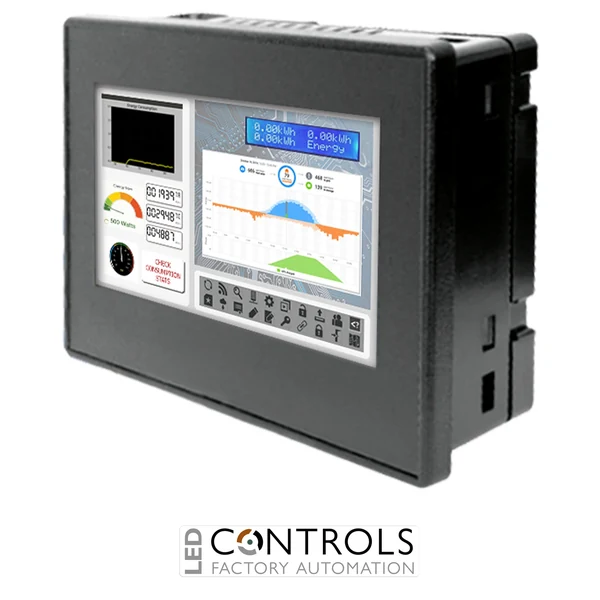

The IMO I3CL12Y/10D14-SEHF is an integrated PLC/HMI/I/O controller designed for machine automation and process monitoring. Part of the IMO i3C Lite series, it combines programmable logic, an operator interface and local signal connections in one device.
Combining control and visualisation helps simplify panel design and reduces the connections needed between separate PLC and display hardware. Engineers can develop machine sequences alongside operator screens, providing access to operating information, adjustable settings and programmed messages.
This model provides 12 digital inputs, 12 digital outputs, 4 analogue inputs supporting mA/RTD signals and 2 analogue current outputs. Its combination of discrete and analogue I/O supports applications that require both sequence control and process feedback.
Key Advantages
- Combines machine logic, operator interaction and I/O in one controller.
- Colour visualisation helps operators distinguish machine states and process values.
- Integrated digital connections suit sensor-based machine sequencing.
- Analogue measurement supports compatible process transmitters and temperature sensors.
- Current outputs provide adjustable signals to compatible receiving equipment.
- One integrated platform can simplify the coordination of control logic and operator screens.
Key Features
- IMO i3C Lite automation platform.
- 4.3 inch colour LCD touchscreen.
- 480 × 272 pixel display resolution.
- Four virtual addressable function keys.
- Integrated digital and analogue I/O.
- RTD measurement capability with suitable input configuration.
- Analogue current outputs for process interfacing.
- Local operator access to programmed controls and information.
Integrated Control for Industrial Machinery
A PLC/HMI controller processes input signals, executes the application programme and updates outputs while displaying information to the operator. A machine sequence can use sensor feedback to determine its next action, while an operator screen shows progress or provides access to authorised settings.
For process applications, analogue measurements can inform programmed control decisions and current outputs can supply references to compatible equipment. Each connection must match the signal type and electrical requirements of the connected device. Configuration information is available in the IMO product listing and the i3C Lite series specification.
Typical Applications
- Small machine sequencing with local operator controls.
- Packaging equipment using digital sensor feedback.
- Temperature monitoring with compatible RTD sensors.
- Pump and tank systems using suitable process transmitters.
- Process equipment requiring analogue current references.
- OEM machinery combining control and operator visualisation.
