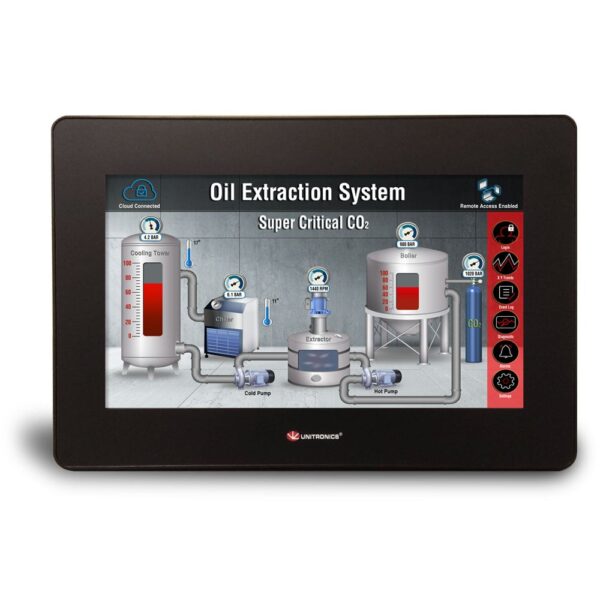

Unitronics US10-C5-T42 all-in-one PLC and HMI controller featuring a 10.1-inch touchscreen, UniCloud connectivity, 24 digital inputs, 2 analogue inputs and 16 transistor outputs.
£1,526.00
The Unitronics US10-C5-T42 is a powerful all-in-one PLC and HMI controller that combines advanced machine control, operator visualisation and extensive built-in I/O within a single industrial automation platform. As part of the innovative Unitronics UniStream Built-in series, it is designed for OEM machine builders, automation engineers and industrial system integrators seeking a scalable and cloud-connected control solution.
By integrating a programmable logic controller, 10.1-inch touchscreen HMI and comprehensive onboard I/O into one compact device, the US10-C5-T42 reduces panel complexity, minimises wiring requirements and simplifies system commissioning. Built-in UniCloud functionality enables remote monitoring, diagnostics and Industrial IoT connectivity without requiring additional communication hardware.
Featuring a 10.1-inch WSVGA touchscreen display, 24 digital inputs, 2 analogue inputs and 16 transistor outputs, the US10-C5-T42 is ideally suited to machine automation, process control, material handling systems and smart manufacturing applications. High-speed counter inputs and PWM outputs provide additional flexibility for motion control and pulse-based applications.
The US10-C5-T42 combines PLC processing power, touchscreen visualisation and extensive onboard I/O within a single hardware platform. This integrated architecture reduces component count, simplifies panel design and shortens commissioning times while providing the flexibility required for modern industrial automation projects.
With high-speed counter inputs, PWM outputs, integrated cloud connectivity and support for multiple industrial communication protocols, the controller is ideally suited for Industry 4.0 applications requiring remote access, diagnostics, data logging and advanced machine control.
| IP Rating | IP66 |
|---|---|
| Series | UniStream Built-in |
| Product type | PLC + HMI controller |
| Display size | 10.1 inch |
| Display resolution | 1024 × 600 pixels |
| Display type | TFT LCD touchscreen |
| Touch technology | Resistive touchscreen |
| Colour support | 65,536 colours |
| Memory | 512 MB RAM |
| System storage | 3 GB ROM |
| User storage | 1 GB ROM |
| Digital inputs | 24 x 24 V DC sink/source |
| High-speed inputs | 8 x HSC inputs up to 90 kHz |
| Analogue inputs | 2 x 0-10 V / 0-20 mA / 4-20 mA, 12-bit |
| Digital outputs | 16 x PNP transistor outputs |
| PWM outputs | 2 x high-speed PWM outputs |
| Supply voltage | 20.4 to 28.8 V DC |
| Nominal voltage | 24 V DC |
| Communications | Ethernet/IP, Modbus TCP, KNX, RS-232, RS-485, BACnet, CANopen, UniCAN, SNMP |
| Protection rating | IP66 / NEMA 4X front |
| Mounting type | Flush panel mounting |
| I/O expansion | Up to 2,048 I/O points |
| Operating temperature | -20°C to +55°C |
| Dimensions (H × W × D) | Approx. 193.7 × 282.8 × 96.6 mm |
| Weight | Approx. 1.08 kg |
The US10-C5-T42 is an all-in-one PLC and HMI controller designed for industrial automation, machine control, process monitoring and smart manufacturing applications.
The controller includes 24 digital inputs, 2 analogue inputs and 16 PNP transistor outputs, including two PWM high-speed outputs.
Yes. The controller includes built-in UniCloud connectivity for remote monitoring, diagnostics and Industrial IoT integration.
The controller includes a 10.1-inch TFT touchscreen with a resolution of 1024 × 600 pixels.
Yes. The UniStream platform supports local and remote I/O expansion, enabling systems to scale up to approximately 2,048 I/O points.
Unitronics UniStream controllers are widely used throughout manufacturing, infrastructure and industrial automation sectors where integrated control, visualisation, communications and cloud connectivity are required within a single automation platform.
