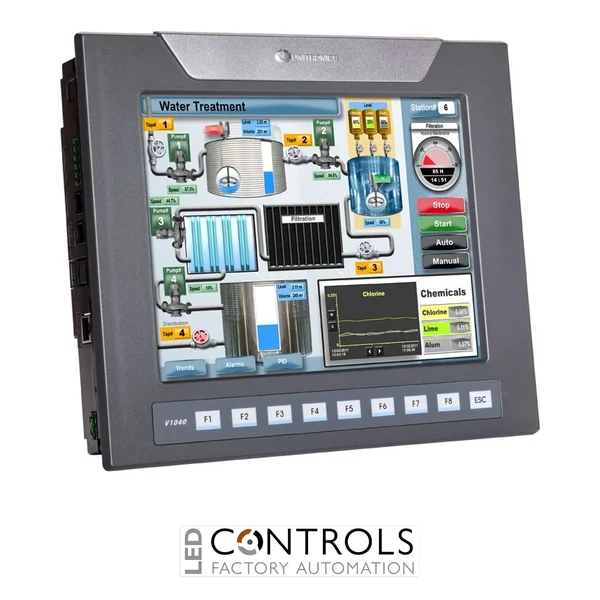

Unitronics V1040-T20B Vision series programmable logic controller with integrated 10.4 inch colour touchscreen HMI, CANbus communication, serial connectivity and expandable I/O capabilities.
£1,253.00
The Unitronics V1040-T20B is a powerful all-in-one Programmable Logic Controller (PLC) with integrated Human Machine Interface (HMI), combining advanced control functionality with a large 10.4-inch colour touchscreen. As part of the renowned Unitronics Vision™ series, it provides machine builders, OEMs and automation engineers with a cost-effective solution that integrates control, visualisation and communication capabilities into a single device.
The V1040-T20B features a high-resolution 800 × 600 SVGA TFT touchscreen display with 65,536 colours and nine programmable function keys, delivering intuitive machine operation and clear process visualisation. With built-in communication ports, expandable I/O capability and advanced automation features, it is ideal for demanding industrial control applications.
Designed to support up to 1000 I/O points through local and remote expansion modules, the controller offers exceptional flexibility for both standalone machines and large automation systems. Its powerful memory architecture, integrated data logging and extensive communication options make it suitable for complex industrial processes and advanced machine control applications.
The V1040-T20B combines sophisticated PLC control with a large operator interface, enabling engineers to create complete automation solutions within a single platform. Programming is carried out using Unitronics' VisiLogic software, allowing ladder logic and HMI development within the same environment.
Built-in features include recipe management, alarm handling, data logging, trending, multilingual displays and PID control. The controller also supports communication technologies such as CANbus, Ethernet expansion, MODBUS, CANopen and remote access tools, providing excellent flexibility for industrial automation projects.
| Voltage | 24 V |
|---|---|
| IP Rating | IP65 |
| Series | Vision™ |
| Product type | PLC with integrated HMI |
| Display size | 10.4 inch TFT touchscreen |
| Resolution | 800 × 600 SVGA |
| Display colours | 65,536 (16-bit) |
| Touchscreen type | Resistive analogue touchscreen |
| Function keys | 9 programmable keys |
| Supply voltage | 12 / 24 V DC |
| Operating voltage range | 10.2 to 28.8 V DC |
| Communication ports | 2 × isolated RS232/RS485 |
| CANbus | Built-in isolated CANbus port |
| USB | Mini-B programming port |
| Application memory | 2 MB |
| Image memory | 80 MB |
| Font memory | 1 MB |
| Data tables | 120 KB dynamic RAM plus up to 256 KB Flash |
| Expansion capability | Up to 1000 I/O points |
| Protection rating | IP65 front panel mounted |
The V1040-T20B is an all-in-one PLC and HMI controller used for machine automation, process control and industrial monitoring applications.
The controller features a 10.4-inch TFT colour touchscreen with an 800 × 600 SVGA resolution.
The unit includes two isolated RS232/RS485 ports, an isolated CANbus port and a Mini-USB programming port.
Yes. The V1040-T20B supports local and remote expansion modules, allowing systems to scale up to approximately 1000 I/O points.
Yes. The controller supports data logging, recipes, trends and backups via MicroSD card storage.
Unitronics Vision controllers are widely used throughout industrial automation for combining powerful PLC functionality, intuitive HMI operation and flexible communications within a single integrated platform.
