Why Choose the ABB 1SAP550510R0001 CP6505 HMI Control Panel?

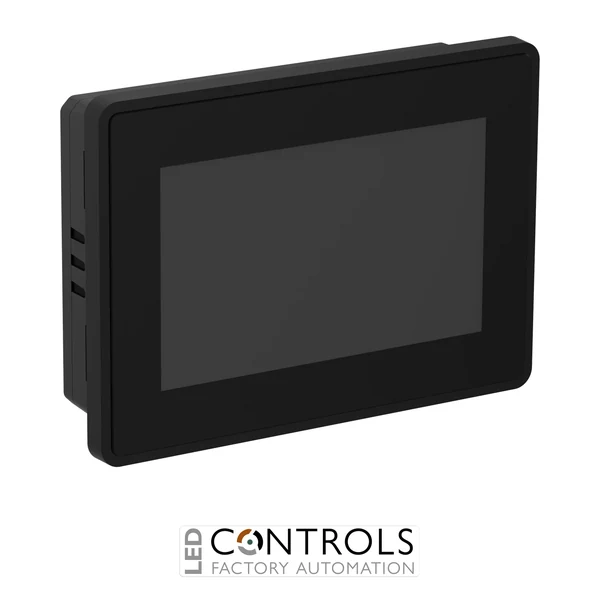

The ABB 1SAP550510R0001 CP6505 is a compact and powerful 5-inch TFT capacitive multitouch Human Machine Interface (HMI) designed for industrial automation, machine control and process monitoring applications. Part of ABB's CP600 control panel family, the CP6505 delivers intuitive operation, high-performance visualisation and seamless integration with ABB PLC and automation platforms.
Featuring a high-resolution widescreen display with capacitive multitouch technology, the CP6505 provides responsive gesture-based operation similar to modern smart devices. Its compact dimensions make it ideal for machine builders and panel manufacturers requiring advanced HMI functionality in limited installation space.
Designed for use with ABB Automation Builder and Panel Builder software, the CP6505 supports modern visualisation, diagnostics and machine operation functions while maintaining reliable industrial performance. The robust front panel and industrial construction ensure dependable operation in demanding manufacturing environments.
Key Advantages
- Compact 5-inch industrial HMI panel.
- Projected capacitive multitouch technology.
- High-resolution TFT widescreen display.
- Modern gesture-based user interface.
- Compatible with ABB Automation Builder.
- Industrial-grade reliability and performance.
- Compact panel cut-out requirements.
- Suitable for machine and process visualisation.
Key Features
- Model: CP6505
- Order Code: 1SAP550510R0001
- 5-inch TFT colour display.
- Projected capacitive multitouch screen.
- Widescreen format.
- LED backlight technology.
- Industrial HMI platform.
- Ethernet communication interface.
- USB connectivity.
- Panel mounting design.
- Compatible with ABB CP600 engineering tools.
- Suitable for industrial automation systems.
Designed for Modern Machine Visualisation
The ABB CP6505 combines a compact footprint with advanced operator interface technology. The capacitive multitouch display allows intuitive gestures such as swipe, zoom and scroll, enabling operators to interact efficiently with machine processes and production data. This improves usability while reducing training requirements for operators and maintenance personnel.
As part of the ABB CP600 platform, the CP6505 integrates seamlessly with ABB AC500 PLC systems and supports sophisticated visualisation projects, alarm management, diagnostics and production monitoring. Its compact design makes it particularly suitable for packaging machines, material handling systems, HVAC control panels and OEM machinery.
Typical Applications
- Machine control systems.
- OEM equipment.
- Packaging machinery.
- Building automation systems.
- HVAC control panels.
- Material handling equipment.
- Industrial process monitoring.
- Factory automation systems.
