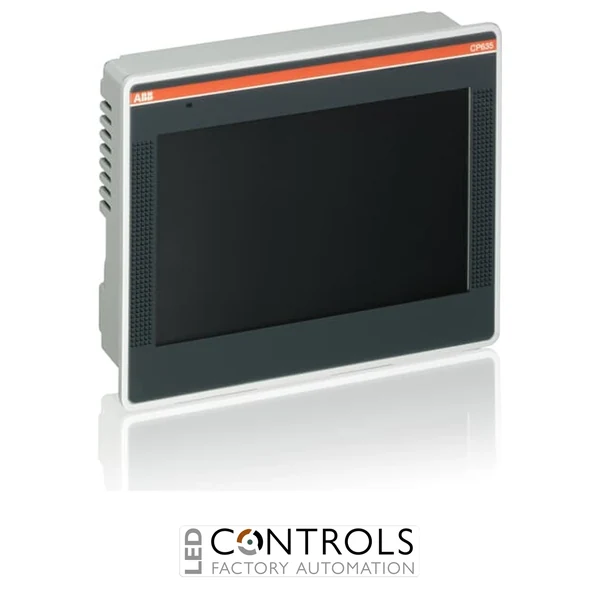

ABB CP635-WEB:CP600, control panel

ABB CP635-WEB:CP600, control panel

ABB CP635-WEB 7-inch industrial HMI control panel with 800 × 480 TFT touchscreen, integrated microbrowser for AC500 V2.3 web server visualisation and flexible Ethernet and serial communication interfaces.

SKU: 1SAP535200R0001Alt SKU: CP635-WEBMPN: 1SAP535200R0001
Price on application Contact us for pricing and availability.
Call 01708 343600

Why Choose the ABB CP635-WEB Control Panel?

The ABB CP635-WEB is a 7-inch industrial HMI control panel designed for visualisation and operator interaction with automation systems using the AC500 V2.3 web server. As part of the established ABB CP600 control panel series, it combines a TFT touchscreen display with an integrated microbrowser for clear machine and process visualisation.

The CP635-WEB provides a practical operator interface for industrial automation applications, with a 7-inch TFT graphical display offering 800 × 480 pixel resolution and 64 K colours. Its integrated microbrowser is designed specifically for visualising the AC500 V2.3 web server, allowing operators to access web-based control and monitoring interfaces directly from the panel.

With two Ethernet interfaces, a configurable RS232/422/485 serial interface, USB connectivity and an SD card slot, the CP635-WEB offers flexible integration options for industrial control systems. Its front-face mounting arrangement and robust enclosure make it suitable for installation in machine panels and industrial control cabinets.

Key Advantages

  • Industrial 7-inch HMI control panel for machine and process visualisation.
  • 800 × 480 pixel TFT touchscreen display provides clear operator information.
  • Integrated microbrowser for AC500 V2.3 web server visualisation.
  • Two 100 Mbit Ethernet interfaces for industrial communication.
  • Flexible RS232/422/485 serial communication interface.
  • Front-face mounting with a robust industrial enclosure for control panels.

Key Features

  • ABB CP600 control panel series.
  • 7-inch TFT touch screen.
  • 800 × 480 pixel display resolution.
  • 64 K colours.
  • Integrated microbrowser for AC500 V2.3 web server.
  • 2 × Ethernet 100 Mbit communication interfaces.
  • 1 × RS232/422/485 serial communication interface.
  • 2 × USB 2.0 Host interfaces.
  • Integrated SD card slot.
  • 2 × expansion slots.

Industrial HMI Visualisation for Automation Systems

Industrial HMI panels provide operators with a direct interface for monitoring processes, viewing machine information and interacting with automation systems. The ABB CP635-WEB combines a compact 7-inch touchscreen with web-based visualisation capabilities, making it suitable for applications built around the AC500 V2.3 web server.

The CP635-WEB provides multiple communication interfaces for integration into industrial control architectures. Its Ethernet ports support network connectivity, while the RS232/422/485 interface enables connection to compatible serial devices. USB, SD card and expansion interfaces provide additional flexibility for system configuration and peripheral connectivity.

Typical Applications

  • AC500 PLC web server visualisation.
  • Industrial machine operator interfaces.
  • Factory automation and process monitoring.
  • Machine control panels and electrical cabinets.
  • Production and manufacturing equipment.
  • Industrial monitoring and supervisory applications.
  • OEM machine-building applications using ABB CP600 and AC500 systems.

Technical Specifications

Tick the specs you need, then view products that match.

Screen Resolution 800 × 480
Product Series ABB CP600
Screen Size 7"
Touch Technology Touchscreen
Communication RS232
Device Type HMI / Operator Panel
Manufacturer ABB
Series CP600 Control Panels
Model CP635-WEB
Product type Industrial HMI control panel
Product ID 1SAP535200R0001
Display size 7 in
Display type TFT graphical display
Touch screen Single-touch
Display resolution 800 × 480 pixels
Display colours 64 K colours
Web interface Microbrowser for AC500 V2.3 web server
Ethernet interfaces 2 × 100 Mbit
Serial interface 1 × RS232/422/485
USB interfaces 2 × USB 2.0 Host
Memory card interface 1 × SD card slot
Expansion slots 2
Mounting type Front-face mounting
Front protection rating IP66
Housing protection rating IP20
Operating ambient temperature 0 ... +50 °C
Storage temperature -20 ... +70 °C
Dimensions (H × W × D) approx. 187 × 147 × 51 mm
Weight approx. 1.1 kg
Housing material Front side Zamak; reverse side aluminium

Frequently Asked Questions

What is the ABB CP635-WEB used for?

The ABB CP635-WEB is a 7-inch industrial HMI control panel designed for visualising the AC500 V2.3 web server and providing an operator interface for industrial automation systems.

What display does the CP635-WEB have?

The CP635-WEB has a 7-inch TFT touchscreen display with 800 × 480 pixel resolution and 64 K colours.

What communication interfaces are included?

The panel includes 2 × 100 Mbit Ethernet interfaces, 1 × RS232/422/485 serial interface, 2 × USB 2.0 Host interfaces, an SD card slot and 2 expansion slots.

What web server is supported by the CP635-WEB microbrowser?

The integrated microbrowser is designed for visualisation of the ABB AC500 V2.3 web server.

Where is the CP635-WEB typically installed?

The CP635-WEB is typically installed by front-face mounting in machine panels, electrical control cabinets and industrial automation equipment.
