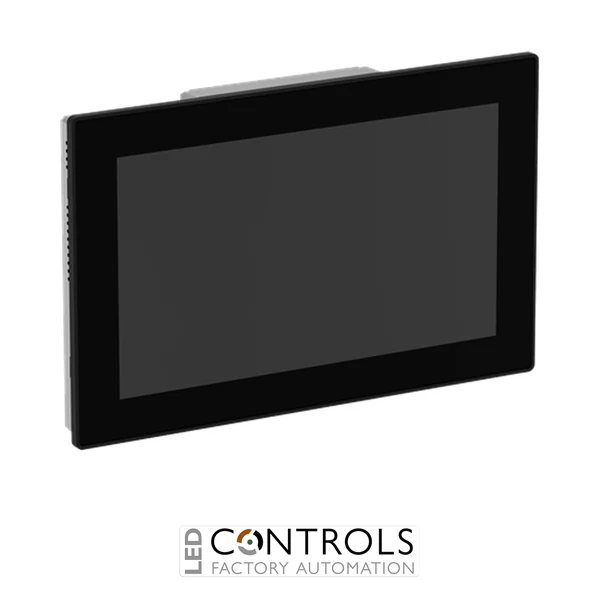

ABB CP6615, Farb-Touch 15, 6", 1366x768

ABB CP6615, Farb-Touch 15, 6″, 1366×768

ABB CP6615 1SAP561510R0001 is a 15.6-inch CP600-Pro industrial HMI with a 1366 × 768-pixel projected capacitive multi-touch display, Chromium Browser, 18–32 V DC supply and extensive Ethernet, serial and USB connectivity for PB610 and ABB AC500 V3 visualisation applications.

SKU: 1SAP561510R0001Alt SKU: CP6615MPN: 1SAP561510R0001
Price
List Price £3,797.00 ex VAT
Your Price (ex VAT)
£3,797.00
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £3,797.00
Trade pricing is personalised to your account

Manufacturer Lead Time

£3,797.00

Why Choose the ABB CP6615 15.6-Inch CP600-Pro HMI Control Panel?

The ABB CP6615 (1SAP561510R0001) is a high-performance 15.6-inch Human Machine Interface (HMI) control panel from the ABB CP600-Pro range, designed for advanced machine operation, process visualisation and industrial automation. Its large widescreen display, projected capacitive multi-touch interface and powerful hardware provide an intuitive operator platform for sophisticated automation applications.

The CP6615 features a 15.6-inch TFT-LCD display with 1366 × 768-pixel resolution, 16 million colours and approximately 300 cd/m² brightness. Its real-glass projected capacitive touchscreen supports two-finger multi-touch operation, enabling modern gestures and responsive interaction with detailed machine screens, trends, alarms and process information.

Designed for an 18–32 V DC supply, the CP6615 combines a dual-core ARM Cortex-A9 processor with 2 GB RAM and 8 GB flash memory. Three Ethernet interfaces, two USB ports and a software-configurable RS-232 / RS-485 / RS-422 serial interface provide extensive connectivity, while PB610 applications, Chromium Browser functionality and ABB AC500 V3 web server visualisation support flexible machine and process architectures.

Key Advantages

  • Large 15.6-inch widescreen multi-touch HMI for sophisticated machine and process visualisation.
  • 1366 × 768-pixel TFT-LCD display with 16 million colours.
  • Projected capacitive two-finger multi-touch technology with a durable real-glass surface.
  • Supports PB610 applications and ABB AC500 V3 web server visualisation.
  • Integrated Chromium Browser for modern web-based HMI applications.
  • Wide -20 to +60 °C operating temperature for demanding industrial environments.

Key Features

  • ABB CP6615 CP600-Pro control panel.
  • 15.6-inch widescreen TFT-LCD display.
  • 1366 × 768-pixel screen resolution.
  • 16 million display colours.
  • 300 cd/m² display brightness.
  • LED backlight with typical service life of approximately 40,000 h at 25 °C.
  • Real-glass projected capacitive multi-touch screen.
  • Two-finger multi-touch operation.
  • ARM Cortex-A9 dual-core 800 MHz processor.
  • Linux RT operating system.
  • 2 GB RAM and 8 GB flash memory.
  • Integrated Chromium Browser.
  • PB610 Panel Builder 600 application support.
  • Compatible with ABB AC500 V3 web server visualisation.

Advanced Multi-Touch Visualisation and Web Connectivity

The ABB CP6615 provides a modern operator environment for demanding automation systems. Its 15.6-inch real-glass projected capacitive display supports multi-touch operation, allowing HMI applications to use intuitive gestures while providing substantial screen space for dashboards, process diagrams, trends, alarms and detailed machine controls.

The CP600-Pro platform supports both conventional PB610 HMI applications and web-based visualisation, including ABB AC500 V3 web server applications through the integrated Chromium Browser. Three Ethernet interfaces, configurable serial communications and USB connectivity make the CP6615 suitable for integration with PLCs, machinery, motion systems and wider industrial networks.

Typical Applications

  • Large industrial machine operator interfaces.
  • ABB AC500 PLC and AC500 V3 web visualisation systems.
  • Production and assembly machinery.
  • Packaging and processing equipment.
  • Process monitoring and control installations.
  • Material handling and conveyor systems.
  • Factory and OEM automation systems.

Technical Specifications

Tick the specs you need, then view products that match.

Screen Resolution 1366 × 768
Product Series ABB CP600
Screen Size 6"
Touch Technology Capacitive
Communication RS232, RS422, RS485
Device Type HMI / Operator Panel
Manufacturer ABB
Series CP600-Pro
Model CP6615
Product ID 1SAP561510R0001
Product type HMI control panel / operator panel
Display size 15.6 in widescreen
Display type TFT-LCD colour display
Display colours 16 million
Screen resolution 1366 × 768 pixels
Brightness 300 cd/m²
Backlight LED
Typical backlight life 40,000 h at 25 °C
Touchscreen Projected capacitive multi-touch (PCAP)
Touch surface Real glass
Multi-touch capability Two-finger operation
Processor ARM Cortex-A9 dual core, 800 MHz
Operating system Linux RT
RAM 2 GB
Flash memory 8 GB
HMI project memory Up to 240 MB
Supply voltage 18–32 V DC
Ethernet 2 × 10/100 Mbit and 1 × 10/100/1000 Mbit
Serial interface RS-232 / RS-485 / RS-422, software configurable
USB 2 × USB 2.0
Hardware clock Clock/calendar with battery backup
RTC accuracy <100 ppm at 25 °C
Operating temperature -20 to +60 °C with vertical installation
Storage temperature -20 to +70 °C
Operating and storage humidity 5–85% RH, non-condensing
Front width 422 mm
Front height 267 mm
Product depth 64 mm
Built-in depth 56 mm
Product net weight approx. 3.33 kg
EAN / GTIN 4013614529641
Programming software PB610 Panel Builder 600
HS Code 85371091
Country of Manufacture Italy

Frequently Asked Questions

What is the ABB CP6615 used for?

The ABB CP6615 is a 15.6-inch CP600-Pro HMI control panel designed for advanced machine operation, industrial process visualisation, PB610 applications and compatible ABB AC500 V3 web server visualisation.

What is the screen resolution of the ABB CP6615?

The CP6615 has a 15.6-inch TFT-LCD display with 1366 × 768-pixel resolution, 16 million colours and approximately 300 cd/m² brightness.

Does the ABB CP6615 support multi-touch operation?

Yes. The CP6615 uses a projected capacitive real-glass touchscreen supporting two-finger multi-touch operation for modern and intuitive HMI applications.

What communication interfaces does the CP6615 provide?

The CP6615 provides three Ethernet interfaces, comprising two 10/100 Mbit ports and one 10/100/1000 Mbit port, together with two USB 2.0 ports and a software-configurable RS-232 / RS-485 / RS-422 serial interface.

Can the CP6615 be used for ABB AC500 web visualisation?

Yes. The CP6615 supports ABB AC500 V3 web server visualisation and includes a Chromium Browser, while also supporting conventional PB610 Panel Builder 600 HMI applications.

Trusted High-Performance Visualisation from ABB

ABB CP600-Pro control panels provide advanced operator visualisation for demanding industrial automation systems, with the CP6615 combining a large 15.6-inch multi-touch display, powerful processing hardware, Chromium Browser functionality and extensive industrial connectivity for modern machine and process control.
