Why Choose the IMO IV210M-SEAP iView M Series 10.4-Inch HMI?

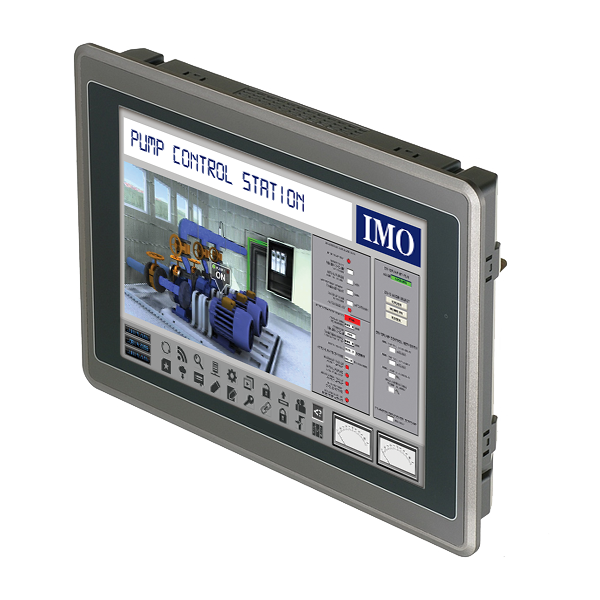

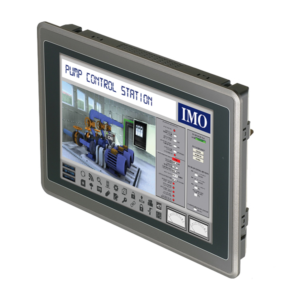

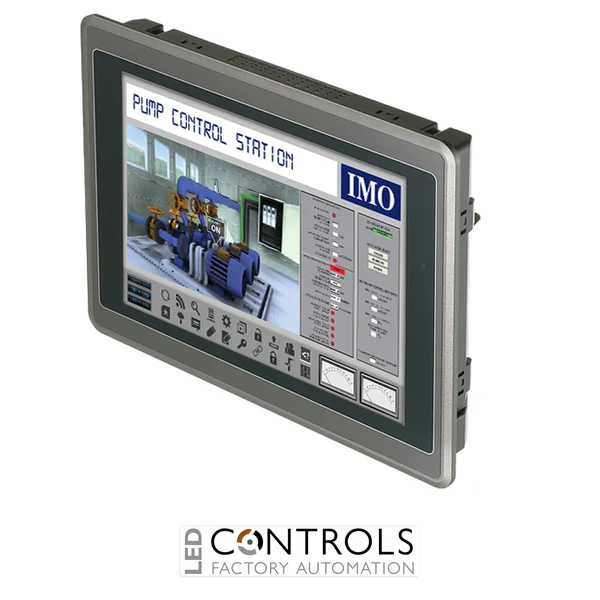

The IMO IV210M-SEAP is an advanced 10.4-inch colour touchscreen HMI from the IMO iView M Series, designed for industrial machine control, process visualisation, data logging and operator-interface applications. Its TFT display provides a 1024 × 600 pixel resolution with 65K colours, providing a spacious graphical interface for machine controls, alarms, operating parameters and process information.
Designed for demanding automation systems, the IV210M-SEAP provides five serial communication ports, integrated Ethernet and two USB ports. Its communications include RS-232, RS-422 and RS-485 interfaces, enabling connection to PLCs, variable speed drives, controllers, instrumentation and other industrial automation devices.
The IV210M-SEAP combines 64 MB system memory, 64 MB built-in storage and 128 KB battery-backed memory with a built-in real-time clock. Features including Ethernet connectivity, VNC remote monitoring, FTP, data logging, email and IoT support make it a capable HMI for connected industrial systems, while its IP65 and NEMA 4X ratings support demanding control-panel applications.
Key Advantages
- Large 10.4-inch TFT colour touchscreen for detailed industrial machine visualisation.
- 1024 × 600 pixel resolution with 65K colours for clear graphical interfaces.
- Five serial communication ports provide extensive connectivity for automation equipment.
- Integrated Ethernet supports networked automation and remote connectivity.
- Two USB ports, comprising one USB A and one USB B connection.
- Supports VNC remote monitoring for convenient network-based access.
- Built-in FTP, data logging, email and IoT support, including IDCS and MQTT.
- IP65 and NEMA 4X ratings support use in industrial control-panel environments.
Key Features
- IMO iView M Series advanced industrial HMI.
- 10.4-inch TFT colour touchscreen.
- 1024 × 600 pixel display resolution.
- 65K colours.
- 64 MB system memory.
- 64 MB built-in storage memory.
- 128 KB battery-backed memory.
- 5 serial communication ports.
- COM1: RS-232 via DB9 connection.
- COM2: RS-422/485 via DB9 connection.
- COM3: RS-485 via DB9 connection.
- COM4: RS-485 via 5-pin terminal.
- COM5: RS-485 via 5-pin terminal.
- 1 Ethernet port for network connectivity.
- 2 USB ports: 1 × USB A and 1 × USB B.
- Built-in real-time clock.
- Built-in FTP functionality.
- Supports VNC remote monitoring.
- Supports data logging using MicroSD or USB storage.
- Built-in offline software simulation support.
- Supports email functionality.
- Supports IoT connectivity including IDCS and MQTT.
- Supports the IMO iView Android application.
Advanced Machine Visualisation and Industrial Connectivity
Industrial HMIs provide the interface between operators and automated machinery, allowing users to monitor process values, view alarms, adjust operating parameters and control equipment through a graphical display. The IMO IV210M-SEAP combines a large 10.4-inch touchscreen with five serial interfaces and Ethernet connectivity, making it particularly suitable for machines containing multiple controllers and automation devices.
Integrated Ethernet supports VNC remote monitoring, FTP and connected-machine applications, while the five serial interfaces provide flexible RS-232, RS-422 and RS-485 communication. USB and MicroSD data logging, email support and IDCS/MQTT functionality further extend the IV210M-SEAP for Industrial IoT applications, providing machine builders and system integrators with a versatile platform for modern automation systems.
Typical Applications
- Industrial machine operator interfaces.
- PLC-based automation and control systems.
- Multi-device serial communication applications.
- Packaging and production machinery.
- Conveyor and material-handling systems.
- Process monitoring and control.
- Machine data logging and visualisation.
- Remote machine monitoring using Ethernet and VNC.
- MQTT and Industrial IoT applications.
- OEM machinery and industrial control panels.
