Why Choose the IMO IOS/M12BDD-D2 Remote I/O Digital Input/Output Module?

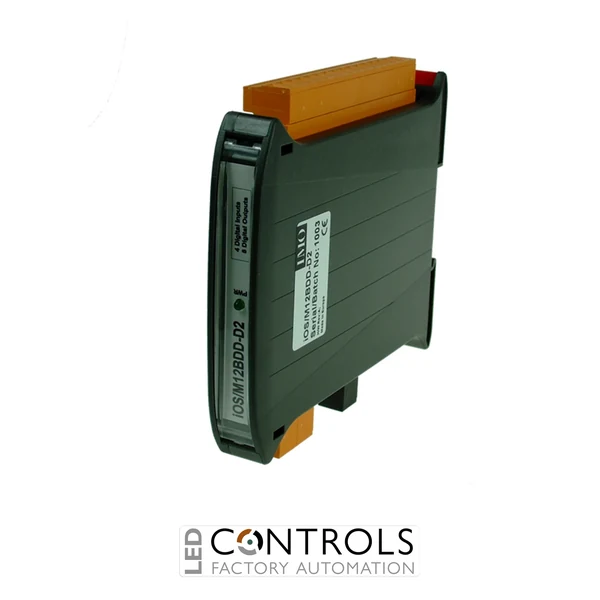

The IMO IOS/M12BDD-D2 is a compact 12-channel digital remote I/O module designed for industrial automation, machinery and distributed control applications. Part of the IMO iOS Serial/Modbus Remote I/O series, it combines 4 digital NPN inputs and 8 NPN transistor outputs in a single DIN rail module, providing a practical solution where both field sensing and DC load control are required.
The four digital inputs support 12/24 V DC signals, while the eight NPN transistor outputs can switch up to 600 mA at 30 V DC per channel, subject to a maximum combined output current of 3 A. This mixed I/O configuration makes the IOS/M12BDD-D2 suitable for interfacing proximity sensors, switches and other digital devices while controlling indicators, relays, solenoids and compatible DC loads.
Communication is provided through Modbus RTU over an RS-485 half-duplex interface, allowing the module to operate as distributed I/O away from the main controller. Removable screw terminals, 2,000 V AC isolation and a slim 17.5 mm enclosure help make installation and maintenance straightforward in industrial control panels.
Key Advantages
- Combines 4 digital inputs and 8 NPN transistor outputs in one compact module.
- 12/24 V DC digital inputs suit common industrial sensors and switching devices.
- Each transistor output can switch up to 600 mA at 30 V DC.
- Supports a combined output load of up to 3 A.
- Modbus RTU communications provide straightforward integration with industrial control systems.
- RS-485 half-duplex networking supports distributed I/O installations.
- 2,000 V AC isolation between key circuits supports dependable industrial operation.
- Removable screw terminals simplify installation, maintenance and module replacement.
Key Features
- IMO iOS Serial/Modbus Remote I/O series.
- 12 total digital I/O channels.
- 4 NPN digital inputs with one common.
- 8 NPN transistor outputs.
- 12/24 V DC input voltage range.
- 4.7 kΩ input impedance.
- 30 V DC maximum input peak voltage.
- 10 V DC input ON level.
- 0–3 V DC input OFF level.
- Output switching capacity of 600 mA at 30 V DC per channel.
- 3 A maximum total output current.
- Modbus RTU over RS-485 half duplex.
- Removable screw-type terminal connections.
- Minimum PLC update/sample time of 20 ms, dependent on configuration.
Flexible Distributed Digital I/O for Industrial Automation
Mixed digital I/O modules provide an efficient way to connect both input devices and controlled loads at a remote point within a machine or automation system. The IMO IOS/M12BDD-D2 combines four DC digital inputs with eight transistor outputs, allowing sensor states to be monitored and compatible DC devices to be controlled through a single remote module.
Using Modbus RTU communications over RS-485, the IOS/M12BDD-D2 can be positioned close to field devices rather than requiring every signal to be individually wired back to the main controller. This can simplify control-panel architecture and field wiring while providing a flexible method of expanding digital I/O capacity in industrial automation systems.
Typical Applications
- Industrial machinery and automation systems.
- Remote sensor and actuator interfacing.
- Proximity switch and limit switch monitoring.
- Solenoid, indicator and compatible DC load control.
- Conveyor and material-handling equipment.
- Packaging and production machinery.
- Distributed PLC and Modbus remote I/O installations.
- OEM machinery and industrial control panels.
