Why Choose the IMO SMT-ED-T20-V3 iSmart Intelligent Relay?

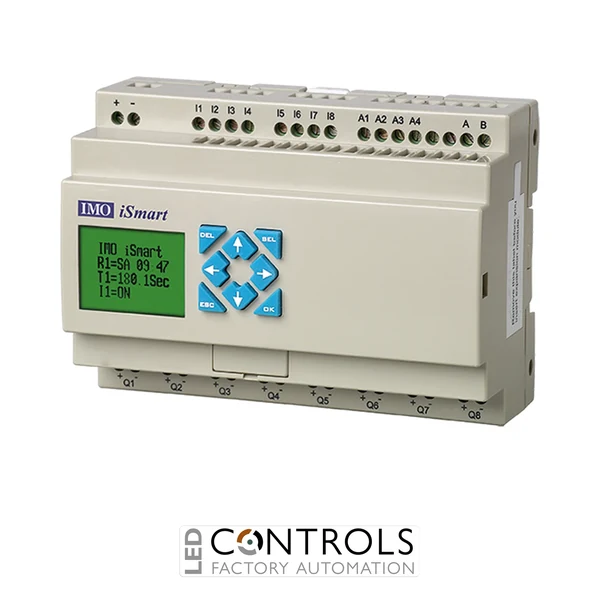

The IMO SMT-ED-T20-V3 is a compact 24 V DC iSmart V3 intelligent relay with integrated HMI, designed for industrial automation, machinery and control panel applications. It combines programmable logic, local operator interaction and flexible I/O, providing 12 DC input points and 8 transistor outputs within a single expandable controller.
As part of the IMO iSmart V3 programmable relay series, the SMT-ED-T20-V3 incorporates 4 configurable 0–10 V analogue inputs within its 12-input configuration. The analogue-capable channels can also be used as digital inputs, enabling the controller to handle both conventional switching devices and variable analogue signals from compatible sensors and transmitters.
Operating from a 24 V DC supply, the SMT-ED-T20-V3 provides 8 transistor outputs rated at 0.5 A and includes 2 PWM outputs operating at up to 0.5 kHz. Its integrated HMI provides convenient local monitoring and control, while Ladder Logic, Function Block Diagram, PID, maths and retentive data functions support demanding compact automation applications.
Key Advantages
- Combines programmable control, analogue monitoring and an integrated HMI in one compact device.
- 12 DC input points provide substantial onboard input capacity.
- Includes 4 configurable 0–10 V analogue inputs for compatible variable-output sensors.
- 8 transistor outputs rated at 0.5 A provide fast, wear-free switching for compatible DC loads.
- 2 PWM outputs operating at up to 0.5 kHz extend the controller beyond conventional on/off switching.
- Supports both Ladder Logic and Function Block Diagram (FBD) programming.
- PID control, maths functions, timers, counters and retentive data registers provide flexible automation functionality.
- Expandable with compatible IMO iSmart digital, analogue, temperature and communication modules.
Key Features
- IMO iSmart V3 intelligent relay.
- 24 V DC operating supply.
- 12 DC input points.
- 4 configurable 0–10 V analogue inputs.
- 8 transistor outputs.
- 0.5 A transistor output rating.
- 2 PWM outputs up to 0.5 kHz.
- Integrated text HMI.
- Programmable function keys.
- Ladder Logic programming.
- Function Block Diagram (FBD) programming.
- PID control capability of up to 30 loops.
- Maths functions and retentive data registers.
- Multi-language functionality within the iSmart V3 platform.
- Expandable with compatible IMO iSmart expansion modules.
- CE, UL and cUL approved iSmart V3 platform.
Transistor and PWM Control for High-Cycle Automation
The IMO SMT-ED-T20-V3 uses 8 solid-state transistor outputs rated at 0.5 A rather than mechanical relay outputs. This makes the controller particularly useful for compatible DC applications involving frequent switching, as transistor outputs provide rapid operation without the mechanical contact wear associated with conventional relay outputs.
Two outputs also provide PWM operation at up to 0.5 kHz, allowing compatible equipment to be controlled using pulse-width modulation. Combined with four 0–10 V analogue-capable inputs, an integrated HMI and the extensive programming functions of the iSmart V3 platform, the SMT-ED-T20-V3 provides a versatile solution for compact machine and process automation.
Typical Applications
- Industrial machine automation.
- High-cycle DC switching applications.
- PWM control of compatible DC equipment.
- 0–10 V sensor monitoring and control.
- Conveyor and material handling equipment.
- Packaging and production machinery.
- Compact process automation systems.
- OEM machinery and electrical control panels.
