Why Choose the IMO SMT-ED12-R12-V3 iSmart Intelligent Relay?

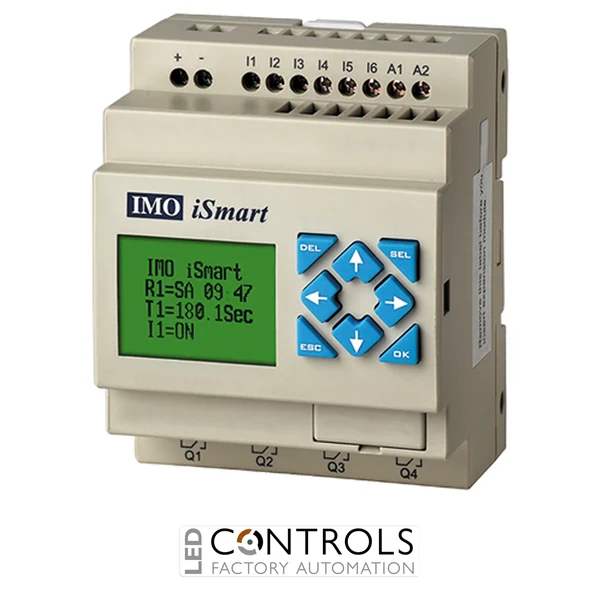

The IMO SMT-ED12-R12-V3 is a compact 12 V DC iSmart V3 intelligent relay with integrated HMI, designed for industrial automation, mobile equipment, machinery and control panel applications. It combines programmable logic and local operator interaction with 8 DC input points and 4 relay outputs.
As part of the IMO iSmart V3 programmable relay series, the SMT-ED12-R12-V3 provides 6 dedicated digital inputs plus 2 inputs configurable for digital or 0–10 V analogue operation. Its analogue-capable inputs offer 12-bit resolution, allowing compatible variable-output sensors and transmitters to be incorporated directly into the control program.
Designed specifically for 12 V DC systems, the SMT-ED12-R12-V3 operates across a 10.2–13.8 V DC supply range and provides 4 relay outputs rated up to 8 A. It also includes 2 high-speed inputs operating at up to 1 kHz, an integrated text HMI with programmable function keys and support for both Ladder Logic and Function Block Diagram programming.
Key Advantages
- Purpose-designed 12 V DC intelligent relay for low-voltage automation systems.
- Combines programmable control, analogue monitoring and an integrated HMI in one compact unit.
- 8 DC input points provide flexible onboard signal handling.
- Includes 2 configurable 0–10 V analogue inputs for compatible variable-output sensors.
- 4 relay outputs rated up to 8 A provide versatile load switching.
- 2 high-speed inputs operating at up to 1 kHz support compatible pulse and counting applications.
- Supports both Ladder Logic and Function Block Diagram (FBD) programming.
- Expandable with compatible IMO iSmart modules for additional I/O and functionality.
Key Features
- IMO iSmart V3 intelligent relay.
- 12 V DC nominal operating supply.
- 10.2–13.8 V DC supply range.
- 8 total DC input points.
- 6 dedicated digital inputs.
- 2 configurable 0–10 V analogue inputs.
- 12-bit analogue input resolution.
- 4 relay outputs.
- 8 A relay output rating.
- 2 high-speed inputs up to 1 kHz.
- Integrated text HMI.
- 8 programmable function keys.
- Ladder Logic programming.
- Function Block Diagram (FBD) programming.
- PID control capability of up to 30 loops.
- Maths functions and retentive data registers.
- Expandable with compatible IMO iSmart expansion modules.
Programmable Control for 12 V DC Automation Systems
The IMO SMT-ED12-R12-V3 is specifically configured for applications using a 12 V DC control supply. This makes it particularly useful where a 24 V DC control supply is unavailable or where the automation system is powered directly from a nominal 12 V source. Its four relay outputs provide electrically switched outputs suitable for controlling compatible AC or DC loads within the specified contact ratings.
The combination of six dedicated digital inputs and two 0–10 V analogue-capable inputs allows the controller to monitor both discrete and variable signals. Together with its integrated HMI, high-speed inputs, PID capability, timers, counters and expandable architecture, the SMT-ED12-R12-V3 provides considerably more control functionality than a conventional relay-based system while retaining a compact footprint.
Typical Applications
- 12 V DC machine automation.
- Battery-powered control systems.
- Mobile and vehicle-mounted equipment.
- Pump, fan and auxiliary equipment control.
- 0–10 V sensor monitoring and control.
- Sequencing, timing and counting applications.
- Compact OEM machinery.
- Industrial and electrical control panels.
