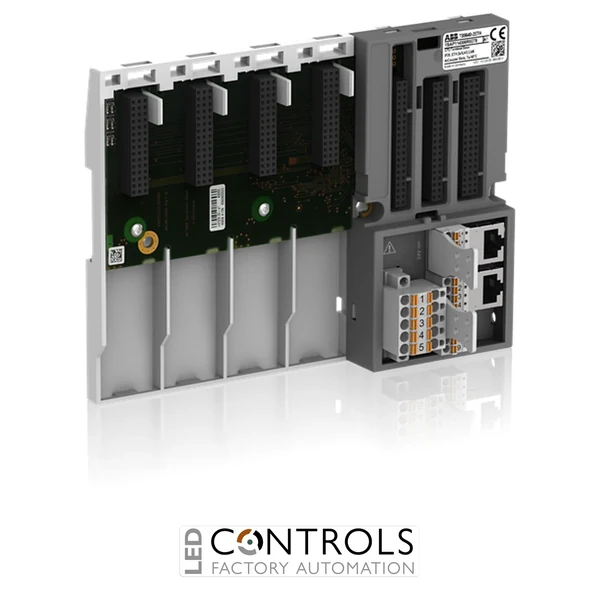

ABB TB5640-2ETH AC500 V3 terminal base with 4 communication module slots and dual Ethernet interfaces for scalable industrial automation systems.
£178.00
The ABB 1SAP114300R0278 TB5640-2ETH is a versatile AC500 V3 terminal base designed to provide the mounting, power distribution and communication infrastructure for ABB AC500 V3 PLC systems. Engineered for industrial automation applications, the TB5640-2ETH enables flexible system configuration while integrating Ethernet networking capabilities into a compact and robust platform. It serves as the foundation for AC500 V3 CPUs and communication modules, helping create scalable and future-ready control systems.
Featuring 4 communication module slots and 2 integrated Ethernet interfaces, the TB5640-2ETH offers extensive connectivity for industrial networks and distributed automation architectures. The modular design allows engineers to expand communication capabilities as application requirements evolve, reducing engineering complexity and simplifying maintenance.
Specifically developed for ABB's AC500 V3 automation platform, the terminal base delivers reliable performance, straightforward installation and seamless integration with ABB CPUs and expansion modules. Its compact dimensions and DIN rail mounting make it suitable for control cabinets across a wide range of industrial sectors.
The TB5640-2ETH provides the foundation for compact AC500 V3 PLC architectures while maintaining flexibility for future expansion. Its four communication module slots allow integration of additional industrial networking technologies without requiring a larger controller platform. The integrated Ethernet interfaces support modern industrial communication requirements while helping minimise hardware complexity.
By combining communication infrastructure and CPU mounting functionality within a single terminal base, the TB5640-2ETH reduces installation time and simplifies system maintenance. This makes it particularly suitable for machine builders, infrastructure projects and industrial automation systems where reliable networking and modular expansion are essential.
| IP Rating | IP20 |
|---|---|
| Series | AC500 V3 |
| Order Number | 1SAP114300R0278 |
| Product Type | PLC Terminal Base |
| Application | AC500 V3 CPU and communication module mounting |
| Communication Module Slots | 4 |
| Ethernet Interfaces | 2 |
| Protection Rating | IP20 |
| Supply Voltage Type | DC |
| Width | Approx. 185.5 mm |
| Height | 135 mm |
| Depth | 28 mm |
| Mounting | DIN rail / control cabinet installation |
| Compatibility | ABB AC500 V3 PLC platform |
| HS Code | 85389091 |
| Country of Manufacture | Germany |
The ABB 1SAP114300R0278 is the TB5640-2ETH terminal base designed for ABB AC500 V3 PLC systems. It provides mounting and communication infrastructure for CPUs and communication modules.
The TB5640-2ETH provides 4 communication module slots for expanding AC500 V3 communication capabilities.
The terminal base includes 2 integrated Ethernet interfaces for industrial networking and communication.
The TB5640-2ETH is specifically designed for ABB AC500 V3 programmable logic controller systems.
The unit features an IP20 protection rating and is intended for installation within industrial control cabinets.
The ABB TB5640-2ETH delivers a compact and scalable foundation for AC500 V3 PLC systems, combining integrated Ethernet connectivity with flexible communication module expansion for modern industrial automation projects.
