1SAP125500R0173 ABB PM5092-MC-KIT-EC-EIP AC500,Mach.Control. Kit PM5092-T-2ETH+MC+ ETHCAT+EIP Runtime license,spring term.,Pack. Unit: 1 piece

1SAP125500R0173 ABB PM5092-MC-KIT-EC-EIP AC500,Mach.Control. Kit PM5092-T-2ETH+MC+ ETHCAT+EIP Runtime license,spring term.,Pack. Unit: 1 piece

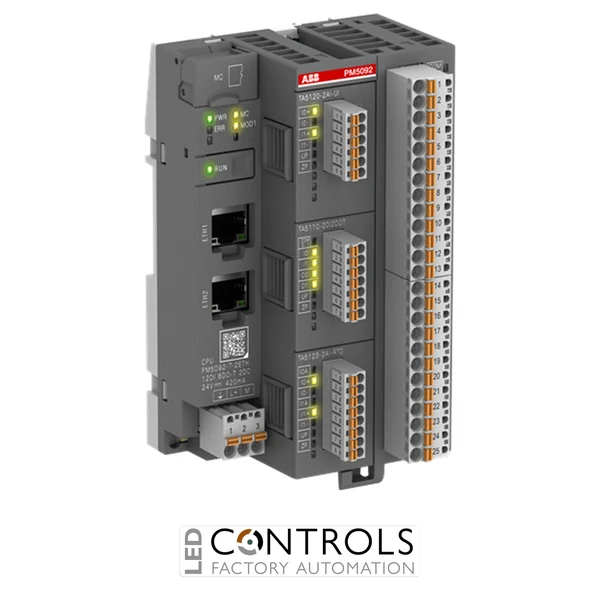

ABB PM5092-MC-KIT-EC-EIP AC500-eCo V3 machine control kit including PM5092-T-2ETH processor module, PLCopen Motion Control functionality, EtherCAT runtime and EtherNet/IP runtime capability.

SKU: 1SAP125500R0173Alt SKU: PM5092-MC-KIT-EC-EIPMPN: 1SAP125500R0173
Price
List Price £1,214.00 ex VAT
Your Price (ex VAT)
£1,214.00
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £1,214.00
Trade pricing is personalised to your account

Manufacturer Lead Time

£1,214.00

Why Choose the ABB 1SAP125500R0173 PM5092-MC-KIT-EC-EIP AC500 Machine Control Kit?

The ABB 1SAP125500R0173 PM5092-MC-KIT-EC-EIP is a premium AC500-eCo V3 Machine Control Kit that combines a high-performance PLC processor with integrated PLCopen Motion Control, EtherCAT and EtherNet/IP runtime functionality. Designed for advanced machine automation, robotics, synchronised motion systems and Industry 4.0 applications, this complete package provides machine builders and OEMs with a powerful and scalable automation platform.

The kit is built around the PM5092-T-2ETH processor module, featuring 24 MB application memory, 12 digital inputs, 8 transistor outputs, 2 configurable digital I/O channels and dual Ethernet interfaces. The included PS5611-MC-EC-EIP-e runtime licence provides integrated motion control, EtherCAT networking and EtherNet/IP communications within a single solution.

By combining hardware, terminal accessories and runtime software into a single order code, the PM5092-MC-KIT-EC-EIP reduces engineering effort, simplifies commissioning and accelerates machine deployment while maintaining full compatibility with ABB Automation Builder and the AC500-eCo V3 platform.

Key Advantages

  • Complete AC500-eCo V3 machine control solution.
  • Includes PLCopen Motion Control runtime licence.
  • Integrated EtherCAT communication functionality.
  • Integrated EtherNet/IP communication functionality.
  • 24 MB application memory.
  • Dual Ethernet communication interfaces.
  • 12 digital inputs and 8 transistor outputs onboard.
  • Three option board expansion slots.
  • Reduces engineering and commissioning time.

Key Features

  • Model: PM5092-MC-KIT-EC-EIP
  • Order Code: 1SAP125500R0173
  • AC500-eCo V3 machine control kit.
  • Includes PM5092-T-2ETH processor module.
  • Includes PS5611-MC-EC-EIP-e runtime licence.
  • PLCopen Motion Control functionality.
  • Integrated EtherCAT communication.
  • Integrated EtherNet/IP communication.
  • 24 MB application memory.
  • 12 digital inputs.
  • 8 transistor outputs.
  • 2 configurable digital I/O channels.
  • Dual Ethernet interfaces.
  • 3 option board expansion slots.

Kit Contents

  • 1 × PM5092-T-2ETH processor module (1SAP124700R0173).
  • 1 × TA5212-TSPF terminal block set.
  • 1 × PS5611-MC-EC-EIP-e runtime licence.
  • Integrated PLCopen Motion Control functionality.
  • Integrated EtherCAT communication support.
  • Integrated EtherNet/IP communication support.

Advanced Motion Control and Industrial Networking

The PM5092-MC-KIT-EC-EIP combines powerful PLC processing, motion control and industrial Ethernet networking within a single compact automation platform. Engineers can synchronise servo drives, machine axes and distributed I/O devices using EtherCAT while simultaneously integrating with EtherNet/IP-based automation architectures.

The PM5092-T-2ETH processor provides enhanced performance, substantial memory resources, dual Ethernet interfaces and expansion capability through three option board slots. This makes the platform ideal for complex automation systems requiring scalability, deterministic communication and advanced machine control functionality.

Typical Applications

  • Machine automation.
  • Motion control systems.
  • Industrial robotics.
  • Packaging machinery.
  • Material handling equipment.
  • Assembly automation.
  • Production line synchronisation.
  • Industry 4.0 manufacturing systems.

Technical Specifications

Tick the specs you need, then view products that match.

Communication EtherNet/IP
Product Series ABB AC500
Device Type Software / Licence
Coil / Supply Voltage 20.4–28.8 V DC
Digital Inputs 12
Digital Outputs 8
Output Type Transistor
IP Rating IP20
Series AC500-eCo V3
Order Number 1SAP125500R0173
Product Type Machine Control Kit
Processor Module PM5092-T-2ETH
Application Memory 24 MB
User Data Memory 9100 kB RAM
Digital Inputs 12 × 24 V DC
Digital Outputs 8 × 24 V DC transistor outputs, 0.5 A
Configurable Digital I/O 2 × Digital I/O
Ethernet Interfaces 2 × RJ45
Option Board Slots 3
Supply Voltage 20.4 to 28.8 V DC
Rated Voltage 24 V DC
Controller Processing Time 0.000005 ms
Dimensions (W × H × D) 180 × 110 × 250 mm
Weight 0.363 kg
Protection Rating IP20
HS Code 85371091
Country of Manufacture China

Frequently Asked Questions

What is the ABB 1SAP125500R0173?

The ABB 1SAP125500R0173 is the PM5092-MC-KIT-EC-EIP AC500-eCo V3 Machine Control Kit containing a PM5092-T-2ETH controller, terminal block set and PS5611-MC-EC-EIP-e runtime licence.

Which controller is included in the kit?

The kit includes the PM5092-T-2ETH processor module with 24 MB memory, 12 digital inputs, 8 transistor outputs, 2 configurable I/O channels and dual Ethernet interfaces.

Does the kit support EtherCAT and EtherNet/IP?

Yes. The included PS5611-MC-EC-EIP-e runtime licence provides both EtherCAT and EtherNet/IP communication functionality alongside PLCopen Motion Control capabilities.

How much memory does the controller provide?

The PM5092-T-2ETH processor includes 24 MB application memory and approximately 9100 kB of RAM for user data and program execution.

Which software is used for programming?

The machine control kit is engineered, programmed and commissioned using ABB Automation Builder software.
