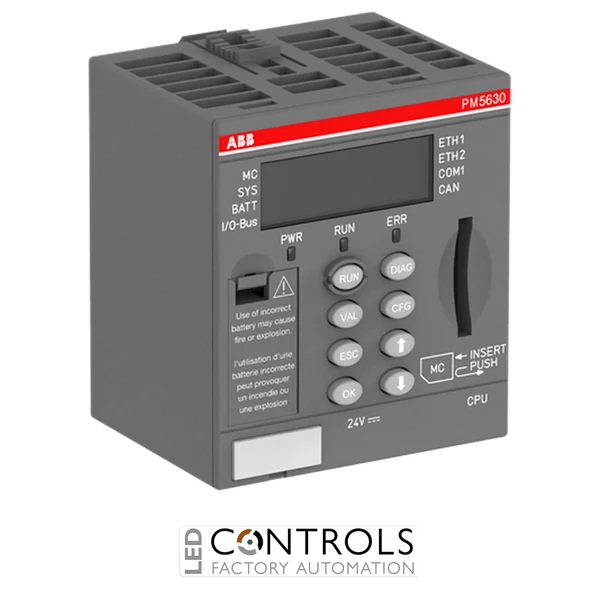

Why Choose the ABB 1SAP131000R0378 PM5630-2ETH AC500 V3 PLC CPU?
The ABB 1SAP131000R0378 PM5630-2ETH is a powerful AC500 V3 programmable logic controller (PLC) processor module designed for advanced industrial automation, infrastructure and process control applications. As part of ABB's modular AC500 platform, the PM5630-2ETH delivers high processing performance, extensive memory capacity and integrated communication interfaces, making it ideal for complex automation systems requiring scalability and reliable operation.
Equipped with 8 MB of program memory, dual Ethernet ports, integrated RS-232/RS-485 serial communications, CAN networking and a built-in display, the PM5630-2ETH provides comprehensive connectivity for modern industrial control architectures. Its modular design supports the expansion of both I/O and communication capabilities, enabling flexible system development as application requirements grow.
Designed for use with ABB Automation Builder engineering software, the PM5630-2ETH supports advanced control, communication and monitoring functions while maintaining the reliability and performance expected from the AC500 platform.
Key Advantages
- High-performance AC500 V3 PLC processor.
- 8 MB memory capacity.
- Dual integrated Ethernet interfaces.
- Integrated RS-232/RS-485 communication.
- Integrated CAN communication interface.
- Built-in diagnostic display.
- Supports modular system expansion.
- Compatible with ABB Automation Builder.
Key Features
- Model: PM5630-2ETH
- Order Code: 1SAP131000R0378
- AC500 V3 processor module.
- 8 MB memory capacity.
- 2 × Ethernet interfaces.
- RS-232 / RS-485 serial communication.
- CAN communication interface.
- Integrated front display.
- Fast processor execution performance.
- Supports distributed automation systems.
- Compatible with AC500 communication modules.
- Designed for industrial applications.
Advanced Control and Connectivity
The PM5630-2ETH is engineered for demanding automation projects that require powerful processing capabilities and multiple communication channels. Dual Ethernet ports allow simultaneous network communication and engineering access, while integrated serial and CAN interfaces simplify connectivity with legacy devices, fieldbus systems and distributed equipment.
Its modular AC500 architecture enables users to expand communication modules and I/O capacity through compatible terminal bases such as the TB5640-2ETH and TB5660-2ETH, providing a scalable platform suitable for both new installations and future upgrades.
Typical Applications
- Industrial automation systems.
- Process control applications.
- Infrastructure projects.
- Energy management systems.
- Water and wastewater treatment.
- Material handling equipment.
- Machine automation.
- Distributed control systems.
