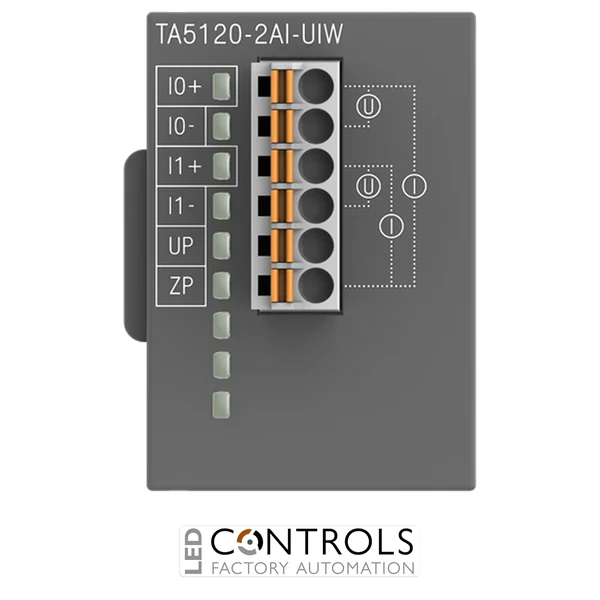

ABB TA5120-2AI-UIW analogue input option board providing 2 analogue voltage and current inputs with 12-bit resolution for AC500-eCo programmable logic controllers.
£139.00
The ABB 1SAP187100R0201 TA5120-2AI-UIW is a compact and highly reliable analogue input option board designed for ABB AC500-eCo programmable logic controllers. It expands controller functionality by providing two additional analogue input channels capable of processing both voltage and current signals, making it ideal for industrial automation, process monitoring and machine control applications.
As part of the ABB AC500-eCo automation platform, the TA5120-2AI-UIW offers a simple and cost-effective solution for increasing analogue signal capacity without requiring large expansion modules. The board integrates directly into compatible controllers and features spring terminals for fast, secure and reliable installation.
With 2 analogue inputs supporting voltage and current signals, 12-bit resolution and a wide temperature design, the TA5120-2AI-UIW is ideally suited to applications requiring accurate process measurement and monitoring in demanding industrial environments.
Analogue input modules such as the ABB TA5120-2AI-UIW enable PLC systems to monitor continuous process variables including temperature, pressure, flow, level and other sensor measurements. By supporting both voltage and current signals, the module provides excellent flexibility for a wide range of industrial instrumentation applications.
Its 12-bit resolution allows accurate signal acquisition and process monitoring, helping engineers optimise machine performance, improve process control and increase overall system efficiency. The wide temperature design further enhances reliability in demanding industrial environments.
| IP Rating | IP20 |
|---|---|
| Series | AC500-eCo Accessories |
| Product ID | 1SAP187100R0201 |
| Product type | Analogue input option board |
| Analogue inputs | 2 |
| Input signal types | Voltage (U) and Current (I) |
| Resolution | 12 Bit |
| Terminal type | Spring terminals |
| Compatible platform | ABB AC500-eCo PLC |
| Mounting type | Internal option board |
| Protection rating | IP20 |
| Dimensions (H × W × D) | 42 × 28.5 × 54.2 mm |
| Weight | approx. 0.015 kg |
| HS Code | 85389091 |
| Country of Manufacture | Germany |
The TA5120-2AI-UIW expands a compatible AC500-eCo PLC by providing 2 analogue input channels for monitoring industrial process signals.
The module supports both voltage (U) and current (I) analogue input signals.
The analogue inputs provide 12-bit resolution for accurate measurement and control applications.
The W designation identifies the module as a wide temperature version designed for demanding industrial environments.
The option board is designed specifically for compatible ABB AC500-eCo programmable logic controllers.
ABB AC500-eCo analogue expansion modules provide precise signal acquisition and dependable performance, helping automation engineers implement accurate monitoring and control systems across a wide range of industrial applications.
