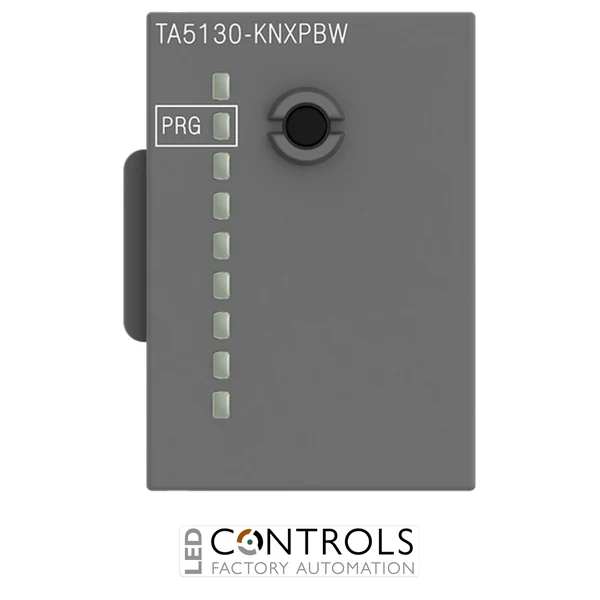

1SAP187200R0201 ABB TA5130-KNXPBW AC500, KNX address switch option board, 1 push button, Wide temperature

1SAP187200R0201 ABB TA5130-KNXPBW AC500, KNX address switch option board, 1 push button, Wide temperature

ABB TA5130-KNXPBW function option board featuring a KNX address switch and integrated push button for AC500-eCo Pro programmable logic controllers.

SKU: 1SAP187200R0201Alt SKU: TA5130-KNXPBWMPN: 1SAP187200R0201
Price
List Price £37.00 ex VAT
Your Price (ex VAT)
£37.00
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £37.00
Trade pricing is personalised to your account

Manufacturer Lead Time

£37.00

Why Choose the ABB TA5130-KNXPBW KNX Address Switch Option Board?

The ABB 1SAP187200R0201 TA5130-KNXPBW is a specialised KNX address switch option board designed for ABB AC500-eCo Pro programmable logic controllers. Featuring an integrated push button for KNX addressing functions, this compact option board simplifies commissioning and configuration of KNX-enabled building automation and control systems.

As part of the ABB AC500-eCo accessory range, the TA5130-KNXPBW provides seamless integration with compatible AC500-eCo Pro CPUs while maintaining the reliability and performance expected from ABB industrial automation products. Its compact design allows installation directly within the controller architecture without requiring additional panel space.

With a single integrated KNX address push button and a wide temperature operating range, the TA5130-KNXPBW is ideally suited for building automation, smart infrastructure and industrial control applications requiring KNX network integration and efficient commissioning procedures.

Key Advantages

  • Compact KNX address switch option board for AC500-eCo Pro controllers.
  • Integrated push button for KNX addressing functions.
  • Designed specifically for ABB AC500-eCo Pro CPUs.
  • Wide temperature version for demanding environments.
  • Simple installation through option board architecture.
  • Supports KNX building automation applications.
  • Reliable ABB automation platform compatibility.

Key Features

  • ABB TA5130-KNXPBW function option board.
  • KNX address switch functionality.
  • 1 integrated push button.
  • Designed for AC500-eCo Pro CPU controllers.
  • Wide temperature (W) version.
  • Internal controller-powered operation.
  • Compact board-level installation.
  • Industrial-grade construction.

Simplified KNX Addressing for Building Automation

KNX is one of the world's leading standards for intelligent building automation and control. The TA5130-KNXPBW provides a dedicated hardware interface for KNX addressing functions, simplifying commissioning and maintenance procedures within KNX-enabled installations.

Its direct integration with compatible AC500-eCo Pro controllers allows engineers to implement building automation solutions efficiently while maintaining a compact and organised control system architecture. The wide temperature specification ensures reliable operation in challenging installation environments.

Typical Applications

  • KNX building automation systems.
  • Smart building control solutions.
  • Commercial building management systems.
  • Industrial facility automation.
  • HVAC control applications.
  • Lighting automation systems.
  • Infrastructure control projects.

Technical Specifications

Tick the specs you need, then view products that match.

Signal Type / Function Temperature (RTD/TC)
Product Series ABB AC500
Device Type Communication / Function Module
Communication KNX
Supported Protocols KNX
Series AC500-eCo Accessories
Product ID 1SAP187200R0201
Product type Function option board
Function KNX address switch
Push buttons 1
Compatible platform AC500-eCo Pro CPU
Power supply Via internal CPU connection
Additional current consumption Max. 25 mA
Terminal type Integrated option board connection
Wide temperature version Yes
Dimensions (H × W × D) approx. 42 × 28.5 × 41.2 mm
Weight approx. 0.014 kg
HS Code 85389091
Country of Manufacture Germany

Frequently Asked Questions

What is the ABB TA5130-KNXPBW used for?

The TA5130-KNXPBW is a KNX address switch option board used to support KNX commissioning and addressing functions on compatible ABB AC500-eCo Pro controllers.

How many push buttons are included?

The module includes one integrated push button for KNX addressing and configuration functions.

Which controllers are compatible with this option board?

The TA5130-KNXPBW is designed specifically for compatible ABB AC500-eCo Pro CPU controllers.

What does the W designation indicate?

The W designation identifies the module as a wide temperature version suitable for operation in demanding environmental conditions.

Does the module require a separate power supply?

No. The option board is powered through the controller's internal CPU connection and requires no separate power source.

Trusted by Building Automation Professionals Worldwide

ABB AC500-eCo option boards provide specialised functionality that helps engineers implement reliable building automation and industrial control systems while maintaining seamless integration with KNX and smart infrastructure technologies.
