Why Choose the ABB TA5123-2AI-RTD Analogue Input Option Board?

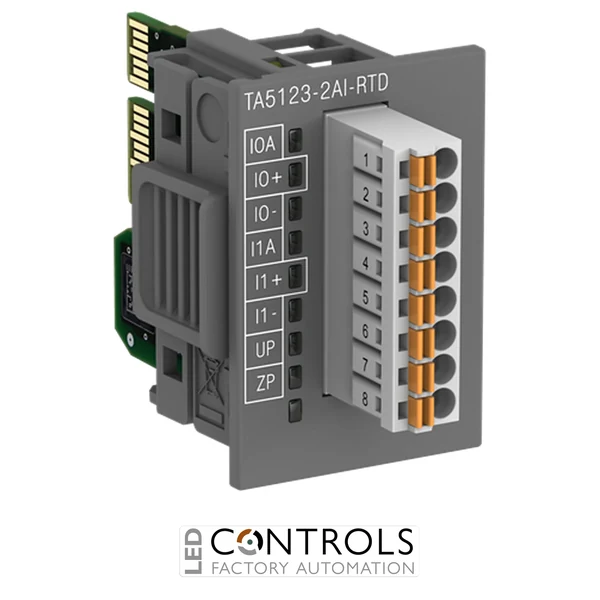

The ABB TA5123-2AI-RTD is a compact RTD analogue input option board designed to extend the temperature measurement capability of compatible ABB AC500-eCo V3 programmable logic controllers. It provides two configurable RTD analogue inputs, identified as I0 and I1, for connecting resistance temperature detectors directly to the PLC.
Designed for ABB AC500-eCo V3 PM50xx CPUs, the TA5123-2AI-RTD provides 16-bit resolution including sign for precise temperature measurement. It supports commonly used industrial resistance sensors including Pt100, Pt1000 and Ni1000 RTDs, making it suitable for machinery, process equipment, HVAC systems and other applications requiring reliable temperature monitoring.
The TA5123-2AI-RTD accommodates 2-wire and 3-wire RTD measurement and features an 8-pin removable spring terminal block with 3.50 mm pitch. Two yellow LEDs provide channel status indication, while a 24 V DC process supply is connected through the UP and ZP terminals. Its compact option-board format enables temperature measurement to be added directly to compatible AC500-eCo V3 CPUs without a separate external I/O module.
Key Advantages
- Adds two configurable RTD analogue inputs to compatible ABB AC500-eCo V3 PLCs.
- 16-bit resolution including sign supports precise temperature measurement.
- Supports industrial RTD sensor types including Pt100, Pt1000 and Ni1000.
- Supports 2-wire and 3-wire temperature measurement configurations.
- Two yellow channel status LEDs assist commissioning and diagnostics.
- Supplied with a removable 8-pin spring terminal block for straightforward field wiring.
Key Features
- ABB AC500-eCo V3 RTD analogue input option board.
- Two configurable analogue temperature inputs.
- 16-bit resolution including sign.
- Supports Pt100 resistance temperature detectors.
- Supports Pt1000 resistance temperature detectors.
- Supports Ni1000 resistance temperature detectors.
- Supports 2-wire and 3-wire RTD connections.
- Inputs identified as I0 and I1 and arranged in one group.
- Two yellow LEDs for analogue input status indication.
- Removable 8-pin spring/cable front terminal block.
Precise RTD Temperature Measurement for AC500-eCo V3 PLCs
Resistance temperature detectors measure temperature through predictable changes in electrical resistance. The ABB TA5123-2AI-RTD allows compatible AC500-eCo V3 CPUs to acquire these resistance measurements directly, providing two dedicated channels for integrating industrial temperature sensors into PLC control and monitoring applications.
Support for Pt100, Pt1000 and Ni1000 sensors makes the option board suitable for a broad range of industrial temperature measurement tasks. Its 16-bit resolution provides detailed signal conversion, while support for 3-wire measurement helps compensate for lead resistance where appropriate, improving measurement performance in industrial installations.
Typical Applications
- Industrial temperature measurement and monitoring.
- Pt100, Pt1000 and Ni1000 sensor integration.
- Process heating and cooling systems.
- HVAC and building automation.
- Industrial machinery temperature monitoring.
- Motor, bearing and equipment temperature measurement.
- Packaging and production machinery.
- OEM control panels using ABB AC500-eCo V3 PLCs.
