Why Choose the ABB 1SAP170902R0101 CM579-ETHCAT Communication Module?

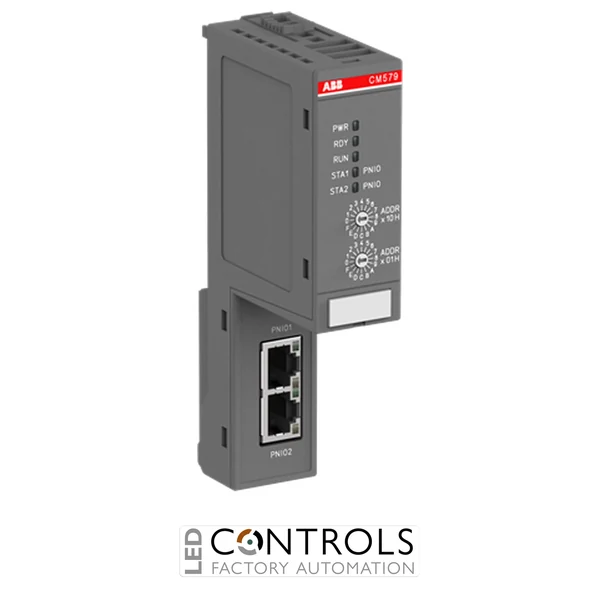

The ABB 1SAP170902R0101, type designation CM579-ETHCAT, is an industrial EtherCAT master communication module designed for integration with the ABB AC500 programmable logic controller platform. It expands an AC500 automation system with high-speed EtherCAT communications, enabling the PLC to exchange process and control data with compatible EtherCAT slave devices.
The CM579-ETHCAT provides two RJ45 Industrial Ethernet interfaces with an integrated 2-port switch and supports 10/100 Mbit/s Ethernet communication. Full-duplex and half-duplex operation with auto-sensing helps simplify network integration, while a dedicated communication processor allows the module to handle EtherCAT communications independently of the main PLC processor.
Communication with the AC500 CPU is handled through 8 kB dual-port memory, and the module incorporates 256 kB Flash memory for its communication functions. Its compact 28 mm width makes the CM579-ETHCAT suitable for control cabinets where installation space is limited while providing powerful network connectivity for machinery, motion control and factory automation applications.
Key Advantages
- Dedicated EtherCAT master communication module for ABB AC500 PLC systems.
- 10/100 Mbit/s Ethernet communication for fast industrial data exchange.
- Two RJ45 Ethernet connections simplify EtherCAT network installation.
- Integrated 2-port Ethernet switch supports convenient network topology.
- Dedicated communication processor helps manage network communications independently.
- 8 kB dual-port memory provides the interface between the module and AC500 CPU.
- Compact 28 mm wide design minimises control cabinet space requirements.
Key Features
- ABB AC500 CM579-ETHCAT communication module.
- Operates as an EtherCAT master.
- 2 Industrial Ethernet interfaces.
- 2 × RJ45 connectors.
- 10/100 Mbit/s data transmission.
- Full-duplex and half-duplex communication with auto-sensing.
- Integrated 2-port switch.
- 8 kB dual-port memory interface to the CPU.
- Dedicated processor for communication functions.
- 256 kB Flash memory.
- IP20 degree of protection.
- Designed for integration with ABB AC500 PLC systems.
High-Speed EtherCAT Communication for Industrial Automation
EtherCAT is an industrial Ethernet technology designed for fast, deterministic communication between automation controllers and distributed devices. As the EtherCAT master, the ABB CM579-ETHCAT manages communication with compatible slave devices, making it suitable for applications where rapid and coordinated exchange of control data is required.
The CM579-ETHCAT combines two Ethernet ports, an integrated switch and its own communication processor within the modular ABB AC500 architecture. This allows machine builders and automation engineers to add EtherCAT connectivity to compatible AC500 control systems for applications involving distributed I/O, drives, motion equipment and other EtherCAT-enabled industrial devices.
Typical Applications
- Industrial automation and control systems.
- EtherCAT-based machine networks.
- Motion control and coordinated machinery.
- Robotics and automated handling systems.
- Packaging and production machinery.
- Distributed I/O and industrial device networks.
- Factory automation and manufacturing equipment.
- OEM machine building using ABB AC500 PLC systems.
