Why Choose the ABB DA502-XC Digital/Analogue I/O Module?

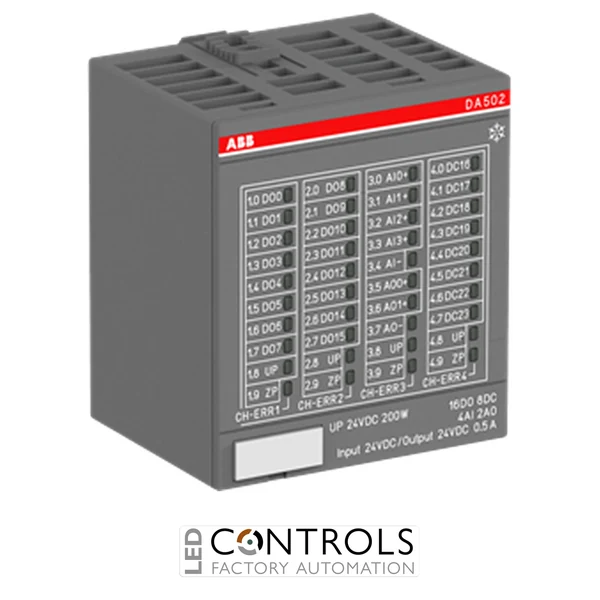

The ABB DA502-XC is a versatile digital and analogue input/output expansion module designed for ABB AC500-XC and S500-XC industrial automation systems. It combines high-density transistor outputs, configurable digital I/O and analogue signal processing within a single module, making it well suited to mixed-signal machine and process control applications.
The DA502-XC provides 16 digital transistor outputs at 24 V DC, eight configurable 24 V DC digital input/output channels, four analogue inputs and two analogue outputs. The digital outputs and configurable output channels support loads up to 0.5 A per channel, while the analogue section supports voltage, current and RTD measurement together with voltage and current output signals.
As the XC version of the DA502, the module is designed for operation under extreme ambient conditions while retaining the flexible mixed-I/O functionality of the standard model. Integrated fast counter functionality, module-wise galvanic isolation and modular S500-XC construction make it a practical solution for demanding industrial automation installations.
Key Advantages
- Combines digital outputs, configurable digital I/O and analogue I/O within one compact S500-XC module.
- XC construction for operation in extreme ambient conditions.
- 16 transistor outputs at 24 V DC provide high-density actuator control.
- 8 configurable 24 V DC digital input/output channels provide additional system flexibility.
- Digital outputs support loads up to 0.5 A per channel.
- 4 analogue inputs support voltage, current and RTD measurement.
- 2 analogue outputs support industrial voltage and current control signals.
- Integrated fast counter functionality supports high-speed machine signals.
Key Features
- ABB AC500-XC / S500-XC mixed digital and analogue I/O module.
- 16 digital transistor outputs at 24 V DC, maximum 0.5 A per channel.
- 8 configurable digital inputs/outputs at 24 V DC, maximum 0.5 A per output channel.
- 4 configurable analogue inputs for voltage, current and RTD signals.
- 2 configurable analogue outputs for voltage and current signals.
- 12-bit analogue resolution including sign.
- Integrated fast counter using selected configurable digital channels.
- Dedicated digital output can be used by specific fast-counter operating modes.
- Module-wise galvanic isolation for reliable industrial signal interfacing.
- LED indication provides convenient I/O and diagnostic status information.
- External 24 V DC process supply for digital output loads.
- DIN rail installation through an ABB S500 terminal unit.
Flexible Mixed-Signal Output Control for Industrial Automation
The ABB DA502-XC combines a substantial number of digital actuator outputs with configurable digital channels and analogue signal interfaces. This allows solenoid valves, relays, contactors and other 24 V DC loads to be controlled alongside analogue transmitters, RTD sensors and analogue-controlled equipment without requiring separate modules for every signal type.
Its integrated fast counter adds high-speed signal processing using selected configurable digital channels, with dedicated counter operating modes capable of controlling either DC18 or DO0. Combined with the XC environmental design and modular S500 architecture, this makes the DA502-XC suitable for compact automation systems that require both flexible signal handling and dependable operation in demanding environments.
Typical Applications
- Mixed digital and analogue industrial I/O systems.
- ABB AC500-XC PLC expansion installations.
- Machine and factory automation.
- Solenoid valve and relay control systems.
- Process measurement and analogue control.
- Temperature monitoring using RTD sensors.
- Conveyor and material handling equipment.
- Packaging and production machinery.
- Fast counting and pulse acquisition applications.
- Industrial installations exposed to extreme ambient conditions.
