Why Choose the ABB DA502 1SAP250800R0001 Digital/Analogue I/O Module?

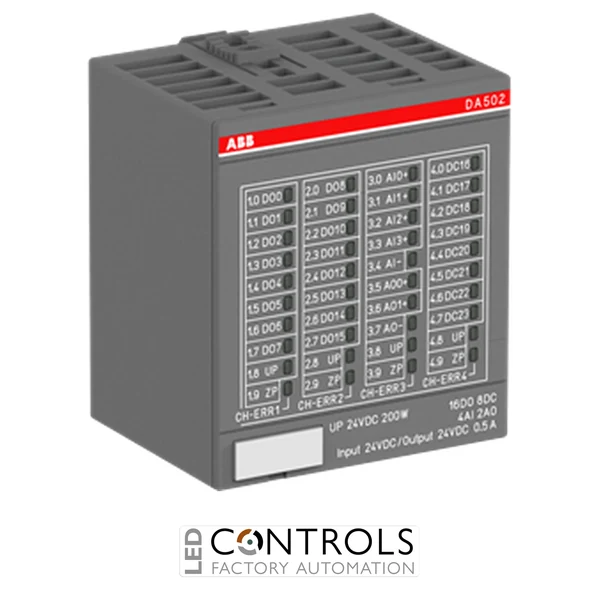

The ABB 1SAP250800R0001, type designation DA502, is an S500 digital and analogue I/O module designed for ABB AC500 automation systems. It combines digital switching and analogue signal processing in a single compact module, providing 16 digital outputs, 8 configurable digital input/output channels, 4 analogue inputs and 2 analogue outputs.
The digital channels operate at 24 V DC, with digital outputs rated at up to 0.5 A. The four analogue inputs support voltage, current and RTD signals, while the two analogue outputs support voltage and current signals. Analogue conversion provides 12-bit plus sign resolution, making the DA502 suitable for mixed measurement and control applications.
Designed for the modular ABB AC500 / S500 platform, the DA502 provides a space-efficient way to combine multiple field signal types within one I/O station. It can be used with TU515 or TU516 terminal units and is well suited to machine automation, process control, building automation and distributed industrial control applications.
Key Advantages
- Combines digital and analogue I/O within one S500 module.
- Provides 16 dedicated digital outputs.
- Includes 8 individually configurable digital input/output channels.
- Provides 4 analogue inputs for voltage, current and RTD signals.
- Includes 2 analogue outputs for voltage and current signals.
- Digital outputs operate at 24 V DC / 0.5 A.
- 12-bit plus sign analogue resolution supports accurate industrial measurement and control.
- Compatible with ABB AC500 / S500 automation systems.
Key Features
- ABB DA502 S500 digital/analogue I/O module.
- 16 digital outputs.
- 8 configurable DI/DO channels.
- 4 analogue inputs.
- 2 analogue outputs.
- Digital I/O operating voltage: 24 V DC.
- Digital output rating: 0.5 A.
- Analogue inputs support voltage, current and RTD measurement.
- Analogue outputs support voltage and current signals.
- Analogue resolution: 12-bit plus sign.
- Supports 1-wire functionality.
- Suitable for use with TU515 or TU516 terminal units.
Mixed Digital and Analogue I/O for AC500 Systems
Mixed I/O modules allow an automation system to interface with several different types of field equipment without requiring separate modules for every signal category. Digital channels can handle switches, sensors, indicators and actuators, while analogue channels can acquire or generate continuously variable process signals used for measurement and control.
The ABB DA502 combines 16 digital outputs, 8 configurable digital I/O channels, 4 analogue inputs and 2 analogue outputs within one S500 module. Its analogue inputs accommodate voltage, current and RTD measurements, while its analogue outputs provide voltage and current control signals, making the module particularly versatile for industrial automation applications requiring mixed field I/O.
Typical Applications
- ABB AC500 PLC automation systems.
- Industrial machine control.
- Process measurement and control.
- Temperature monitoring using RTD sensors.
- Production and assembly machinery.
- Material handling and conveyor systems.
- Building automation systems.
- Distributed industrial I/O stations.
- OEM machinery and control panels.
