Why Choose the ABB FM502-CMS-XC Condition Monitoring Module?

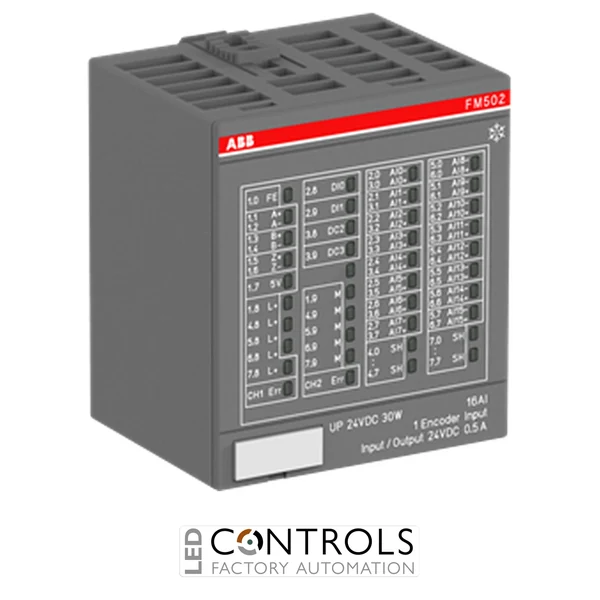

The ABB FM502-CMS-XC is a high-performance AC500-XC condition monitoring function module designed for condition monitoring, precision measurement, fast protection and high-speed data logging in demanding industrial environments. It combines 16 synchronously sampled analogue inputs with digital I/O and encoder functionality, providing an integrated platform for monitoring vibration, current, voltage and rotational speed.
The module's 16 analogue channels provide 24-bit ADC resolution and sampling rates of up to 50 kSPS per channel. Each channel can be configured for IEPE sensors or ±10 V signals, enabling direct connection of standard condition-monitoring sensors and measurement equipment. Individual measurement configuration, including start, stop and trigger functions, allows the module to be adapted to a wide range of diagnostic applications.
As part of ABB's AC500-XC Condition Monitoring System, the FM502-CMS-XC is designed for harsh industrial environments and integrates directly with the AC500 platform using a compatible TF5x1 function module terminal base and PM592-ETH-XC CPU. The module also provides 128 MB local user memory, high-speed encoder inputs and automatic generation of compact WAV measurement files. The ABB order code is 1SAP460400R0001.
Key Advantages
- Integrated condition monitoring and fast protection for industrial machinery.
- 16 synchronously sampled 24-bit analogue inputs for precision measurements.
- Sampling rates up to 50 kSPS per channel for high-frequency signal acquisition.
- Supports IEPE and ±10 V analogue inputs for flexible sensor integration.
- Integrated high-speed encoder functionality for rotational and speed measurements.
- 128 MB local user memory for high-speed measurement data.
- XC construction designed for demanding industrial environmental conditions.
Key Features
- ABB AC500-XC Condition Monitoring System function module.
- 16 synchronously sampled analogue inputs.
- 24-bit ADC resolution.
- Sampling rate adjustable up to 50 kSPS per channel.
- High-bandwidth measurement capability up to 20 kHz.
- Analogue channels configurable for IEPE or ±10 V operation.
- 2 digital inputs and 2 digital channels.
- Integrated encoder interface supporting 5 V and 24 V encoder signals.
- Encoder frequency capability up to 300 kHz.
- Supports incremental and absolute SSI encoder configurations.
- Up to 1 MHz SSI operation.
- 12 encoder and counter operating modes.
- Automatic generation of compact WAV measurement files.
- Configuration and CMS libraries available through ABB Ability Automation Builder.
Advanced Condition Monitoring for Industrial Machinery
Condition monitoring enables machinery health to be assessed continuously by measuring signals such as vibration, current, voltage and rotational speed. The ABB FM502-CMS-XC captures these signals at high resolution and high sampling rates, allowing automation systems to identify changes in machine behaviour and support predictive maintenance, diagnostics and fast protection strategies.
The module integrates condition monitoring directly into the ABB AC500-XC automation platform. Measurement values remain available in the CPU I/O image for fast protection functions, while recorded measurements can be transferred as compact WAV files for further analysis. Together with ABB Ability Automation Builder libraries and signal-processing tools, this provides a flexible platform for customised machine diagnostic applications.
Typical Applications
- Vibration monitoring of motors, pumps and rotating machinery.
- Predictive and condition-based maintenance systems.
- Bearing and mechanical condition monitoring.
- Current and voltage waveform measurement.
- High-speed industrial data logging.
- Rotational speed and encoder monitoring.
- Fast machine protection and diagnostic systems.
- Industrial installations operating in demanding environmental conditions.
