Why Choose the ABB 1SAP122600R0172 PM5012-T-ETH?

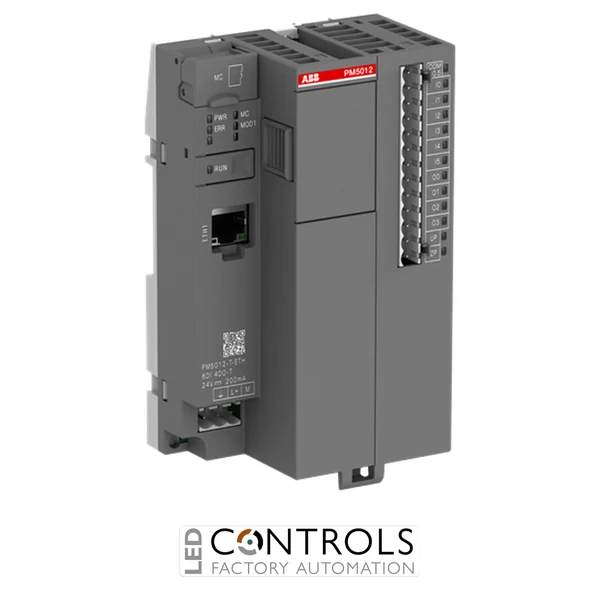

The ABB 1SAP122600R0172, also known as the PM5012-T-ETH, is a basic AC500-eCo V3 processor module designed for compact industrial automation and PLC control applications. It combines 1 MB memory, six 24 V DC digital inputs, four 24 V DC transistor outputs and an integrated Ethernet interface in a compact CPU module.
As a revision 1 AC500-eCo V3 processor, the PM5012-T-ETH provides one option board slot for extending system functionality. The transistor output configuration makes it suitable for controlling compatible actuators and switching loads in machine automation and other industrial control systems.
ABB 1SAP122600R0172 operates from a 24 V DC supply and provides a practical PLC solution where compact dimensions, integrated digital I/O and Ethernet communication are required. This active revision replaces the earlier 1SAP122600R0072 processor while retaining the same core functionality.
Key Advantages
- AC500-eCo V3 processor module for compact PLC applications
- 1 MB total memory
- Six integrated 24 V DC digital inputs
- Four integrated 24 V DC transistor outputs
- Integrated Ethernet interface
- One option board slot for functional expansion
- 24 V DC power supply
- Compact CPU design for space-conscious control panels
- Suitable for machine and industrial automation
- Revision 1 design with current AC500-eCo V3 compatibility
Key Features
- ABB AC500-eCo V3 processor module
- Type designation: PM5012-T-ETH
- Basic CPU configuration
- 1 MB memory
- 6 digital inputs, 24 V DC
- 4 transistor digital outputs, 24 V DC
- Ethernet interface
- 1 option board slot
- 24 V DC supply
- Compact 74 mm × 135 mm × 82 mm format
- Revision 1 processor design
- Compatible with Automation Builder V2.6 or higher for the revised processor generation
Industrial Automation and Control Applications
The ABB PM5012-T-ETH provides a compact PLC controller for automation systems that require integrated digital I/O and Ethernet communication. Six digital inputs can interface with field sensors and switching devices, while four transistor outputs provide control signals for compatible actuators and machine components.
Its single option board slot allows the 1SAP122600R0172 to be extended where additional functionality is required. The compact AC500-eCo V3 architecture makes it suitable for OEM machines, compact control cabinets and distributed automation applications where integrated PLC control and networking are required.
Typical Applications
- Compact machine automation
- OEM machine control
- Factory automation
- Industrial PLC control panels
- Conveyor and material handling systems
- Packaging machinery
- Production equipment
- Motor and actuator control
- Sensor and digital signal monitoring
- Ethernet-connected automation systems
- Compact distributed control applications
