Why Choose the ABB PM5032-T-ETH 1SAP123400R0172 AC500-eCo V3 Processor Module?

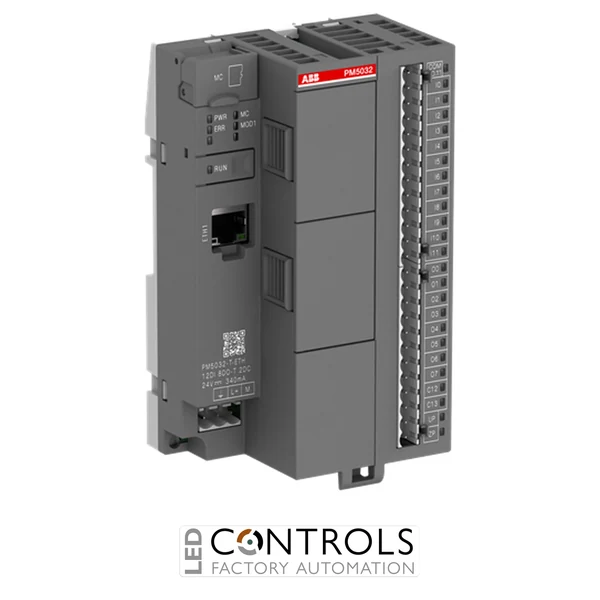

The ABB 1SAP123400R0172, type designation PM5032-T-ETH, is an AC500-eCo V3 programmable logic controller processor module designed for compact machine control and industrial automation applications. It combines CPU processing, onboard digital I/O, Ethernet communications and expansion capability within a compact PLC platform.
The PM5032-T-ETH provides 2 MB memory, 12 digital inputs, 8 transistor digital outputs and 2 configurable digital inputs/outputs. The digital I/O operates at 24 V DC, with the eight dedicated transistor outputs rated at 0.5 A, allowing the processor to interface directly with compatible sensors, switches, relays and other industrial control devices.
An integrated Ethernet interface provides network connectivity, while 2 option-board slots allow the controller to be extended for additional application requirements. The processor also incorporates a real-time clock and micro memory card support, making it a versatile compact PLC for standalone machinery and networked automation systems.
Key Advantages
- Compact AC500-eCo V3 PLC CPU with integrated digital I/O and Ethernet.
- 2 MB memory supports machine-control programs and application data.
- 12 digital inputs provide direct connectivity for 24 V DC field signals.
- 8 transistor outputs rated at 24 V DC, 0.5 A provide fast solid-state switching.
- 2 configurable digital I/O channels can be assigned as inputs or outputs according to the application.
- Integrated Ethernet interface supports networked automation architectures.
- 2 option-board slots provide additional expansion flexibility.
- Real-time clock and micro memory card support enhance data handling and controller functionality.
Key Features
- ABB type designation: PM5032-T-ETH.
- ABB product ID: 1SAP123400R0172.
- Part of the ABB AC500-eCo V3 PLC range.
- 2 MB memory.
- 12 digital inputs at 24 V DC.
- 8 transistor digital outputs at 24 V DC.
- 0.5 A rated current per dedicated digital output.
- 2 configurable 24 V DC digital input/output channels.
- Integrated Ethernet interface.
- 2 option-board slots.
- Integrated real-time clock.
- Micro memory card support.
- Expandable AC500-eCo architecture.
- Designed for 24 V DC industrial control systems.
- Suitable for compact machine and process automation.
Integrated PLC, Digital I/O and Ethernet Control
The ABB PM5032-T-ETH integrates the processor and essential machine I/O into one compact AC500-eCo V3 module. Its 12 digital inputs, 8 transistor outputs and 2 configurable digital I/O channels allow many compact machines to be controlled without requiring separate digital I/O modules, helping reduce panel space and system complexity.
The integrated Ethernet interface enables the processor to participate in compatible industrial Ethernet networks, while two option-board slots provide a route for further system expansion. With 2 MB memory, real-time clock functionality and micro memory card support, the PM5032-T-ETH provides a scalable control platform for machine builders and automation integrators requiring a compact network-capable PLC.
Typical Applications
- Compact industrial machinery.
- Packaging and production equipment.
- Conveyor and material handling systems.
- Automated assembly machinery.
- Pump and fan control systems.
- Building and infrastructure automation.
- OEM machine control panels.
- Ethernet-connected automation systems.
- Standalone PLC control applications.
- Distributed industrial automation systems.
