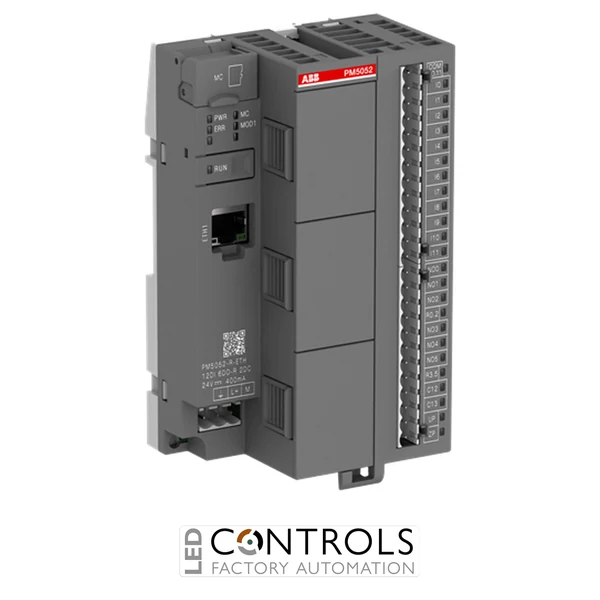

ABB PM5052-R-ETH 1SAP124100R0072 AC500-eCo Processor Module
The ABB PM5052-R-ETH, order code 1SAP124100R0072, is a standard CPU processor module for the AC500-eCo V3 programmable logic controller platform. It provides 4 MB of memory, 12 digital inputs, 6 relay outputs, 2 configurable digital channels, an Ethernet interface and three option board slots.
Designed for compact industrial automation systems, the PM5052-R-ETH combines PLC processing with integrated digital I/O and Ethernet connectivity in a single processor module. Its 24 V DC supply and onboard I/O make it suitable for machine control, sequencing, monitoring and general-purpose automation applications.
The 1SAP124100R0072 is processor module revision 0 and is identified by ABB as a Classic lifecycle product, with revision 1 order code 1SAP124100R0172 listed as its replacement. The PM5052-R-ETH provides six relay outputs with normally-open contacts and supports configurable high-speed functions through its digital channels.
Key Advantages
- 4 MB processor memory for PLC control applications
- Integrated 12-channel 24 V DC digital input section
- Six relay outputs with normally-open contacts
- Two configurable digital channels for additional control functions
- Integrated Ethernet interface for industrial communication
- Three option board slots for extending controller functionality
- 24 V DC processor module supply
- Integrated onboard I/O reduces the need for additional modules in compact installations
- Part of the ABB AC500-eCo V3 PLC family
Key Features
- Manufacturer: ABB
- Product: PM5052-R-ETH
- Order code: 1SAP124100R0072
- Product type: Standard CPU / processor module
- PLC platform: AC500-eCo V3
- Memory: 4 MB
- Digital inputs: 12 × 24 V DC
- Relay outputs: 6 normally-open outputs
- Configurable digital channels: 2
- Ethernet: 1 integrated Ethernet interface
- Option board slots: 3
- Supply voltage: 24 V DC
- Lifecycle status: Classic, processor module revision 0
PLC Control & Automation
The ABB PM5052-R-ETH provides a compact PLC control solution for automation systems requiring integrated digital I/O, relay switching and Ethernet communication. Its 12 digital inputs can be used for sensors, switches and machine status signals, while the six relay outputs provide galvanically isolated switching suitable for a range of AC and DC control loads.
The two configurable digital channels add further flexibility for control applications, including fast counter, encoder, PWM and PTO-related functions depending on configuration. The three option board slots allow the controller to be extended with additional ABB option modules as system requirements develop.
Typical Applications
- Industrial machine control
- Factory automation systems
- Material handling equipment
- Conveyor and process control
- Packaging machinery
- Building and equipment automation
- Control panels and compact PLC systems
- Sensor and actuator monitoring
- General-purpose sequence and logic control
