Why Choose the ABB 1SAP131000R0278 PM5630-2ETH Processor Module?

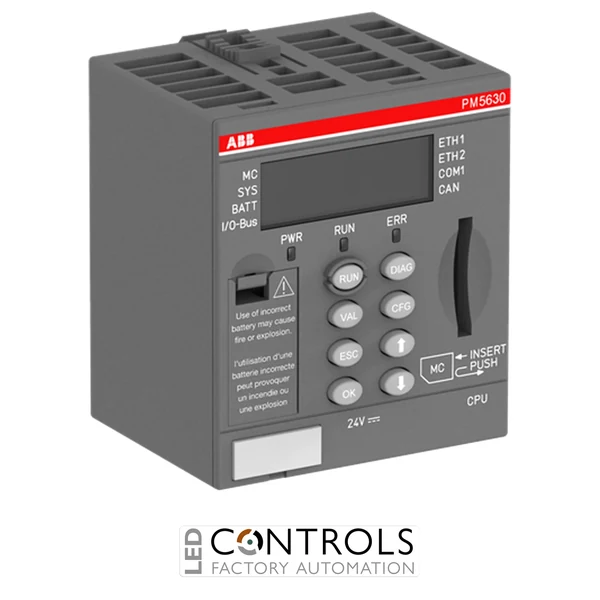

The ABB 1SAP131000R0278, type designation PM5630-2ETH, is an AC500 programmable logic controller (PLC) processor module designed for industrial automation, machine control and distributed control applications. As part of the ABB AC500 PLC platform, it combines processing capability, integrated communications and local diagnostic functions in a compact modular controller.
The PM5630-2ETH provides 8 MB memory together with two Industrial Ethernet interfaces and integrated serial and CAN communications. This range of interfaces allows the processor to communicate with automation networks, operator interfaces, drives, remote equipment and other industrial devices while providing a flexible platform for machine and process automation.
Operating from a nominal 24 V DC supply, with a specified supply range of 20.4–28.8 V DC, the module is designed for installation as part of an AC500 control system. An integrated display supports local status indication and diagnostics, helping engineers during commissioning, operation and troubleshooting.
Key Advantages
- Compact ABB AC500 PLC processor module for industrial automation systems.
- 8 MB memory for automation and control applications.
- Integrated dual Ethernet interfaces for industrial networking.
- Additional serial and CAN communications provide flexible system integration.
- Integrated display supports convenient diagnostics and status monitoring.
- 24 V DC operation suits standard industrial control systems.
- Modular AC500 architecture enables expansion to suit machine and process requirements.
Key Features
- ABB AC500 PM5630-2ETH processor module.
- 8 MB memory.
- 2 Ethernet interfaces for industrial communications.
- Integrated RS232/RS485 serial communication capability.
- Integrated CAN interface.
- Built-in display for diagnostics and status information.
- 24 V DC rated voltage.
- 20.4–28.8 V DC supply voltage range.
- IP20 degree of protection.
- Designed for use within modular ABB AC500 automation systems.
Flexible PLC Control for Industrial Automation
PLC processor modules such as the ABB PM5630-2ETH execute automation programs and coordinate communications between equipment throughout an industrial control system. The combination of processing resources and integrated network interfaces allows the controller to manage machinery, production equipment and distributed automation devices from a central control platform.
The AC500 platform is designed around a modular architecture, allowing control systems to be configured and expanded according to application requirements. The PM5630-2ETH's Ethernet, serial and CAN connectivity makes it suitable for integrating different automation devices and communication technologies, while its integrated display provides accessible diagnostic and operating information at the controller.
Typical Applications
- Industrial machinery and machine automation.
- Manufacturing and production lines.
- Material handling and conveyor systems.
- Process automation and control systems.
- Building and infrastructure automation.
- Distributed industrial control applications.
- OEM machinery and automation equipment.
