Why Choose the ABB 1SAP341000R0278 PM5650-2ETH-XC AC500-XC Processor Module?

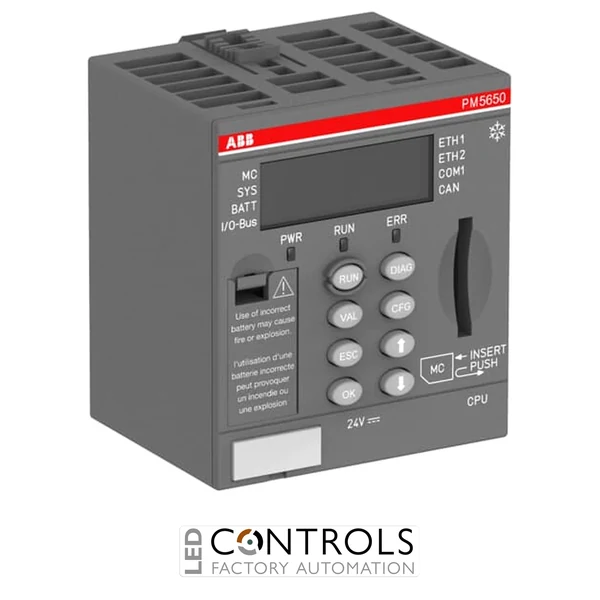

The ABB 1SAP341000R0278, type designation PM5650-2ETH-XC, is a high-performance AC500-XC V3 programmable logic controller CPU designed for demanding industrial automation applications. It combines substantial program and data memory with integrated Ethernet, serial and CAN communications, providing a flexible controller platform for machinery, process systems and infrastructure automation.
The PM5650-2ETH-XC provides 80 MB of program, data and web memory and operates from a 24 V DC supply. Integrated communications include 2 Ethernet interfaces, 1 configurable RS232/RS485 serial interface and 1 CAN interface. The Ethernet interfaces support configurable industrial communication protocols, enabling the CPU to integrate with modern industrial networks and supervisory systems.
As an eXtreme Conditions (XC) controller, the PM5650-2ETH-XC is engineered for applications where environmental conditions are more demanding than conventional cabinet installations. An integrated LCD display and SD-card slot simplify local diagnostics and application management, while minimum instruction times of 0.010 µs for bit, word and floating-point operations provide fast PLC execution for complex automation tasks.
Key Advantages
- 80 MB program, data and web memory for demanding automation applications.
- 2 integrated Ethernet interfaces provide flexible industrial network connectivity.
- Supports configurable Ethernet protocols for integration into modern automation architectures.
- 1 configurable RS232/RS485 serial interface for programming and device communications.
- 1 CAN interface supports CAN-based industrial networking.
- Fast 0.010 µs minimum bit, word and floating-point instruction times.
- Integrated SD-card slot and LCD display support application management and diagnostics.
- eXtreme Conditions construction for demanding industrial environments.
Key Features
- ABB PM5650-2ETH-XC AC500-XC V3 PLC CPU.
- 80 MB program, data and web memory.
- 24 V DC supply.
- 2 × Ethernet interfaces.
- Configurable Ethernet industrial communication protocols.
- 1 × RS232/RS485 configurable serial interface.
- 1 × CAN interface with CANopen capability.
- Integrated OPC UA server functionality.
- Integrated web server functionality.
- Support for IEC 60870-5-104 communications.
- SD-card slot for compatible removable storage.
- Integrated LCD display for local status and diagnostics.
- Designed for use with dedicated TB56xx-2ETH terminal bases.
- eXtreme Conditions (XC) version for demanding installations.
High-Performance PLC Control and Industrial Networking
The ABB PM5650-2ETH-XC combines high-speed PLC processing with multiple integrated communication interfaces, allowing machine control, process logic and network communications to be handled within a single AC500-XC V3 controller. Its dual Ethernet architecture can support industrial protocols such as PROFINET IO Controller, EtherCAT Master and EtherNet/IP according to the configured system and applicable licences.
The additional RS232/RS485 interface supports programming, Modbus and ASCII communication functions, while the CAN interface provides CANopen connectivity. Together with 80 MB of memory, an SD-card slot, integrated display and XC construction, these capabilities make the PM5650-2ETH-XC suitable for scalable control applications requiring both processing performance and extensive industrial communications.
Typical Applications
- High-performance industrial machine control.
- ABB AC500-XC V3 PLC installations.
- Process automation and production systems.
- PROFINET, EtherCAT and EtherNet/IP network integration.
- CANopen automation networks.
- Modbus and serial device communications.
- Infrastructure and utility automation.
- OEM machinery and production equipment.
- Industrial automation in demanding environmental conditions.
