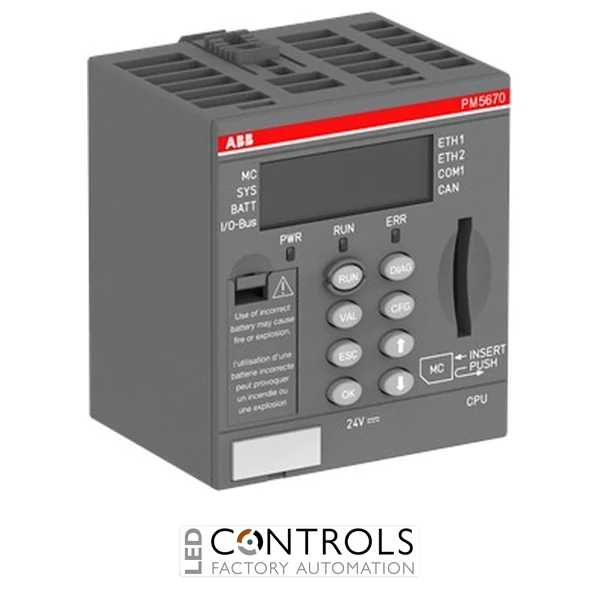

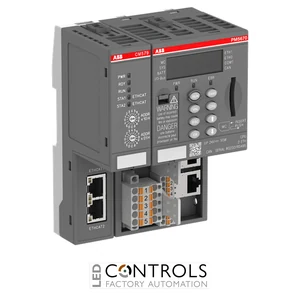

ABB PM5670-2ETH 1SAP151000R0278 AC500 Processor Module
The ABB PM5670-2ETH, order code 1SAP151000R0278, is a high-performance processor module for the AC500 V3 programmable logic controller platform. It provides 160 MB of memory, two independent onboard Ethernet interfaces, RS-232/RS-485 serial communication, CAN connectivity and an integrated display.
Designed for demanding industrial automation applications, the PM5670-2ETH combines fast PLC processing with flexible industrial networking. Its two Ethernet interfaces can support independent communication networks, while the serial and CAN interfaces provide additional connectivity for field devices, drives, controllers and distributed automation equipment.
The PM5670-2ETH operates from a 24 V DC supply and includes a memory card slot for additional storage. Its integrated display supports local monitoring and operation, while the AC500 modular architecture allows the processor to be used with compatible terminal bases and I/O modules.
Key Advantages
- 160 MB processor memory for demanding PLC applications
- Two independent onboard Ethernet interfaces
- Ethernet communication supporting configurable industrial protocols
- Integrated RS-232/RS-485 serial communication
- Integrated CAN interface for compatible automation networks
- Integrated display for local status and diagnostics
- Memory card slot for program and data storage
- Fast 0.002 µs minimum cycle time for binary, word and floating-point instructions
- 24 V DC operation
- Compact modular AC500 V3 architecture
Key Features
- Manufacturer: ABB
- Product: PM5670-2ETH
- Order code: 1SAP151000R0278
- PLC family: AC500 V3
- Product type: Processor module
- Memory: 160 MB
- User program code and data allocation: 32 MB within the specified memory architecture
- Ethernet: 2 independent RJ45 interfaces
- Serial communication: 1 × RS-232/RS-485
- CAN: 1 integrated interface
- Display: Integrated
- Memory card: Supported
- Rated supply voltage: 24 V DC
- Supply voltage range: 20.4–28.8 V DC
- Degree of protection: IP20
PLC Control & Automation
The ABB PM5670-2ETH provides a high-performance processing platform for AC500 V3 automation systems. Its 160 MB memory capacity and fast instruction execution make it suitable for complex PLC programs, machine sequencing, process control and data-intensive automation tasks.
The two independent Ethernet interfaces provide flexible network architecture for industrial communication. ABB documentation identifies support for configurable Ethernet protocols, including Ethernet/IP, with integrated web server, IEC 60870-5-104 and OPC UA server capabilities available according to the selected configuration and licensing.
The integrated RS-232/RS-485 interface provides serial connectivity, while the CAN interface supports compatible CAN-based devices and automation networks. The display provides local controller information, and the memory card slot allows additional program and data storage within the AC500 control system.
Typical Applications
- Industrial machine control
- Factory automation systems
- High-performance PLC applications
- Process automation
- Production and assembly machinery
- Material handling systems
- Packaging machinery
- Distributed automation systems
- Ethernet-based industrial control networks
- CAN and serial communication applications
- General-purpose AC500 V3 installations
