Why Choose the ABB TA5211-TSPF-B Terminal Block Set?
The ABB TA5211-TSPF-B is a removable spring terminal block set designed for wiring the power supply and onboard I/O connections of ABB AC500-eCo Basic processor modules. With ABB order code 1SAP187400R0002, this terminal set is specifically intended for PM5012 series CPUs and provides convenient front-access spring connections for control cabinet wiring.

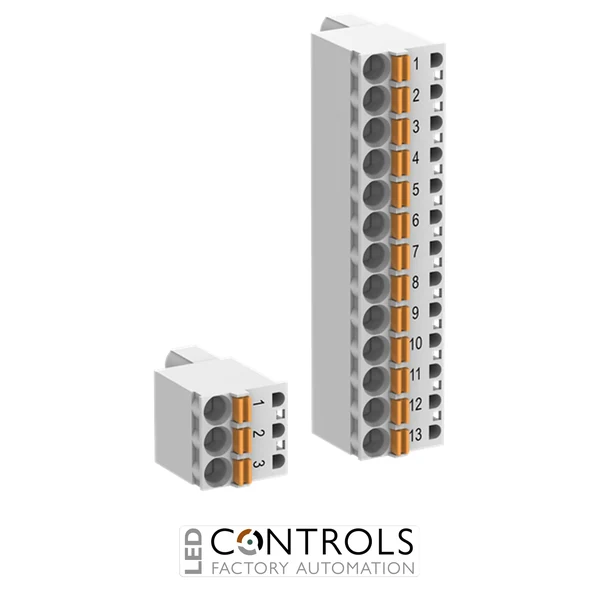

The TA5211-TSPF-B set contains one removable 3-pin terminal block for the power supply and one removable 13-pin terminal block for onboard I/O connections. Both use spring-front, cable-front connection technology with a 5.00 mm pitch, allowing conductors to be connected from the front of the PLC installation.
Designed for ABB AC500-eCo automation systems, the TA5211-TSPF-B accepts both solid and flexible copper conductors from 0.5–2.5 mm². The spring connection requires an 11 mm stripped conductor length and eliminates the need for screw-terminal tightening during normal wiring installation.
Key Advantages
- Genuine ABB terminal block set for AC500-eCo Basic CPUs.
- Designed specifically for PM5012 processor modules.
- Includes separate terminal blocks for power supply and onboard I/O wiring.
- Spring-front, cable-front connection simplifies control cabinet wiring.
- Supports solid and flexible copper conductors from 0.5–2.5 mm².
- Removable design assists installation, maintenance and replacement.
Key Features
- ABB AC500-eCo terminal block accessory.
- 1 × 3-pin removable terminal block for the power supply.
- 1 × 13-pin removable terminal block for onboard I/O connections.
- Spring-front / cable-front terminal technology.
- 5.00 mm terminal pitch.
- Suitable for 0.5–2.5 mm² solid copper conductors.
- Suitable for 0.5–2.5 mm² flexible copper conductors.
- 11 mm conductor stripping length.
Reliable Connections for AC500-eCo Automation
Removable terminal blocks provide the electrical interface between an industrial PLC and its field wiring. The ABB TA5211-TSPF-B provides dedicated connections for the AC500-eCo Basic processor power supply and onboard inputs and outputs while allowing the terminal blocks to be disconnected from the processor module when required.
The spring connection system is particularly useful in industrial control cabinets where efficient installation and dependable conductor retention are important. Front cable entry also helps make wiring accessible when the PLC is mounted alongside other automation equipment.
Typical Applications
- ABB AC500-eCo Basic PLC installations.
- PM5012 processor module wiring.
- Industrial machinery control panels.
- Factory automation systems.
- OEM machine building and control systems.
- PLC power supply and onboard I/O connections.
