Why Choose the ABB TA5212-TSPF Terminal Block Set?
The ABB TA5212-TSPF is a removable spring terminal block set designed for power supply and onboard I/O connections on ABB AC500-eCo Standard and Pro processor modules. With ABB part number 1SAP187400R0005, the set provides the approved terminal connections required for compatible PM50x2 CPUs in industrial automation and machine control applications.

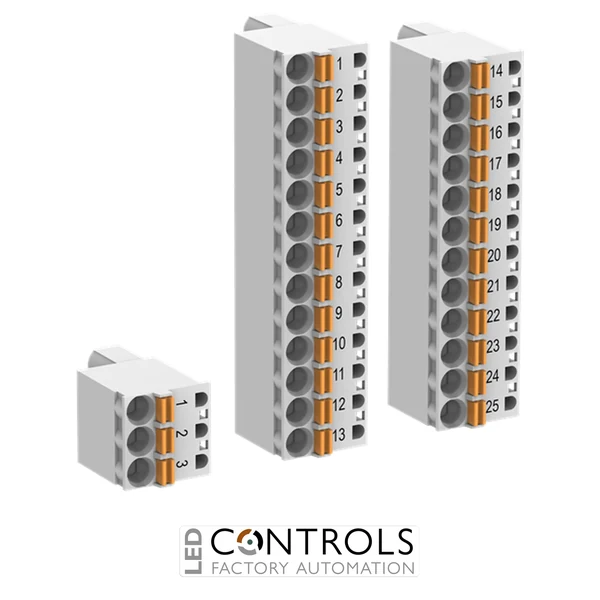

The TA5212-TSPF includes one removable 3-pin terminal block for the power supply, one removable 13-pin terminal block for onboard I/O and one removable 12-pin terminal block for onboard I/O. All three connectors use spring-front, cable-front connection technology with a 5.00 mm pitch, providing convenient front access to conductors during panel wiring and maintenance.
Designed for ABB AC500-eCo Standard and Pro CPUs including the PM5032, PM5052, PM5072, PM5082 and PM5092 families, the TA5212-TSPF accepts solid and flexible copper conductors from 0.5–2.5 mm². Its removable construction and spring-clamp connection system support efficient installation and dependable field wiring in industrial control cabinets.
Key Advantages
- Genuine ABB terminal block set for AC500-eCo Standard and Pro CPUs.
- Complete set with one power supply connector and two onboard I/O connectors.
- Spring-front, cable-front connection supports efficient control panel wiring.
- 5.00 mm terminal pitch across the included connectors.
- Supports solid and flexible copper conductors from 0.5–2.5 mm².
- Removable connectors simplify PLC installation, servicing and replacement.
Key Features
- ABB AC500-eCo terminal block accessory.
- 1 × 3-pin removable terminal block for the power supply.
- 1 × 13-pin removable terminal block for onboard I/O connections.
- 1 × 12-pin removable terminal block for onboard I/O connections.
- Spring-front / cable-front terminal technology.
- 5.00 mm terminal pitch.
- Suitable for 0.5–2.5 mm² solid copper conductors.
- Suitable for 0.5–2.5 mm² flexible copper conductors.
- 11 mm conductor stripping length.
- Compatible with AC500-eCo Standard and Pro processor modules.
Reliable Connections for AC500-eCo Automation
Removable terminal blocks provide the electrical interface between ABB AC500-eCo processor modules and their power and field wiring. The TA5212-TSPF provides separate connections for the processor power supply and onboard inputs and outputs, allowing the connectors to be removed from the CPU when installation or maintenance work is required.
The spring connection system provides secure conductor retention without conventional screw-terminal fastening. Front cable entry also makes the terminals accessible when the processor is installed alongside other automation components inside an electrical control cabinet, helping simplify machine wiring and ongoing servicing.
Typical Applications
- ABB AC500-eCo Standard PLC installations.
- ABB AC500-eCo Pro PLC installations.
- PM5032, PM5052, PM5072, PM5082 and PM5092 processor wiring.
- Industrial machinery control panels.
- Factory and process automation systems.
- OEM machine building and control systems.
- PLC power supply and onboard I/O connections.
