Why Choose the ABB TU582-S-XC Safety I/O Terminal Unit?

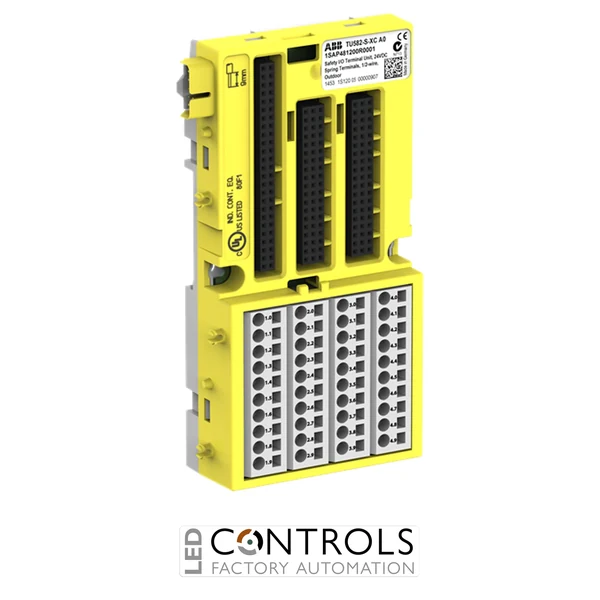

The ABB TU582-S-XC (1SAP481200R0001) is a robust S500-XC safety I/O terminal unit designed to provide the mounting and field-wiring interface for compatible ABB AC500-S safety I/O modules. Featuring spring-terminal connection technology and a 24 V DC design, the TU582-S-XC provides a dependable connection platform for functional safety applications in industrial automation.
As part of the ABB AC500-S / S500-XC functional safety platform, the TU582-S-XC is compatible with safety I/O modules including the DI581-S-XC safety digital input module, DX581-S-XC safety digital input/output module and AI581-S-XC safety analogue input module. Its modular construction allows safety I/O systems to be assembled efficiently while maintaining secure field connections.
The TU582-S-XC combines spring terminals with ABB's eXtreme Conditions (XC) design for demanding automation environments. With an IP20 degree of protection, an operating ambient temperature range of -30 to +70 °C and compact dimensions of approximately 135 × 67.5 × 28 mm, it is well suited to safety-related machine and process control installations.
Key Advantages
- Purpose-designed terminal unit for ABB safety I/O modules.
- Part of the ABB AC500-S / S500-XC functional safety platform.
- 24 V DC design suitable for industrial safety control systems.
- Spring-terminal connections provide secure and convenient field wiring.
- XC construction developed for extreme environmental conditions.
- Compact modular format simplifies integration into industrial control cabinets.
Key Features
- ABB TU582-S-XC S500-XC safety I/O terminal unit.
- Designed specifically for compatible ABB safety I/O modules.
- 24 V DC safety I/O terminal platform.
- Spring-terminal connection technology.
- Compatible with DI581-S-XC, DX581-S-XC and AI581-S-XC safety I/O modules.
- IP20 degree of protection.
- Operating ambient temperature range of -30 to +70 °C.
- XC version engineered for demanding industrial environments.
Reliable I/O Connectivity for Functional Safety Systems
Safety I/O terminal units provide the physical mounting and field-wiring interface required by safety input and output modules. The ABB TU582-S-XC uses spring-terminal technology to provide reliable electrical connections while supporting the modular construction and maintenance of AC500-S functional safety control systems.
The S500-XC safety I/O platform can be used with compatible ABB safety digital and analogue modules for monitoring and controlling safety-related machine functions. The TU582-S-XC adds ABB's XC environmental design to this modular architecture, making it particularly suitable for automation systems operating under challenging temperature and industrial environmental conditions.
Typical Applications
- ABB AC500-S and AC500-S-XC functional safety systems.
- Safety-related machine control installations.
- Emergency stop and machine safety systems with compatible safety I/O.
- Industrial process safety applications.
- Factory and production automation equipment.
- Outdoor and demanding industrial automation environments.
