Why Choose the Unitronics UAG-CX-XKPL600 Long-Range I/O Expansion Adapter Kit?
The Unitronics UAG-CX-XKPL600 is a long-range local I/O expansion adapter kit designed specifically for UniStream Built-in PLC controllers. As part of the advanced Uni-I/O expansion system, it enables controllers equipped with an I/O Expansion Jack to connect to additional rows of Uni-I/O modules located in remote control panels, machine sections and distributed automation installations.
Designed for machine builders, OEMs and automation engineers, the UAG-CX-XKPL600 includes an integrated power supply and a 6 metre expansion cable, providing reliable communication and power distribution between the controller and remotely mounted I/O assemblies. This makes it ideal for industrial automation projects where I/O equipment must be installed at greater distances from the PLC while maintaining dependable performance.

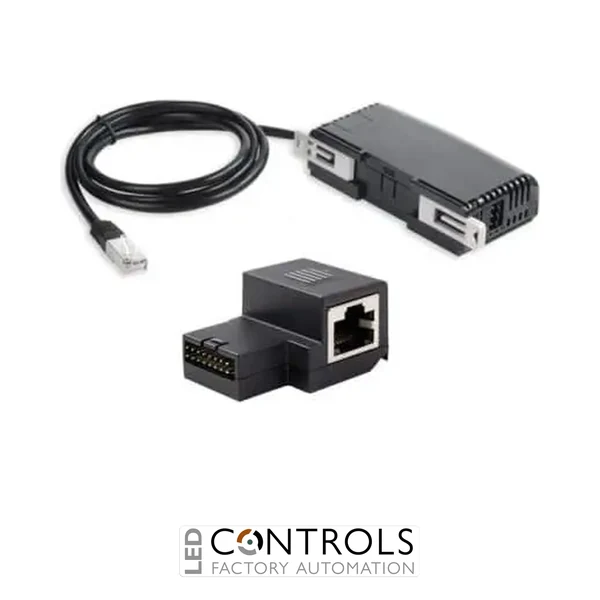

The kit comprises a base unit, an end unit and a connecting cable. Its integrated power supply supports up to 16 Uni-I/O modules, while multiple expansion adapters can be daisy-chained together to create highly scalable control systems without compromising communication performance.
Key Advantages
- Long-range I/O expansion for UniStream Built-in controllers.
- 6 metre expansion cable for remote and inter-cabinet installations.
- Integrated 12/24 V DC power supply.
- Supports up to 16 Uni-I/O modules.
- Ideal for distributed automation architectures.
- Compatible with controllers featuring an I/O Expansion Jack.
- Supports scalable and modular system expansion.
Key Features
- Unitronics UAG-CX-XKPL600 expansion kit.
- Compatible with UniStream Built-in PLC controllers.
- 6 m connecting cable.
- Integrated power supply.
- Supports up to 16 Uni-I/O modules.
- Long-range inter-cabinet communication.
- Base unit plugs directly into controller expansion jack.
- DIN rail mounted end unit.
- Power and Link status LED indicators.
- Daisy-chain capability for larger installations.
- IP20 / NEMA 1 protection rating.
Long-Range Expansion for Distributed Automation Systems
The UAG-CX-XKPL600 enables UniStream controllers to communicate with remote I/O assemblies located up to 6 metres away. This allows engineers to position I/O modules in separate cabinets or machine sections while maintaining fast local communication and significantly reducing field wiring complexity. The design is particularly beneficial for larger control panels, packaging machinery and manufacturing equipment.
Its integrated power supply supports up to 16 connected modules independently of the controller, helping create highly scalable automation systems. Up to five local expansion adapters may be daisy-chained together, allowing substantial I/O expansion across larger industrial installations.
Typical Applications
- Distributed I/O architectures.
- Multi-cabinet automation systems.
- Machine building and OEM equipment.
- Production line control systems.
- Process automation installations.
- Large UniStream control panels.
- Industrial automation projects requiring remote I/O placement.
