Why Choose the Unitronics UAG-XK125 Local Expansion Adapter Kit?
The Unitronics UAG-XK125 is a reliable short-range local expansion adapter kit designed for use with the Unitronics UniStream platform. It enables machine builders and automation engineers to extend Uni-I/O modules from a UniStream controller, providing greater flexibility when designing control panels and distributed I/O systems.

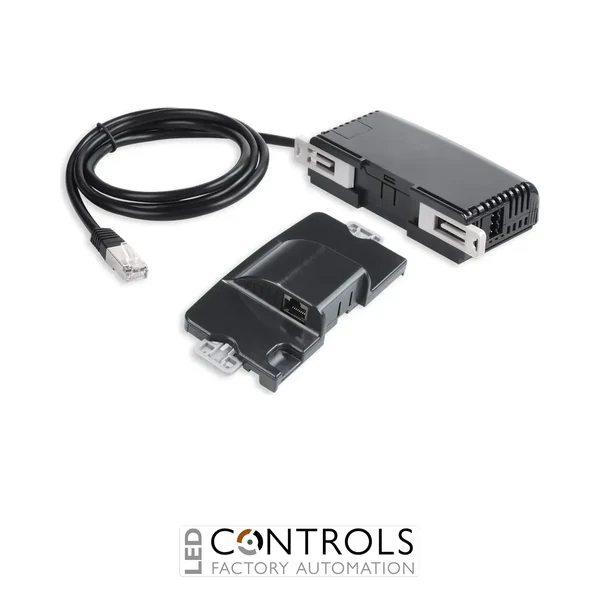

As part of the Unitronics UniStream expansion adapter range, the UAG-XK125 allows additional I/O modules to be connected via a robust local expansion network. The kit includes a base unit, end unit and connecting cable, making installation straightforward while maintaining reliable communication between controller and expansion modules.
Featuring a 1.25 metre expansion cable, DIN rail mounting capability and support for up to 8 Uni-I/O modules, the UAG-XK125 is ideal for industrial automation applications where additional panel space or flexible I/O positioning is required. The adapter operates without an integrated power supply and draws power directly from the connected UniStream controller.
Key Advantages
- Designed specifically for Unitronics UniStream local I/O expansion.
- 1.25 metre cable length for flexible installation.
- Supports up to 8 Uni-I/O modules.
- Simple DIN rail mounting design.
- Supplied as a complete kit with base unit, end unit and cable.
- Reliable communication between controller and expansion modules.
- Suitable for machine building and industrial automation applications.
Key Features
- Unitronics UniStream expansion adapter kit.
- Model: UAG-XK125.
- 125 cm (1.25 m) expansion cable.
- Short-range local expansion adapter.
- Supports up to 8 connected Uni-I/O modules.
- DIN rail mounting for base and end units.
- RJ45 communication connection.
- No integrated power supply required.
- Compatible with UniStream systems featuring DIN rail structures.
Flexible UniStream I/O Expansion
The UAG-XK125 allows UniStream controllers to communicate with additional Uni-I/O modules located elsewhere within the control cabinet. This provides greater flexibility for panel builders by simplifying wiring layouts and enabling more efficient use of available enclosure space.
By extending the local I/O network, engineers can create larger automation systems while maintaining reliable communication between the controller and connected modules. Multiple expansion adapters can also be used within supported UniStream architectures to accommodate growing system requirements.
Typical Applications
- Industrial control panels.
- Machine building and OEM equipment.
- Manufacturing automation systems.
- Material handling equipment.
- Packaging machinery.
- Process control applications.
- Distributed I/O installations.
