Why Choose the Unitronics UAG-XKPL1200 Long-Range Expansion Adapter Kit?

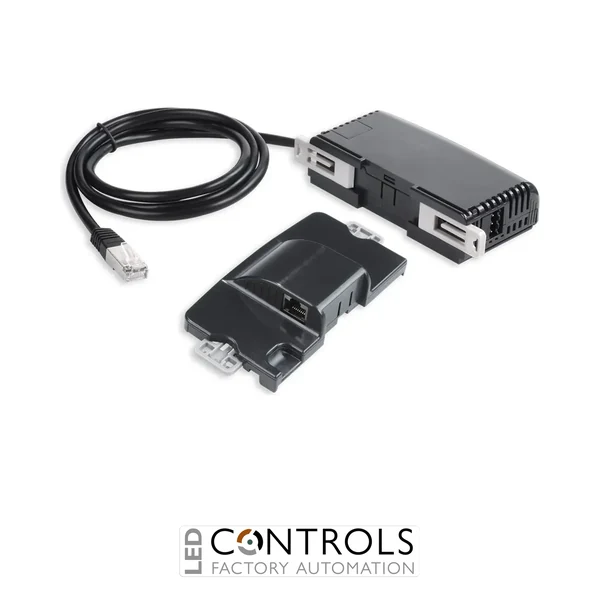

The Unitronics UAG-XKPL1200 is a high-performance long-range local I/O expansion adapter kit designed for the UniStream automation platform. It enables UniStream controllers and modular HMI systems to connect remote Uni-I/O modules over extended distances, allowing engineers to build larger and more flexible automation systems across multiple control cabinets.
As part of the advanced Unitronics UniStream expansion adapter range, the UAG-XKPL1200 features an integrated power supply and long-distance communication capability. This allows expansion modules to be installed further from the controller while maintaining reliable communication and power distribution throughout the system. The adapter is particularly useful for distributed automation architectures where additional I/O capacity is required in remote panel locations.
With a 12 metre expansion cable, support for up to 16 Uni-I/O modules, and DIN rail mounting for both base and end units, the UAG-XKPL1200 provides a scalable and reliable solution for industrial automation applications. The integrated power supply operates from a 12 V DC or 24 V DC source, ensuring dependable operation in demanding industrial environments.
Key Advantages
- Long-range I/O expansion for distributed automation systems.
- 12 metre communication cable for inter-cabinet installations.
- Integrated power supply for increased expansion capacity.
- Supports up to 16 Uni-I/O modules.
- Compatible with UniStream modular HMI and PLC platforms.
- DIN rail mounting for simple installation.
- Supports daisy-chaining of expansion adapters.
- Ideal for large machine and process automation systems.
Key Features
- Unitronics UniStream long-range expansion adapter kit.
- Model: UAG-XKPL1200.
- Integrated power supply.
- 1200 cm (12 m) expansion cable.
- Long-range local I/O expansion capability.
- Supports up to 16 Uni-I/O modules.
- RJ45 communication connections.
- DIN rail mounting for base and end units.
- Compatible with UniStream controllers featuring DIN rail structures.
- Supports expansion across multiple cabinets.
Expand UniStream Systems Across Multiple Cabinets
The UAG-XKPL1200 enables UniStream systems to extend I/O modules beyond the limitations of standard short-range expansion solutions. The 12 metre cable allows modules to be installed in separate control cabinets or remote sections of a machine while maintaining reliable communication with the controller.
Its integrated power supply supports up to 16 connected Uni-I/O modules independently of modules already connected directly to the controller. Multiple expansion adapters can also be daisy-chained, creating highly scalable automation architectures suitable for large industrial installations.
Typical Applications
- Large industrial automation systems.
- Multi-cabinet control installations.
- Machine building and OEM equipment.
- Process control applications.
- Manufacturing production lines.
- Material handling systems.
- Distributed I/O architectures.
- Infrastructure and utilities automation.
