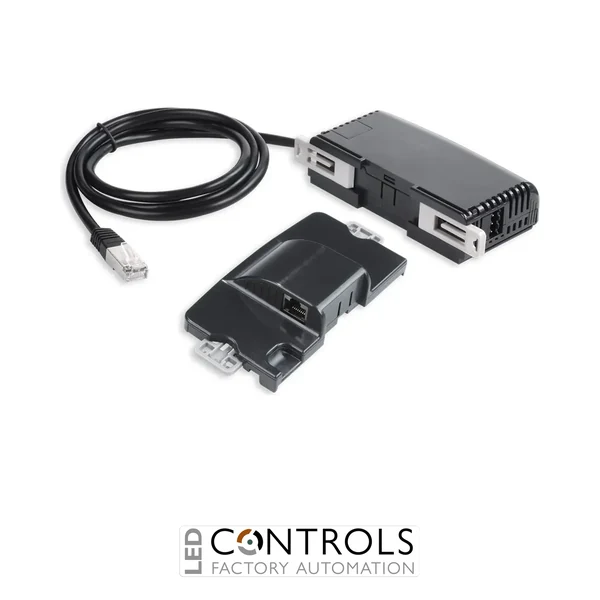

Why Choose the Unitronics UAG-XKPL1500 Long-Range Expansion Adapter Kit?
The Unitronics UAG-XKPL1500 is a professional-grade long-range local I/O expansion adapter kit designed for the UniStream automation platform. It enables UniStream controllers and modular HMIs to connect additional Uni-I/O modules located in remote sections of a control system, making it ideal for large machinery, distributed automation systems and multi-cabinet installations.
As part of the advanced Unitronics UniStream expansion adapter range, the UAG-XKPL1500 incorporates an integrated power supply, allowing significantly greater I/O expansion capacity compared to non-powered adapters. The long-range communication architecture allows engineers to position I/O modules further from the controller whilst maintaining reliable data communication and system performance.
Featuring a 15 metre expansion cable, support for up to 16 Uni-I/O modules, and DIN rail mounting capability, the UAG-XKPL1500 provides a scalable and dependable solution for demanding industrial automation applications. Its integrated power supply operates from a 12 V DC or 24 V DC source, ensuring reliable operation across large automation systems.
Key Advantages
- Long-range I/O expansion for distributed automation systems.
- 15 metre communication cable for multi-cabinet installations.
- Integrated power supply supports additional expansion modules.
- Supports up to 16 Uni-I/O modules.
- Compatible with UniStream PLC and modular HMI systems.
- Ideal for large control panels and machine installations.
- Supports daisy-chaining of local expansion adapters.
- Reliable communication via industrial RJ45 connections.
Key Features
- Unitronics UniStream long-range expansion adapter kit.
- Model: UAG-XKPL1500.
- Integrated power supply.
- 1500 cm (15 m) expansion cable.
- Long-range local I/O expansion capability.
- Supports up to 16 Uni-I/O modules.
- Dual RJ45 communication connections.
- DIN rail mounting design.
- Power and Link LED status indicators.
- Suitable for distributed I/O architectures.
Reliable Distributed I/O Expansion for Large Systems
The UAG-XKPL1500 enables UniStream controllers to communicate with remote rows of Uni-I/O modules positioned up to 15 metres away. This provides automation engineers with the flexibility to design larger control systems spanning multiple cabinets, machine sections or production areas without compromising communication reliability.
Its integrated power supply supports up to 16 connected Uni-I/O modules independently of any modules connected directly to the controller. Up to five compatible local expansion adapters can be daisy-chained together, helping create highly scalable automation architectures for demanding industrial applications.
Typical Applications
- Distributed industrial automation systems.
- Remote I/O installations.
- Multi-cabinet control systems.
- Machine building and OEM equipment.
- Manufacturing production lines.
- Material handling systems.
- Infrastructure and utilities automation.
- Large-scale UniStream automation projects.
