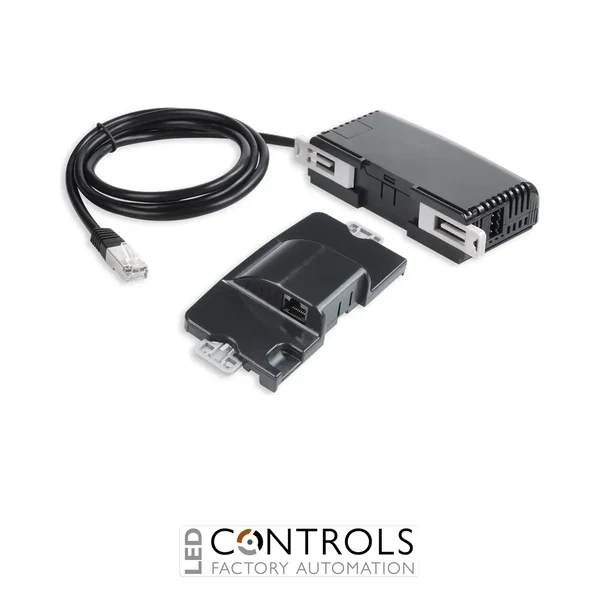

Why Choose the Unitronics UAG-XKPL2000 Long-Range Expansion Adapter Kit?
The Unitronics UAG-XKPL2000 is a professional long-range local I/O expansion adapter kit designed for the UniStream automation platform. It enables UniStream controllers and modular HMIs to communicate with remote Uni-I/O modules installed in separate control cabinets or machine sections, providing exceptional flexibility for large-scale automation projects.
As part of the advanced Unitronics UniStream expansion adapter series, the UAG-XKPL2000 features an integrated power supply that supports a greater number of expansion modules than standard adapters. This allows machine builders and automation engineers to create scalable distributed I/O architectures whilst maintaining reliable communication and simplified system design.
With a 20 metre expansion cable, support for up to 16 Uni-I/O modules, and DIN rail mounting capability, the UAG-XKPL2000 is ideal for extending automation systems across multiple control cabinets. The integrated power supply operates from a 12 V DC or 24 V DC source, ensuring dependable operation in demanding industrial environments.
Key Advantages
- Long-range expansion capability for distributed automation systems.
- 20 metre communication cable for inter-cabinet installations.
- Integrated power supply for enhanced I/O capacity.
- Supports up to 16 Uni-I/O modules.
- Compatible with UniStream PLC and HMI platforms.
- DIN rail mounting for straightforward installation.
- Supports daisy-chaining of expansion adapters.
- Ideal for large industrial machinery and process automation systems.
Key Features
- Unitronics UniStream long-range expansion adapter kit.
- Model: UAG-XKPL2000.
- Integrated power supply.
- 2000 cm (20 m) expansion cable.
- Long-range local I/O expansion capability.
- Supports up to 16 Uni-I/O modules.
- Dual RJ45 communication connections.
- Power and Link LED status indicators.
- DIN rail mounting design.
- Suitable for distributed I/O installations.
Extend UniStream Systems Across Large Installations
The UAG-XKPL2000 allows automation engineers to position Uni-I/O modules up to 20 metres from the controller, making it ideal for large machinery, process systems and multi-cabinet installations. The adapter provides reliable communication between controllers and remote I/O whilst reducing wiring complexity and improving cabinet organisation.
Its integrated power supply independently supports up to 16 Uni-I/O modules, regardless of modules connected directly to the controller. Up to five compatible local expansion adapters may be daisy-chained together, enabling highly scalable distributed I/O architectures for complex automation applications.
Typical Applications
- Large industrial automation systems.
- Distributed I/O architectures.
- Multi-cabinet control systems.
- Machine building and OEM equipment.
- Manufacturing production lines.
- Material handling systems.
- Water and wastewater automation.
- Infrastructure and utilities control systems.
