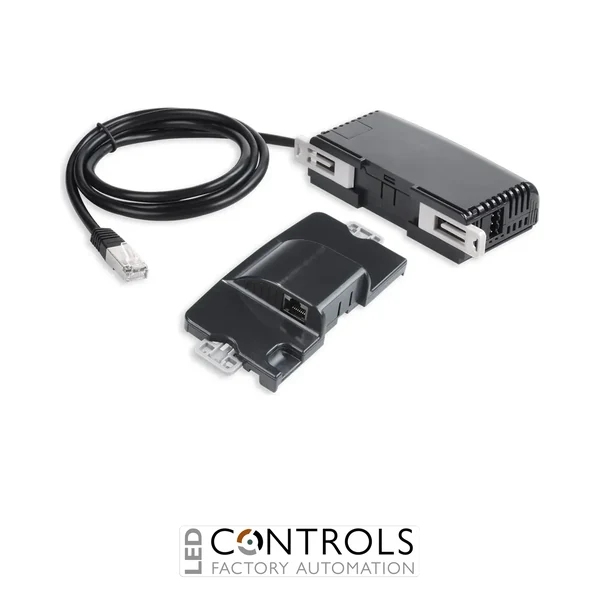

Why Choose the Unitronics UAG-XKPL3000 Long-Range Expansion Adapter Kit?
The Unitronics UAG-XKPL3000 is a professional-grade long-range local I/O expansion adapter kit developed for the UniStream automation platform. It enables UniStream controllers and modular HMIs to connect remote Uni-I/O modules installed in separate control cabinets, machinery sections or production areas, providing exceptional flexibility for large-scale industrial automation systems.
As part of the advanced Unitronics UniStream expansion adapter range, the UAG-XKPL3000 incorporates an integrated power supply that allows significantly greater I/O expansion capacity than standard non-powered adapters. This enables machine builders and automation engineers to design scalable distributed I/O architectures whilst maintaining reliable communication and simplified wiring across extended distances.
Featuring a 30 metre expansion cable, support for up to 16 Uni-I/O modules, and DIN rail mounting capability, the UAG-XKPL3000 is ideally suited for large machinery, distributed automation systems and multi-cabinet installations. The integrated power supply operates from a 12 V DC or 24 V DC source, ensuring dependable performance in demanding industrial environments.
Key Advantages
- Long-range expansion capability for distributed automation systems.
- 30 metre communication cable for inter-cabinet installations.
- Integrated power supply for enhanced I/O capacity.
- Supports up to 16 Uni-I/O modules.
- Compatible with UniStream PLC and modular HMI platforms.
- Reduces wiring complexity across large installations.
- Supports daisy-chaining of expansion adapters.
- Ideal for industrial machinery and process automation systems.
Key Features
- Unitronics UniStream long-range expansion adapter kit.
- Model: UAG-XKPL3000.
- Integrated power supply.
- 3000 cm (30 m) expansion cable.
- Long-range local I/O expansion capability.
- Supports up to 16 Uni-I/O modules.
- Dual RJ45 communication connectors.
- Power and Link LED status indicators.
- DIN rail mounting design.
- Supports scalable distributed I/O architectures.
Extend UniStream Systems Across Large Facilities
The UAG-XKPL3000 enables UniStream controllers to communicate with remote Uni-I/O modules located up to 30 metres away. This makes it ideal for large production lines, distributed machine installations and automation systems spanning multiple control cabinets. The long-range architecture simplifies installation while maintaining reliable communication between controllers and connected I/O modules.
Its integrated power supply independently supports up to 16 Uni-I/O modules, regardless of modules connected directly to the controller. Up to five compatible local expansion adapters can be daisy-chained together, enabling highly scalable distributed I/O systems for demanding industrial applications.
Typical Applications
- Large industrial automation systems.
- Distributed I/O architectures.
- Multi-cabinet control systems.
- Machine building and OEM equipment.
- Manufacturing production lines.
- Material handling systems.
- Infrastructure and utilities automation.
- Process control installations.
