Why Choose the Unitronics UMI-S0013 Resolver Encoder PG Communication Card?

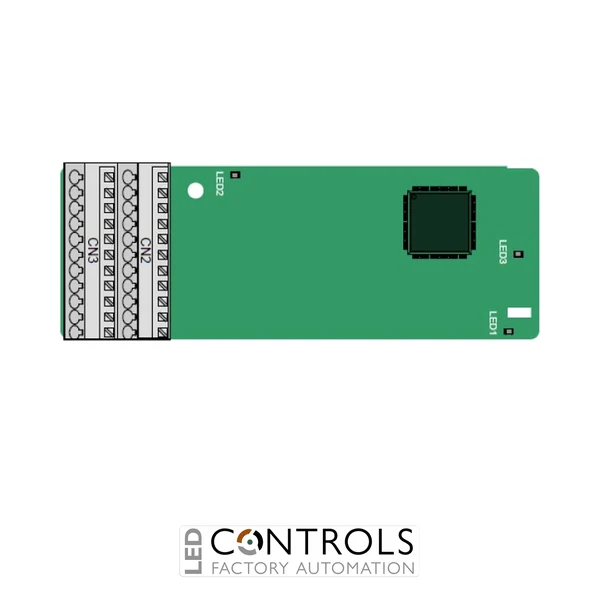

The Unitronics UMI-S0013 is a specialised resolver encoder PG communication card designed for use with compatible Unitronics B7 series variable frequency drives. It enables precise resolver feedback communication, allowing the drive to accurately monitor motor position and speed in demanding motion control applications.
Resolver feedback technology is widely used in industrial automation because it provides highly reliable position information even in harsh operating environments where vibration, electrical noise and temperature fluctuations can affect conventional encoder systems. The UMI-S0013 integrates this capability directly into the drive platform, improving control accuracy and overall machine performance.
Designed for OEM machine builders, automation engineers and system integrators, the UMI-S0013 expands the functionality of Unitronics B7 drives by enabling resolver-based closed-loop motor control. This helps improve positioning precision, speed regulation and dynamic response in advanced industrial applications.
Key Advantages
- Dedicated resolver encoder PG communication card.
- Designed specifically for Unitronics B7 series VFDs.
- Provides accurate motor position and speed feedback.
- Improves precision in motion control applications.
- Supports reliable operation in harsh industrial environments.
- Enhances closed-loop motor control performance.
- Simple plug-in installation within compatible drives.
Key Features
- Resolver encoder feedback interface.
- Compatible with Unitronics B7 series variable frequency drives.
- Pulse Generator (PG) communication functionality.
- Supports precise speed and position monitoring.
- Enhances closed-loop motor control accuracy.
- Industrial-grade communication module.
- Compact plug-in design.
- Suitable for demanding automation environments.
- Designed for motion control applications.
Accurate Resolver Feedback for Advanced Motion Control
The Unitronics UMI-S0013 allows compatible B7 drives to receive accurate resolver feedback from the motor. This enables continuous monitoring of motor speed and position, providing improved control performance compared with standard open-loop systems. Resolver technology is particularly valued in industrial applications where reliability and environmental resistance are critical.
By incorporating resolver-based feedback directly into the drive system, engineers can achieve improved positioning accuracy, better speed regulation and enhanced process consistency. This makes the UMI-S0013 ideal for high-performance automation systems requiring dependable closed-loop motor control.
Typical Applications
- Closed-loop motor control systems.
- Industrial motion control applications.
- Automation equipment requiring resolver feedback.
- High-precision motor speed monitoring.
- Position control systems.
- Machine building and OEM equipment.
- Advanced industrial automation machinery.
