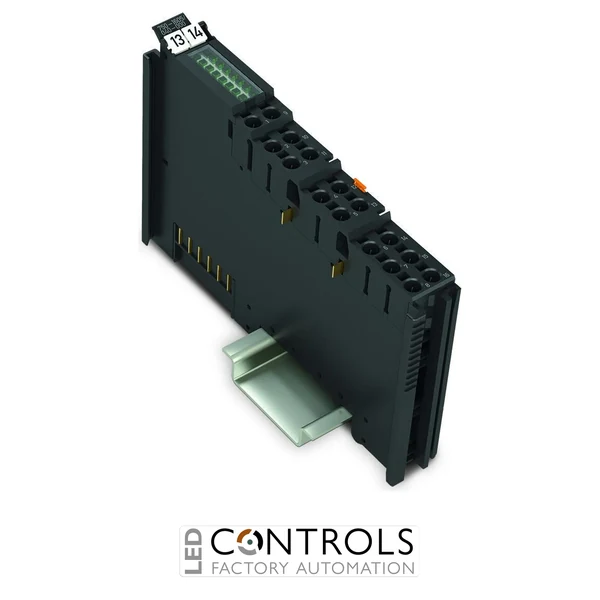

WAGO 750-1605/040-000 potential distribution module providing 16-way 24 V DC power distribution for WAGO I/O System 750 XTR automation platforms.
£52.15
The WAGO 750-1605/040-000 is a 16-way potential distribution module designed for the WAGO I/O System 750 XTR. It distributes 24 V DC field potential across multiple input channels, allowing efficient power distribution to sensors and digital input modules within industrial automation systems.
Instead of using additional DIN rail terminal blocks, the module multiplies the 24 V supply potential internally and distributes it across sixteen field connections. This simplifies wiring layouts and reduces cabinet space requirements in PLC control panels.
The module connects directly to neighbouring WAGO I/O modules via integrated power jumper contacts, automatically passing the supply potential to downstream modules when the system is assembled on the DIN rail. This design helps streamline installation and maintain reliable power distribution throughout the automation system. :contentReference
In distributed automation systems, efficient power distribution is essential for supplying sensors and input modules throughout the control architecture. Potential distribution modules such as the WAGO 750-1605/040-000 simplify wiring by providing multiple 24 V supply points from a single source.
By distributing power directly within the modular I/O system, automation engineers can reduce cabinet wiring complexity and eliminate additional terminal blocks while maintaining reliable power delivery across PLC input modules. :contentReference
| Current | 10 A |
|---|---|
| Voltage | 624 V |
| IP Rating | IP20 |
| Series | I/O System 750 XTR |
| Module type | Potential distribution module |
| Distribution channels | 16 |
| Nominal voltage | 24 V DC |
| Current rating | up to approx. 10 A |
| Connection technology | Push-in CAGE CLAMP® terminals |
| Wire cross section | approx. 0.25 → 1.5 mm² |
| Mounting | DIN rail (EN 60715) |
| Ingress protection | IP20 |
| Operating temperature | approx. −40 °C to +70 °C |
| Housing colour | Dark grey |
| Application | 24 V potential multiplication and distribution for field devices |
| HS Code | 85389091 |
| Country of Manufacture | Germany |
It distributes a 24 V DC potential across sixteen terminals, supplying power to multiple sensors or digital input channels within a WAGO I/O system.
No. The module is used purely for potential distribution. It distributes the supply voltage but does not process input or output signals.
The module is designed for the WAGO I/O System 750 XTR distributed automation platform.
The module distributes the 24 V potential via sixteen Push-in CAGE CLAMP® connections, while the 0 V potential passes through internally.
It simplifies panel wiring by distributing supply voltage directly within the modular I/O system, reducing the need for separate DIN rail terminal blocks.
WAGO I/O System 750 modules are widely used by machine builders and system integrators to create flexible, reliable distributed automation systems across industrial facilities.
