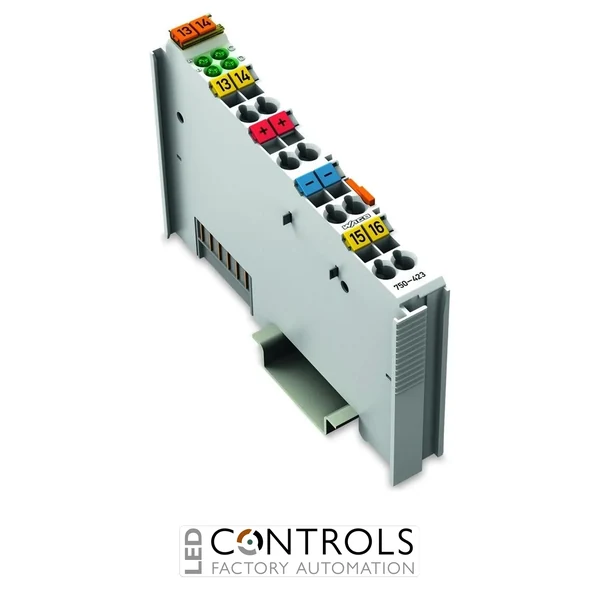

Why Choose the WAGO 750-423 4-Channel Digital Input Module?
The WAGO 750-423 is a robust 4-channel digital input module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to monitor 24 V AC/DC digital signals from field devices such as sensors, switches and control contacts, enabling reliable status detection across automation systems.
This module captures digital signals from connected field devices and transfers their state to a WAGO fieldbus coupler or programmable controller. Each channel incorporates a noise-rejection input filter to improve signal stability and ensure accurate detection in electrically demanding environments. :contentReference
Designed for modular automation architectures, the module features power jumper contacts that simplify system wiring and distribution of supply voltage between modules. The use of WAGO CAGE CLAMP® spring connection technology ensures vibration-resistant wiring and fast installation within control cabinets. :contentReference
Key Advantages
- Reliable 4-channel digital input interface for industrial automation.
- Supports 24 V AC/DC digital signals from sensors and switches.
- Integrated noise-rejection filter improves signal stability.
- Power jumper contacts simplify wiring between modules.
- CAGE CLAMP® spring terminals provide secure maintenance-free wiring.
- Compact DIN rail module suitable for distributed I/O systems.
Key Features
- 4 digital input channels.
- 24 V AC/DC signal voltage.
- High-side switching input characteristic.
- 50 ms digital input filter.
- Supports 2-wire and 3-wire sensor connections.
- LED indicators for each channel status.
- Power jumper contacts for supply distribution.
- DIN rail mounted modular design.
Industrial Digital Signal Monitoring
Digital input modules provide the essential interface between field devices and industrial control systems. They convert electrical signals from sensors, push buttons and machine contacts into digital process data that PLCs and automation controllers use to manage equipment and processes.
The modular architecture of the WAGO 750 Series enables distributed automation networks that can expand easily as new machines and sensors are added. Engineers can build scalable control systems while reducing wiring complexity across production environments.
Typical Applications
- Monitoring proximity sensors and limit switches.
- PLC signal acquisition in industrial machinery.
- Status detection for machine contacts and push buttons.
- Distributed I/O networks for factory automation.
- Industrial infrastructure and building automation.
