Why Choose the WAGO 750-430/025-000 8-Channel Digital Input Module?

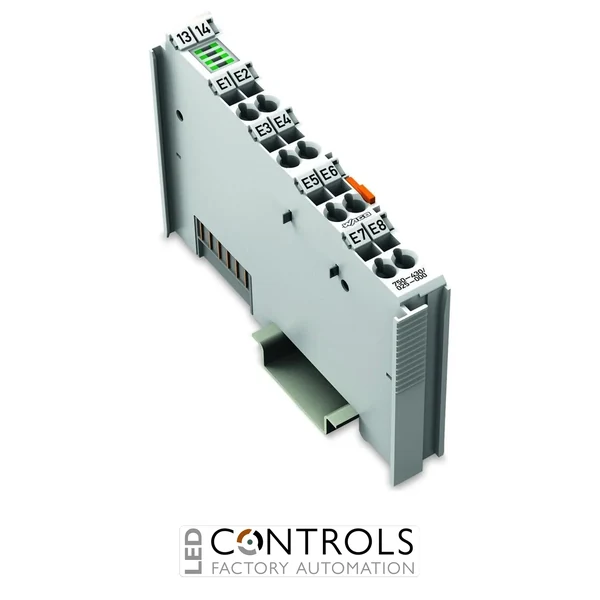

The WAGO 750-430/025-000 is a high-density 8-channel digital input module designed for the WAGO I/O System 750. It enables PLCs and industrial controllers to monitor 24 V DC digital signals from sensors, switches and other field devices, providing reliable signal acquisition for distributed automation systems.
Each module receives digital signals from field devices and transmits their switching state to a connected WAGO fieldbus coupler or programmable controller. The module integrates a 3 ms noise-rejection filter to prevent electrical interference or transient spikes from causing false switching signals. :contentReference
With eight digital inputs within a slim 12 mm DIN rail housing, the module provides excellent channel density while minimising cabinet space. The design also includes electrical isolation between field and system levels to improve operational safety and signal integrity in industrial environments. :contentReference
Key Advantages
- High-density 8-channel digital input module.
- Supports standard 24 V DC industrial control signals.
- 3 ms noise-rejection filter ensures stable signal detection.
- High-side switching input configuration for sensor connections.
- CAGE CLAMP® spring terminals provide secure maintenance-free wiring.
- Extended temperature version suitable for demanding industrial environments.
Key Features
- 8 digital input channels.
- 24 V DC signal voltage.
- 3 ms digital input filter.
- High-side switching input characteristic.
- Supports 1-conductor sensor connections.
- LED indicators for channel status.
- Power jumper contacts for supply distribution.
- DIN rail mounted modular design.
Industrial Digital Signal Monitoring
Digital input modules form the essential interface between field devices and industrial control systems. They convert electrical signals from sensors, push buttons and machine contacts into digital data that PLCs and automation controllers use to monitor equipment and manage production processes.
The modular architecture of the WAGO 750 Series enables distributed automation networks that can scale easily. Engineers can expand I/O capacity by adding additional modules, enabling flexible system design and reduced wiring complexity across manufacturing environments.
Typical Applications
- Monitoring proximity sensors and limit switches.
- PLC signal acquisition in industrial machinery.
- Machine status monitoring on production lines.
- Distributed I/O systems for factory automation.
- Industrial infrastructure and facility automation.
