Why Choose the WAGO 750-437 8-Channel Digital Input Module?

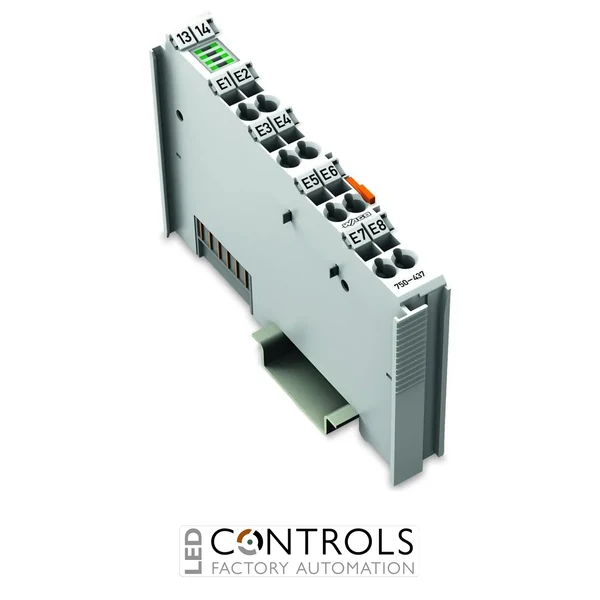

The WAGO 750-437 is a compact 8-channel digital input module designed for the WAGO I/O System 750. It enables PLCs and industrial controllers to monitor 24 V DC digital signals from sensors, switches and machine contacts, providing high-speed signal acquisition for distributed automation systems.
Each channel receives signals from field devices and converts them into digital process data for a connected WAGO fieldbus coupler or programmable controller. The module features an extremely fast 0.2 ms input filter, allowing it to detect rapid switching signals and short pulses that are common in high-speed automation applications. :contentReference
The module provides low-side switching input characteristics and supports single-conductor sensor wiring. With eight digital inputs in a slim 12 mm DIN rail housing, it delivers high channel density while minimising control cabinet space. Electrical isolation between field and system levels ensures reliable operation in industrial environments. :contentReference
Key Advantages
- High-density 8-channel digital input module.
- Supports standard 24 V DC industrial control signals.
- Ultra-fast 0.2 ms input filter for high-speed signal detection.
- Low-side switching input configuration.
- CAGE CLAMP® spring terminals provide secure maintenance-free wiring.
- Compact DIN rail design ideal for distributed I/O installations.
Key Features
- 8 digital input channels.
- 24 V DC signal voltage.
- 0.2 ms digital input filter.
- Low-side switching input characteristic.
- Supports 1-conductor sensor connections.
- LED indicators for channel status.
- Power jumper contacts for field supply distribution.
- DIN rail mounted modular design.
High-Speed Digital Signal Monitoring
Industrial automation systems often require rapid signal detection when monitoring sensors, encoders and machine status contacts. Digital input modules with extremely short filtering times allow PLCs to capture fast signal transitions that could otherwise be missed by slower input modules.
The modular WAGO 750 Series I/O platform allows engineers to build scalable distributed automation systems. Additional I/O modules can be added easily as systems expand, enabling flexible control architectures while reducing wiring complexity across production environments.
Typical Applications
- High-speed sensor monitoring.
- PLC signal acquisition in automated machinery.
- Detection of fast switching machine signals.
- Distributed I/O systems for factory automation.
- Production line monitoring and machine status detection.
