Why Choose the WAGO 750-457 4-Channel Analog Input Module?

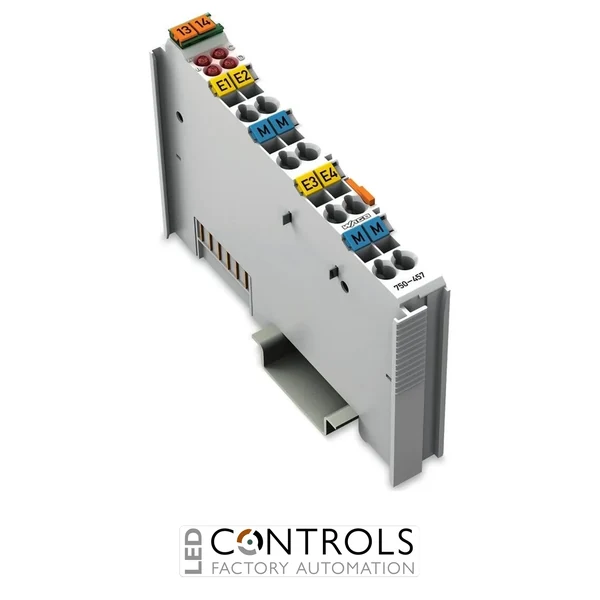

The WAGO 750-457 is a high-precision 4-channel analog input module designed for the WAGO I/O System 750. It enables PLCs and industrial automation controllers to measure standard −10 V to +10 V DC analog voltage signals from sensors, transmitters and instrumentation devices, converting them into digital process data for monitoring and control.
Each input channel processes voltage signals using a single-ended input configuration. The module provides 12-bit resolution for accurate measurement while maintaining reliable electrical isolation between the system bus and field wiring. This ensures dependable signal acquisition even in demanding industrial environments. :contentReference
Designed for compact control cabinets, the module fits within a slim 12 mm DIN rail housing and uses WAGO’s proven CAGE CLAMP® spring terminals. This allows fast installation, secure vibration-resistant wiring and high channel density within distributed automation systems.
Key Advantages
- Reliable 4-channel analog voltage input module.
- Processes standard ±10 V DC analog signals.
- 12-bit measurement resolution for accurate data acquisition.
- Electrical isolation between field and system levels.
- Compact DIN rail design ideal for distributed automation.
- Fully compatible with WAGO I/O System 750 controllers and couplers.
Key Features
- 4 analog voltage input channels.
- Voltage input range: −10 V to +10 V DC.
- Single-ended signal input configuration.
- 12-bit resolution.
- Typical conversion time: approx. 10 ms.
- Electrical isolation between system and field.
- LED indicators for module diagnostics.
- DIN rail mounted modular design.
Industrial Voltage Signal Monitoring
Voltage signals such as ±10 V DC are widely used in industrial automation systems to transmit measurement data from sensors, actuators and control devices. These signals are common in motion control, process instrumentation and industrial measurement systems.
The WAGO 750-457 converts analog voltage signals into digital process values that PLCs and controllers can analyse in real time. This enables automation systems to monitor and control equipment with high accuracy while maintaining reliable system performance. :contentReference
Typical Applications
- Monitoring ±10 V analog signals from industrial sensors.
- Integration of voltage-based measurement devices.
- Process automation and instrumentation systems.
- Motion control and machine monitoring.
- Industrial manufacturing and control systems.
