Wago 750-460/000-005 4-channel analog input; For Ni1000/RTD resistance sensors

Q: How many sensors can be connected?

The module provides four independent analogue input channels, allowing up to four RTD sensors to be monitored simultaneously.

Q: Which sensor type is supported?

This version is designed for Ni1000 resistance temperature detectors (RTDs).

Q: How are sensors wired to the module?

The module supports 2-wire RTD sensor connections using WAGO CAGE CLAMP® terminals.

Q: Which systems is the module compatible with?

The module is designed for the WAGO 750 Series I/O System and integrates with WAGO fieldbus couplers and programmable controllers.

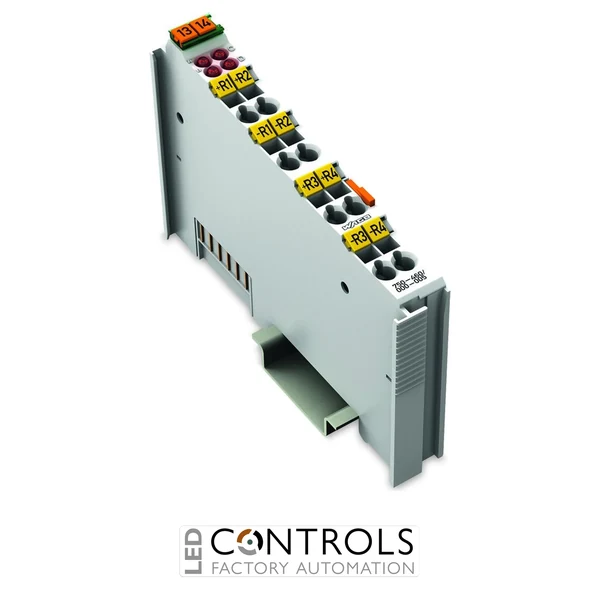

WAGO 750-460/000-005 analogue input module with four channels for Ni1000 RTD resistance temperature sensors used in WAGO 750 Series distributed I/O systems.

SKU: 750-460/000-005Alt SKU: 750460000005MPN: 750-460/000-005

List Price £340.15 ex VAT

Your Price (ex VAT)

£340.15

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £340.15

Trade pricing is personalised to your account

Manufacturer Lead Time

£340.15

Why Choose the WAGO 750-460/000-005 4-Channel RTD Input Module?

The WAGO 750-460/000-005 is a precision 4-channel analogue temperature input module designed for the WAGO 750 Series distributed I/O system. It enables direct connection of Ni1000 resistance temperature detectors (RTDs), converting sensor resistance values into digital data for PLC and industrial control systems.

Each input channel supports 2-wire RTD sensors and the module automatically performs temperature linearisation across the full measurement range. Integrated diagnostics detect sensor faults such as short circuits, line breaks or measurement range errors and signal them via status LEDs. :contentReference

With its compact DIN-rail design and seamless compatibility with WAGO fieldbus couplers and controllers, the 750-460/000-005 provides reliable temperature monitoring for industrial processes, machinery, energy systems and building automation installations.

Key Advantages

Reliable 4-channel RTD temperature acquisition for automation systems.
Direct connection for Ni1000 resistance temperature sensors.
Automatic temperature linearisation for accurate measurements.
Sensor diagnostics with LED indication for fault detection.
Designed for the modular WAGO 750 Series I/O platform.
Compact DIN rail module ideal for high-density control cabinets.

Key Features

4 analogue temperature input channels.
Supports Ni1000 RTD resistance sensors.
2-wire sensor connection.
16-bit measurement data with high accuracy.
Approx. 0.1 °C measurement resolution.
Typical conversion time ≤ 250 ms.
CAGE CLAMP® spring terminals for secure wiring.
Compatible with WAGO 750 Series fieldbus couplers and controllers.

Industrial Temperature Monitoring

Temperature measurement is critical in many automation processes including manufacturing, energy systems and environmental monitoring. Resistance temperature detectors such as Ni1000 RTDs provide stable, repeatable measurements across industrial operating ranges.

The WAGO 750-460/000-005 converts these resistance values into digital process data for PLCs and controllers, enabling precise monitoring and closed-loop control across distributed automation networks. :contentReference

Typical Applications

Industrial temperature monitoring using Ni1000 RTD sensors.
Machine condition monitoring and protection systems.
Process automation in manufacturing plants.
HVAC and building management systems.
Energy, environmental and utility monitoring.

Technical Specifications

Tick the specs you need, then view products that match.

Number of I/O	4
Device Type	Analogue I/O Module
Signal Type / Function	Analogue, Temperature (RTD/TC)
Product Series	WAGO I/O System 750
IP Rating	IP20
Series	WAGO 750 Series I/O System
Module type	Analogue temperature input module
Number of inputs	4
Sensor type	Ni1000 RTD (TK6180)
Connection method	2-wire sensor connection
Measurement range	approx. −60 °C to +250 °C
Resolution	approx. 0.1 °C
Conversion time	≤ 250 ms typical
Measurement accuracy	approx. ±0.2 % of full scale
System supply voltage	5 V DC via data contacts
Current consumption	approx. 65 mA
Connection technology	8 × CAGE CLAMP® terminals
Mounting	DIN rail (EN 60715)
Operating temperature	0 °C to +55 °C
Protection rating	IP20
Dimensions	approx. 12 × 100 × 69.8 mm
HS Code	85389099
Country of Manufacture	Germany

Frequently Asked Questions

What does the WAGO 750-460/000-005 module measure?

The module measures temperature using Ni1000 RTD sensors and converts the resistance signal into digital data for PLC and automation systems.

How many sensors can be connected?

The module provides four independent analogue input channels, allowing up to four RTD sensors to be monitored simultaneously.

Which sensor type is supported?

This version is designed for Ni1000 resistance temperature detectors (RTDs).

How are sensors wired to the module?

The module supports 2-wire RTD sensor connections using WAGO CAGE CLAMP® terminals.

Which systems is the module compatible with?

The module is designed for the WAGO 750 Series I/O System and integrates with WAGO fieldbus couplers and programmable controllers.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are widely trusted by automation engineers and system integrators to build reliable distributed control systems across industrial and building automation environments.

Number of I/O	4
Device Type	Analogue I/O Module
Signal Type / Function	Analogue, Temperature (RTD/TC)
Product Series	WAGO I/O System 750
IP Rating	IP20
Series	WAGO 750 Series I/O System
Module type	Analogue temperature input module
Number of inputs	4
Sensor type	Ni1000 RTD (TK6180)
Connection method	2-wire sensor connection
Measurement range	approx. −60 °C to +250 °C
Resolution	approx. 0.1 °C
Conversion time	≤ 250 ms typical
Measurement accuracy	approx. ±0.2 % of full scale
System supply voltage	5 V DC via data contacts
Current consumption	approx. 65 mA
Connection technology	8 × CAGE CLAMP® terminals
Mounting	DIN rail (EN 60715)
Operating temperature	0 °C to +55 °C
Protection rating	IP20
Dimensions	approx. 12 × 100 × 69.8 mm
HS Code	85389099
Country of Manufacture	Germany
