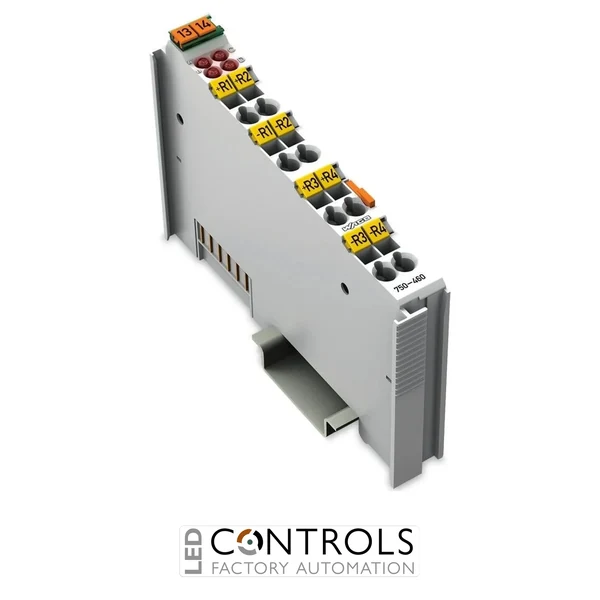

Wago 750-460 4Ai, Pt100/Rtd

Q: How many sensors can be connected?

The module provides four independent RTD input channels, allowing four temperature sensors to be monitored simultaneously.

Q: Which RTD sensors are supported?

The module is designed primarily for Pt100 resistance temperature detectors, commonly used in industrial temperature measurement.

Q: How are the sensors connected?

The module supports 2-wire RTD sensor connections, simplifying installation in many automation systems.

Q: Which systems is the module compatible with?

The WAGO 750-460 is designed for the WAGO 750 Series I/O System and works with WAGO fieldbus couplers and programmable controllers.

WAGO 750-460 analogue input module with four channels for Pt100 RTD temperature sensors used in WAGO 750 Series distributed I/O systems.

SKU: 750-460Alt SKU: 750460MPN: 750-460

List Price £340.15 ex VAT

Your Price (ex VAT)

£340.15

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £340.15

Trade pricing is personalised to your account

Manufacturer Lead Time

£340.15

Why Choose the WAGO 750-460 4-Channel RTD Temperature Input Module?

The WAGO 750-460 is a high-precision 4-channel analogue input module for RTD temperature sensors designed for use within the WAGO 750 Series I/O System. It enables direct connection of Pt100 resistance temperature detectors, allowing industrial control systems to measure and monitor temperature signals with excellent accuracy.

Each of the four channels supports two-wire RTD sensors, making the module ideal for temperature monitoring across process plants, machinery and building automation systems. The module automatically linearises the measured values and transmits the digitised data to the controller via the WAGO I/O backplane. :contentReference

Designed for distributed automation architectures, the 750-460 integrates seamlessly with WAGO fieldbus couplers and controllers, providing reliable temperature acquisition for industrial processes, energy systems and environmental monitoring.

Key Advantages

Reliable 4-channel temperature measurement using RTD sensors.
Direct connection of Pt100 resistance temperature detectors.
Automatic temperature linearisation across the full measuring range.
Diagnostic monitoring with LED indication for sensor errors.
Compact design for WAGO 750 Series modular I/O systems.
High accuracy suitable for industrial process monitoring.

Key Features

4 analogue input channels.
Supports Pt100 RTD temperature sensors.
2-wire sensor connection configuration.
Automatic temperature linearisation.
16-bit measurement resolution.
Typical conversion time around 250 ms.
CAGE CLAMP® spring terminals for reliable wiring.
Designed for DIN rail installation in control cabinets.

Industrial Temperature Monitoring

Accurate temperature measurement is essential in industrial automation, process control and building management systems. RTD sensors such as Pt100 devices are widely used because they provide stable and precise temperature readings across a wide measurement range.

Modules like the WAGO 750-460 enable distributed temperature monitoring across machinery, production lines and process installations by converting analogue RTD signals into digital data for PLCs and industrial controllers. :contentReference

Typical Applications

Temperature monitoring using Pt100 RTD sensors.
Industrial process control systems.
Machine condition monitoring and protection.
HVAC and building management systems.
Energy, water treatment and environmental monitoring installations.

Technical Specifications

Tick the specs you need, then view products that match.

Signal / Input Range	Pt100
Product Series	WAGO I/O System 750
Device Type	Analogue I/O Module
Signal Type / Function	Analogue, Temperature (RTD/TC)
Number of I/O	4
IP Rating	IP20
Series	WAGO 750 Series I/O System
Module type	Analogue temperature input module
Number of inputs	4
Sensor type	Pt100 RTD
Connection method	2-wire sensor connection
Signal type	Resistance measurement
Resolution	approx. 0.1 °C
Measurement range	approx. −200 °C to +850 °C
Conversion time	approx. 250 ms
Data width	16-bit measurement data
Supply voltage	5 V DC via system data contacts
Mounting	DIN rail (EN 60715)
Protection rating	IP20
Operating temperature	approx. 0 °C to +55 °C
Connection technology	WAGO CAGE CLAMP® terminals
HS Code	85389099
Country of Manufacture	Germany

Frequently Asked Questions

What does the WAGO 750-460 module measure?

The module measures temperature signals from RTD sensors such as Pt100 devices and converts them into digital values for PLC and automation systems.

How many sensors can be connected?

The module provides four independent RTD input channels, allowing four temperature sensors to be monitored simultaneously.

Which RTD sensors are supported?

The module is designed primarily for Pt100 resistance temperature detectors, commonly used in industrial temperature measurement.

How are the sensors connected?

The module supports 2-wire RTD sensor connections, simplifying installation in many automation systems.

Which systems is the module compatible with?

The WAGO 750-460 is designed for the WAGO 750 Series I/O System and works with WAGO fieldbus couplers and programmable controllers.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are widely used by system integrators and automation engineers to build reliable distributed control systems across manufacturing, process and building automation environments.

Signal / Input Range	Pt100
Product Series	WAGO I/O System 750
Device Type	Analogue I/O Module
Signal Type / Function	Analogue, Temperature (RTD/TC)
Number of I/O	4
IP Rating	IP20
Series	WAGO 750 Series I/O System
Module type	Analogue temperature input module
Number of inputs	4
Sensor type	Pt100 RTD
Connection method	2-wire sensor connection
Signal type	Resistance measurement
Resolution	approx. 0.1 °C
Measurement range	approx. −200 °C to +850 °C
Conversion time	approx. 250 ms
Data width	16-bit measurement data
Supply voltage	5 V DC via system data contacts
Mounting	DIN rail (EN 60715)
Protection rating	IP20
Operating temperature	approx. 0 °C to +55 °C
Connection technology	WAGO CAGE CLAMP® terminals
HS Code	85389099
Country of Manufacture	Germany
