Why Choose the WAGO 750-463 4-Channel Analogue Input Module?

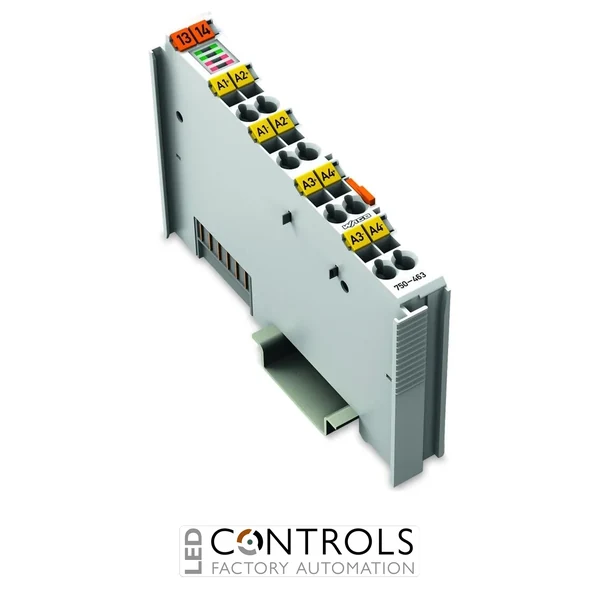

The WAGO 750-463 is a precision 4-channel analogue input module designed for integration within the WAGO 750 Series distributed I/O system. It allows industrial automation controllers and PLCs to acquire voltage signals from field sensors and transmitters, converting them into digital values for monitoring and control applications.
The module supports ±10 V analogue input signals, making it suitable for a wide range of industrial measurement tasks including position sensing, process instrumentation and machine monitoring. Each channel provides accurate signal conversion and reliable data transmission through the WAGO I/O backplane.
With seamless compatibility with WAGO fieldbus couplers and programmable controllers, the 750-463 enables flexible distributed I/O architectures used across manufacturing systems, energy infrastructure and building automation networks.
Key Advantages
- Reliable 4-channel analogue voltage measurement.
- Supports ±10 V analogue input signals.
- High-resolution signal conversion for accurate process monitoring.
- Compact module for WAGO 750 Series distributed I/O systems.
- Fast integration with WAGO controllers and fieldbus couplers.
- Ideal for industrial instrumentation and machine control.
Key Features
- 4 analogue voltage input channels.
- ±10 V signal range.
- High-resolution analogue-to-digital conversion.
- Integrated signal conditioning.
- Status LEDs for module diagnostics.
- CAGE CLAMP® spring terminals for secure wiring.
- Compatible with WAGO 750 Series fieldbus couplers and controllers.
Industrial Analogue Signal Acquisition
Voltage-based analogue signals are commonly used across industrial automation systems for transmitting process values such as position, level, pressure and machine feedback signals. Accurate signal acquisition is essential for reliable control and monitoring within PLC-based automation environments.
Modules such as the WAGO 750-463 convert analogue sensor outputs into digital data for industrial controllers, enabling distributed monitoring across production machinery, process plants and building automation systems.
Typical Applications
- Monitoring industrial sensors with ±10 V outputs.
- Machine position and displacement sensing.
- Process instrumentation and measurement systems.
- Manufacturing automation and production equipment.
- Building automation and environmental monitoring.
