Why Choose the WAGO 750-470/005-000 RTD Temperature Input Module?

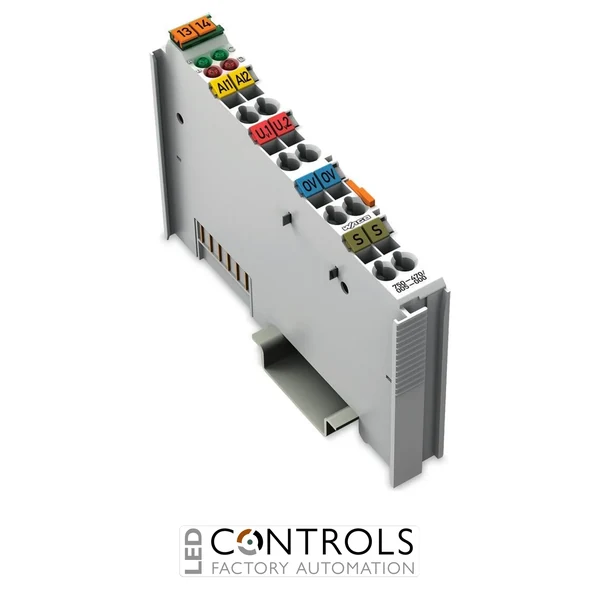

The WAGO 750-470/005-000 is a compact 2-channel RTD temperature input module designed for the WAGO 750 Series distributed I/O system. It enables PLCs and automation controllers to acquire temperature measurements from resistance temperature detectors (RTDs) and convert them into digital values for monitoring, process control and industrial automation.
The module supports widely used Pt100 and Pt1000 temperature sensors and performs accurate resistance measurement with integrated signal conditioning. This ensures reliable temperature monitoring in industrial processes, manufacturing equipment and building automation systems.
Integrated with WAGO fieldbus couplers and programmable controllers, the 750-470/005-000 allows engineers to implement scalable distributed automation architectures for temperature monitoring and process instrumentation.
Key Advantages
- Reliable 2-channel RTD temperature measurement.
- Supports common Pt100 and Pt1000 sensors.
- High-resolution conversion for precise temperature monitoring.
- Compact module designed for WAGO 750 Series distributed I/O systems.
- Easy integration with WAGO fieldbus couplers and controllers.
- Ideal for industrial temperature monitoring and instrumentation.
Key Features
- 2 RTD input channels.
- Compatible with Pt100 and Pt1000 temperature sensors.
- Supports 2-wire and 3-wire RTD connections.
- High-resolution analogue-to-digital conversion.
- Status LEDs for diagnostics and operation indication.
- CAGE CLAMP® spring terminals for secure wiring.
- Compatible with WAGO 750 Series fieldbus couplers and controllers.
Industrial Temperature Measurement
Resistance temperature detectors (RTDs) such as Pt100 and Pt1000 sensors are widely used across industrial automation systems for precise temperature measurement. They provide stable and highly accurate readings across a wide temperature range, making them suitable for process monitoring, machine protection and environmental control.
Modules such as the WAGO 750-470/005-000 convert RTD sensor signals into digital values for PLCs and automation controllers, enabling reliable temperature monitoring and control within distributed industrial automation networks.
Typical Applications
- Industrial temperature monitoring using Pt100 and Pt1000 sensors.
- Machine and equipment temperature protection.
- Manufacturing process instrumentation.
- Energy systems and utilities monitoring.
- Building automation and HVAC systems.
