Why Choose the WAGO 750-482 Analogue Input Module?

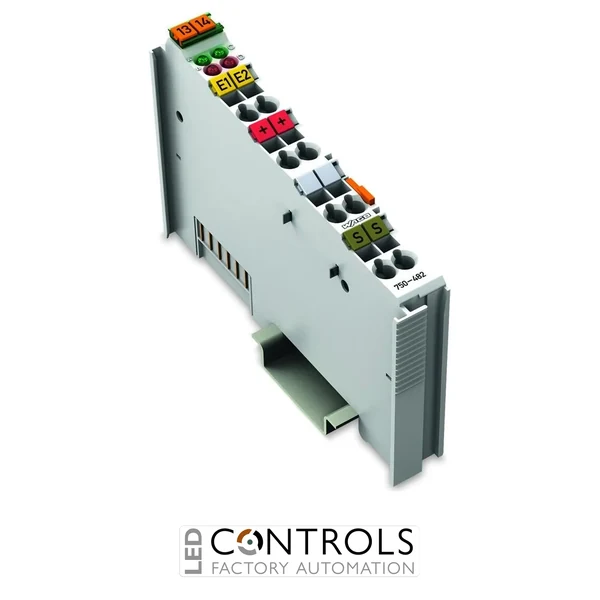

The WAGO 750-482 is a precision 2-channel analogue input module designed for integration with the WAGO 750 Series distributed I/O system. It enables PLCs and industrial automation controllers to capture analogue voltage signals from sensors, transmitters and measurement devices and convert them into digital values for monitoring, diagnostics and process control.
The module supports standard ±10 V analogue voltage signals, making it suitable for a wide range of industrial instrumentation and automation applications. Integrated signal conditioning ensures stable signal acquisition and reliable measurement accuracy across distributed control architectures.
When combined with WAGO fieldbus couplers and programmable controllers, the 750-482 enables scalable automation solutions used in manufacturing equipment, process plants and building automation installations.
Key Advantages
- Reliable 2-channel analogue voltage input.
- Supports ±10 V industrial signal range.
- High-resolution signal conversion for accurate monitoring.
- Compact module designed for WAGO 750 Series distributed I/O systems.
- Seamless integration with WAGO fieldbus couplers and controllers.
- Ideal for sensors, transmitters and industrial instrumentation.
Key Features
- 2 analogue input channels.
- Designed for ±10 V voltage signal inputs.
- High-resolution analogue-to-digital conversion.
- Status LEDs for diagnostics and module operation.
- CAGE CLAMP® spring terminals for secure wiring.
- Compatible with WAGO 750 Series fieldbus couplers and controllers.
Industrial Signal Monitoring
Voltage signals such as ±10 V are widely used in industrial automation systems for transmitting measurement values from sensors and instrumentation devices. These signals are commonly used in motion control systems, industrial monitoring equipment and advanced automation processes.
Modules like the WAGO 750-482 convert analogue voltage signals into digital process values for PLCs and automation controllers, enabling accurate monitoring and control across distributed industrial automation networks.
Typical Applications
- Industrial sensor and transmitter integration.
- Process monitoring and instrumentation systems.
- Manufacturing equipment control.
- Motion control and drive monitoring.
- Building automation and HVAC control systems.
