Why Choose the WAGO 750-483 2-Channel Analogue Output Module?

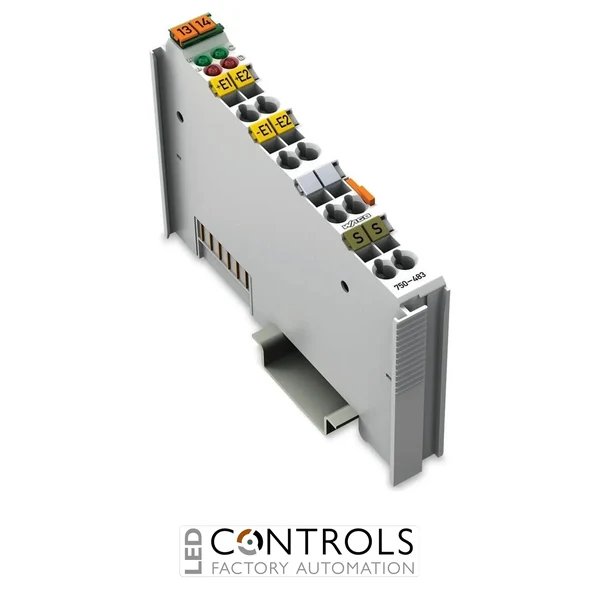

The WAGO 750-483 is a high-performance 2-channel analogue output module designed for the WAGO 750 Series I/O System. It converts digital process values from a PLC or controller into precise analogue signals, enabling reliable control of field devices such as actuators, valves, drives and process instrumentation.
This module provides two independent analogue outputs supporting standard industrial signal ranges such as 0…10 V and ±10 V. The outputs are electrically isolated and deliver accurate signal conversion for demanding industrial automation and process control environments.
Designed for seamless integration with WAGO fieldbus couplers and controllers, the module installs directly onto the DIN-rail mounted WAGO I/O node. Its compact housing, reliable electronics and simple configuration make it ideal for machine builders, panel manufacturers and system integrators building scalable automation systems.
Key Advantages
- Reliable 2-channel analogue voltage output for precise control signals.
- Supports common industrial ranges including 0…10 V and ±10 V.
- Designed for seamless integration with WAGO 750 Series I/O systems.
- Compact modular design for space-efficient DIN rail installations.
- High signal accuracy and stability for industrial control applications.
- Ideal for controlling drives, actuators, valves and process equipment.
Key Features
- 2 analogue voltage output channels.
- Output ranges: 0…10 V and ±10 V.
- Resolution: 12-bit digital to analogue conversion.
- Integrated diagnostics and status indication.
- Internal system power supply via the I/O node.
- Compact DIN-rail mounting module.
- Compatible with the WAGO 750 Series distributed I/O system.
Analogue Signal Control in Industrial Automation
Analogue output modules play a critical role in automation systems by converting digital control signals from PLCs into continuous electrical signals that drive real-world devices. Industrial equipment such as variable speed drives, proportional valves and process regulators rely on stable analogue signals to maintain accurate control.
The WAGO 750 Series I/O platform provides a flexible distributed automation architecture where modules such as the 750-483 analogue output module can be combined with digital and analogue inputs, communication interfaces and specialty modules to build scalable control systems.
Typical Applications
- Industrial process control systems.
- Speed control of variable frequency drives.
- Control of proportional valves and actuators.
- Machine automation and equipment control.
- Distributed I/O systems in manufacturing plants.
